Chapter 4 Parameters|VFD-VL
4-85
07-05
Start-Point for DC Brake
Control
mode
VF VFPG SVC FOCPG
Factory Setting: 0.00
Settings 0.00 to 400.00Hz
This parameter determines the frequency when DC Brake will begin during deceleration. When
the setting is less than start frequency (Pr.01-09), start-point for DC brake will begin from the
min. frequency.

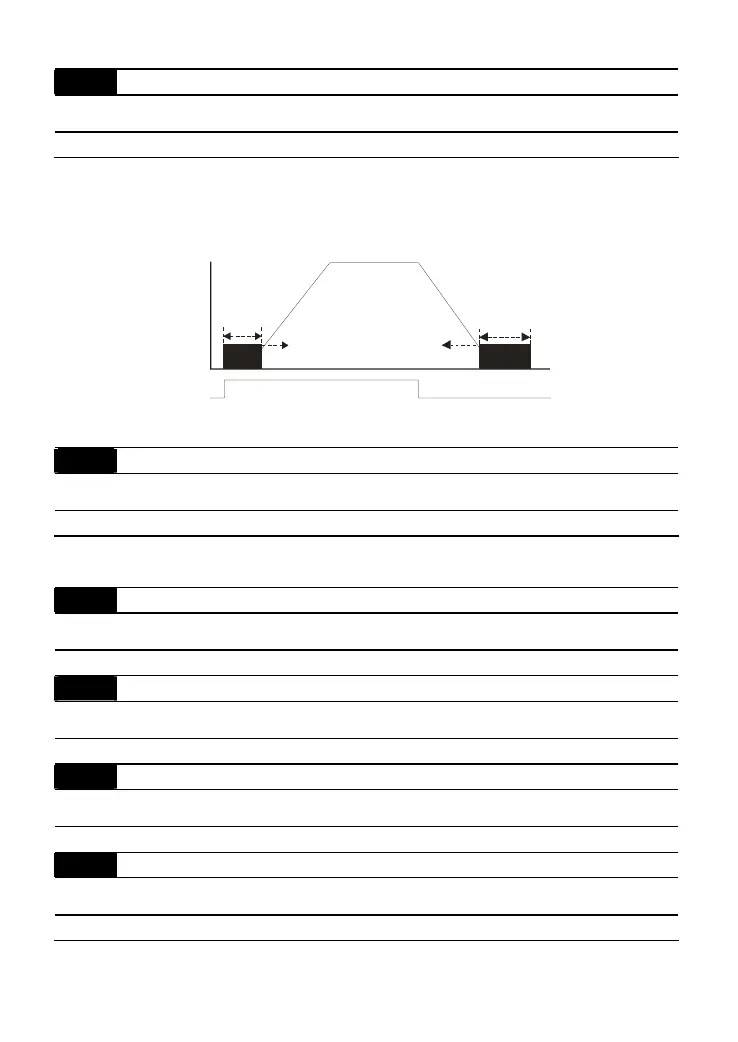

ON
OFF
01-09
07-05
Output fr eque nc
Run /Stop
Ti me
DC Brake Time
DC Br ake
Activation
Ti me
Start
frequency
Start-point for
DC brake
time during
stopping
07-03
07-04
DC Brake
Stopping
Time
07-06
DC Brake Proportional Gain
Control
mode
VF VFPG SVC
Factory Setting: 50
Settings 1 to 500Hz
It is used to set the output voltage gain when DC brake.
07-07
Dwell Time at Accel.
Control
mode
VF VFPG SVC FOCPG FOCPM
Factory Setting: 0.00
Settings 0.00 to 600.00 sec
07-08
Dwell Frequency at Accel.
Control
mode
VF VFPG SVC FOCPG FOCPM
Factory Setting: 0.00
Settings 0.00 to 400.00 Hz
07-09
Dwell Time at Decel.
Control
mode
VF VFPG SVC FOCPG FOCPM
Factory Setting: 0.00
Settings 0.00 to 600.00 sec
07-10
Dwell Frequency at Decel.
Control
mode
VF VFPG SVC FOCPG FOCPM
Factory Setting: 0.00
Settings 0.00 to 400.00 Hz
In the heavy load situation, Dwell can make stable output frequency temporarily.
