Delta VFD-VL Series

Chapter 4 Parameters|VFD-VL
4-89
07-23
 Low Torque Offset
Control
mode
SVC FOCPG TQCPG FOCPM
Factory Setting: 10.0
Settings 0.0 to 100.0%
 When it is set to 3, the source of torque offset will decide to Pr.07-21, Pr.07-22 and Pr.07-23
by the multi-function input terminals setting (19, 20 or 21). The motor rated torque is 100%.
07-24
 Forward Motor Torque Limit
07-25
 Forward Regenerative Torque Limit
07-26
 Reverse Motor Torque Limit
07-27
 Reverse Regenerative Torque Limit
Control
mode
FOCPG TQCPG FOCPM
Factory Setting: 200
Settings 0 to 300%
 The motor rated torque is 100%. The settings for Pr.07-24 to Pr.07-27 will compare with Pr.03-
00=5, 6, 7, 8. The minimum of the comparison result will be torque limit.

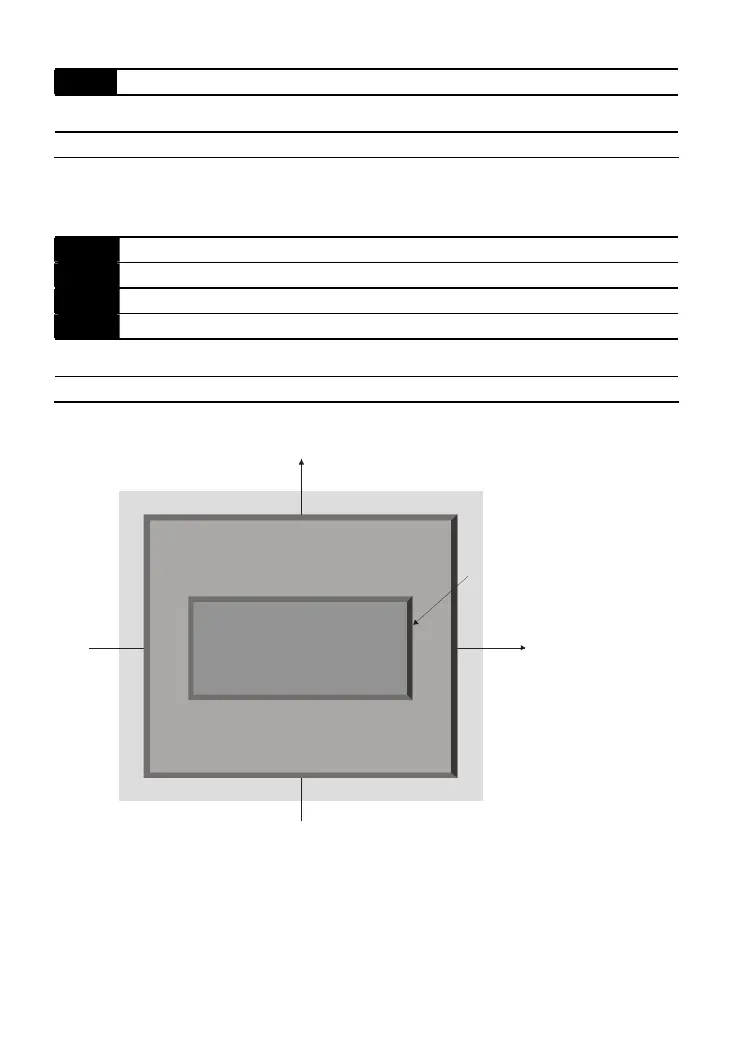

Positive
torque
Negative
torque
speed
06-11 current limit
06-11 current limit
06-11 current limit 06-1 1 current limit
Reverse motor mode
Forward re genera tive mode
Forward motor mode
Reverse rege nerative mo de
The level of torque limit will be
th e min. va lue of following thre e values
1. torq ue limit o f P r.07-2 4 to Pr. 07-26
2. Torque limit of externa l analog terminals
3. Pr.06-11 current limit
Exte rnal analo g terminals
Pr.03-00~02
7: positive torque limit
10: positive/negative torque limit
9: regenerative torque limit
External an alog terminals
Pr.03-00~02
7: positive t orque limit
10: positive/neg ative torque limit
External ana log terminals
Pr.03-00~03-0 2
8: negative torque limit
10: positive/n egative torque limit
External analog terminals
Pr.0 3-00~03-02
8: negative t orque limit
9: Regenerative torque limit
10: positive/negative torque limit
Pr. 07-27
Reverse rege nerative
torque limit
Pr.07-24
Forward motor
torque limit
Pr. 07-25
Forward reg enera tive
torque limit
Pr.07-26
Reverse motor
torque limit
Quadrant I
Quadrant II
Quadrant III
Quadrant IV
speed
