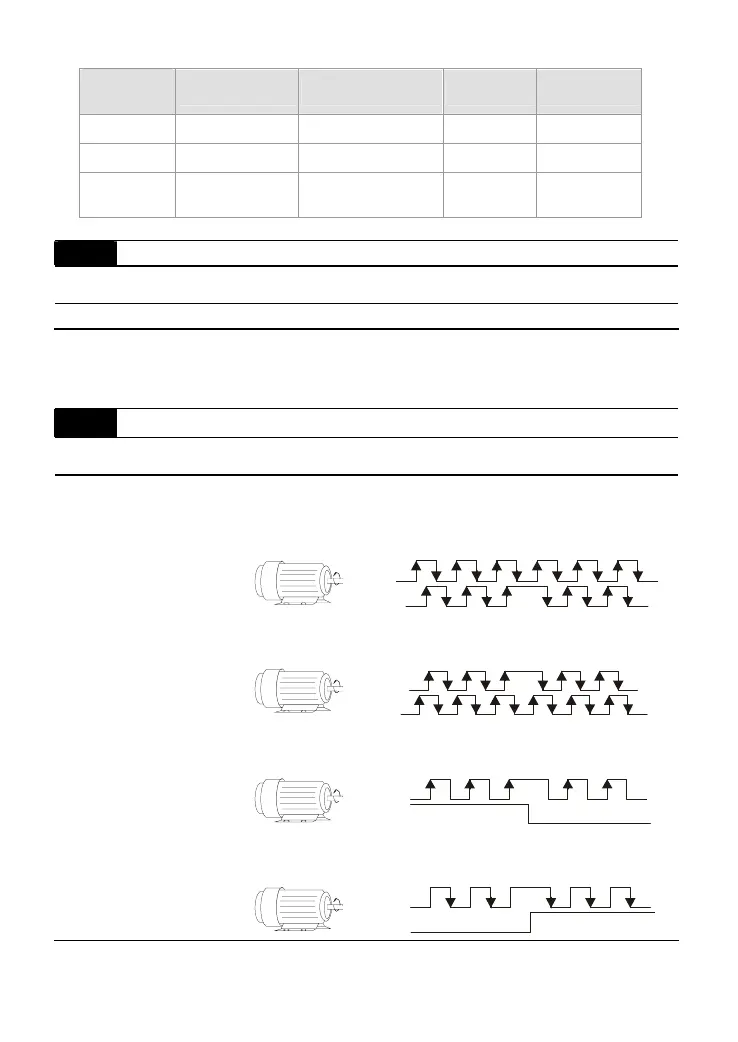

Chapter 4 Parameters|VFD-VL
4-107
Setting of PG
signal type
PG signal type Applicable PG card Pr.08-00=1 Pr.08-00=3
10-00=4 SIN/COS+Endat EMVL-PGS01 Motor will run Motor won’t run
10-00=5 SIN/COS EMVL-PGH01/02 Motor will run Motor will run
10-00=6
SIN/COS +
Hiperface
EMVL-PGS01 Motor will run Motor won’t run
10-01
Encoder Pulse
Control
mode
VFPG FOCPG TQCPG FOCPM
Factory Setting: 600
Settings 1 to 20000
A Pulse Generator (PG) or encoder is used as a sensor that provides a feedback signal of the
motor speed. This parameter defines the number of pulses for each cycle of the PG control.
10-02
Encoder Input Type Setting
Control
mode
VFPG FOCPG TQCPG FOCPM
Factory Setting: 0
Settings 0 Disable
1
Phase A leads in a forward run command and phase B leads in a
reverse run command
Forward
running
A
B
FWD
REV
2
Phase B leads in a forward run command and phase A leads in a
reverse run command
Forward
running
A
B
FWD
REV
3
Phase A is a pulse input and phase B is a direction input. (low
input=reverse direction, high input=forward direction)
Forward
running
A
B
FWD
REV
4
Phase A is a pulse input and phase B is a direction input. (low
input=forward direction, high input=reverse direction)
Forward
running
A
B
FWD
REV
