Delta VFD-VL Series User Manual

Appendix A Specifications|VFD-VL
A-2
NOTE

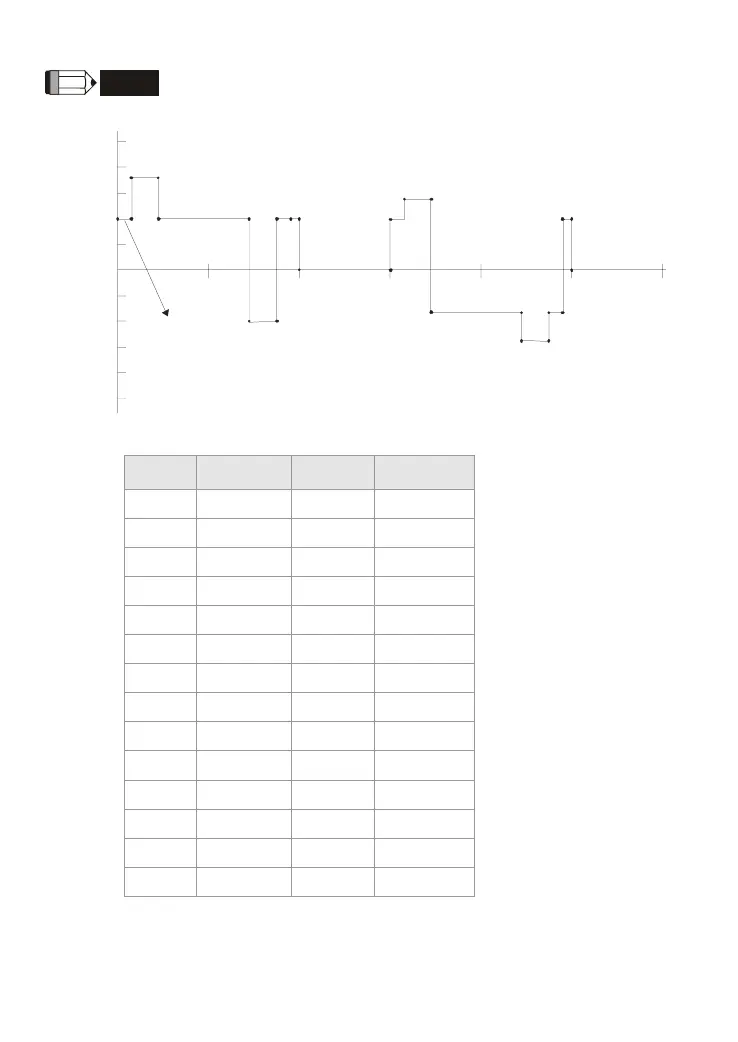

**Rated Output Current for Elevators (A)
Elevator Dut
y
250
200
150
100
50
0
-50
-100
-150
-200
-250
10 20 30 40 50 60
#2
#3
#4
#5
#6
#7
*1
*2
*3
*4
*5
*6
*7
#1
Time (seconds)
(%)
Current
Event Description Time(s) Current
#1 Per torque 1.5 100%
#2 Accel up 3 175%
#3 Cruise 10 100%
#4 Decel up 3 115%
#5 Post 1.5 140%
#6 Per torque 1 100%
#7 Rest 10 0%
*1 Per torque 1.5 100%
*2 Accel up 3 140%
*3 Cruise 10 80%
*4 Decel up 3 140%
*5 Post 1.5 140%
*6 Per torque 1 100%
*7 Rest 10 0%
