Chapter 1 Introduction|VFD-VL
1-10

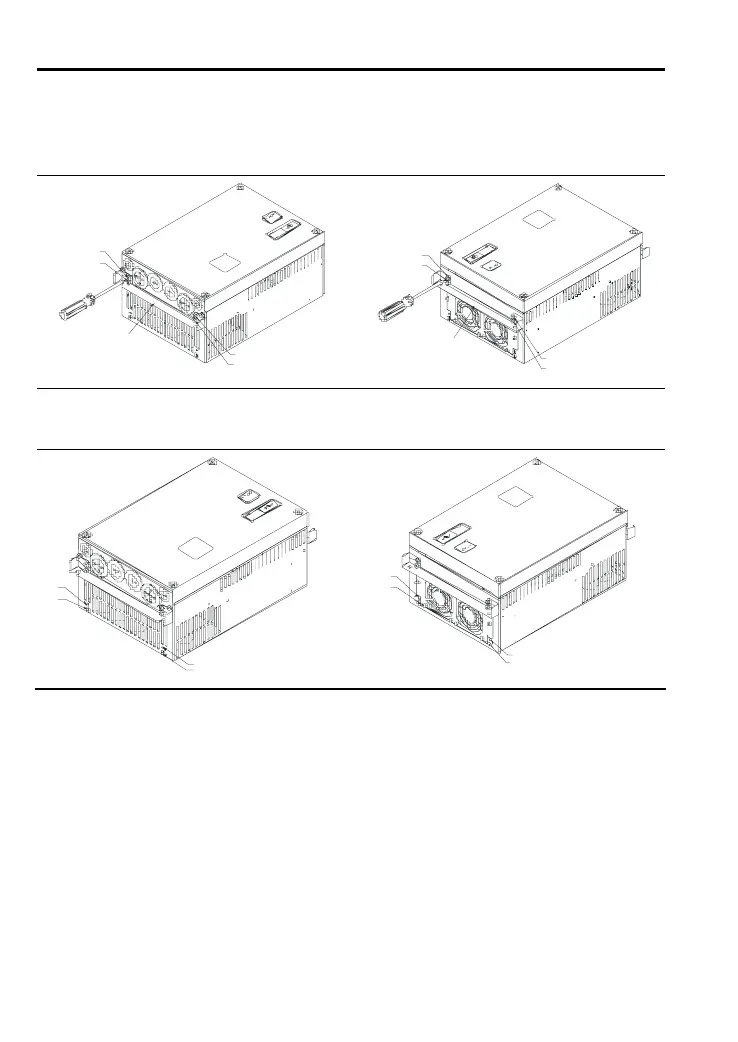

Step 2: place the 8 screws back in to secure the fixed plate 1 and fixed plate 2 (as shown in the
following figures) with the following torque.
Frame C: 14-17kgf-cm [12.2-14.8in-lbf]
Frame D: 20-25kgf-cm [17.4-21.7in-lbf]
Frame E: 20-25kgf-cm [17.4-21.7in-lbf]
1
2
3
4
fixed plate 1
1
2
3
4
fixed pla te 2
Step 3: Please notice that it doesn’t need to put those 8 screws shown in the following figures
back to the drive. Moreover, please make sure that these 2 different fixed plates are put in the
correct side as shown in the figures.
1
2
3
4
5
6
7
8
