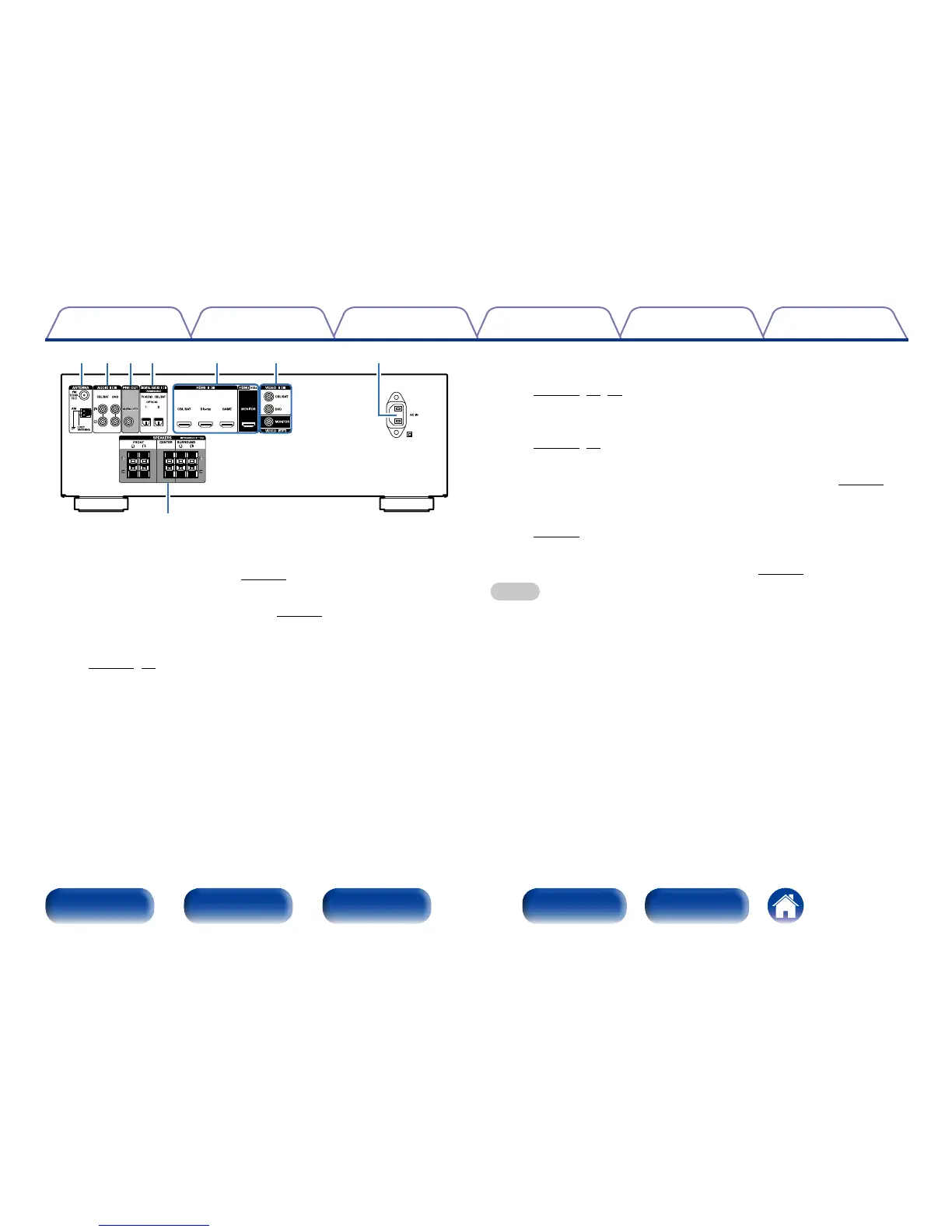

q Speaker terminals (SPEAKERS)
Used to connect speakers (vpage19).
w AC inlet (AC IN)
Used to connect the power cord (vpage33).
e Video connectors (VIDEO)
Used to connect devices equipped with video connectors
(vpage25, 27).
r HDMI connectors
Used to connect devices equipped with HDMI connectors
(vpage24, 27, 28).
t Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors
(vpage25, 27).
y PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier (vpage20).
u Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors
(vpage27).
i FM/AM antenna terminals (ANTENNA)
Used to connect FM and AM antennas (vpage37).
NOTE
•Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
