19
Appendix
TipsSettingsPlayback
Contents
Front panel Display Rear panel IndexRemote
Connections
Speaker connection
Here we connect the speakers in the room to this unit.
This section explains how to connect them using typical examples.
NOTE
•Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn o the subwoofer.
•Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and – sides touch each other (vpage89 “Protection circuit”).
•Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
•Use speakers with an impedance of 6 – 16 Ω/ohms.

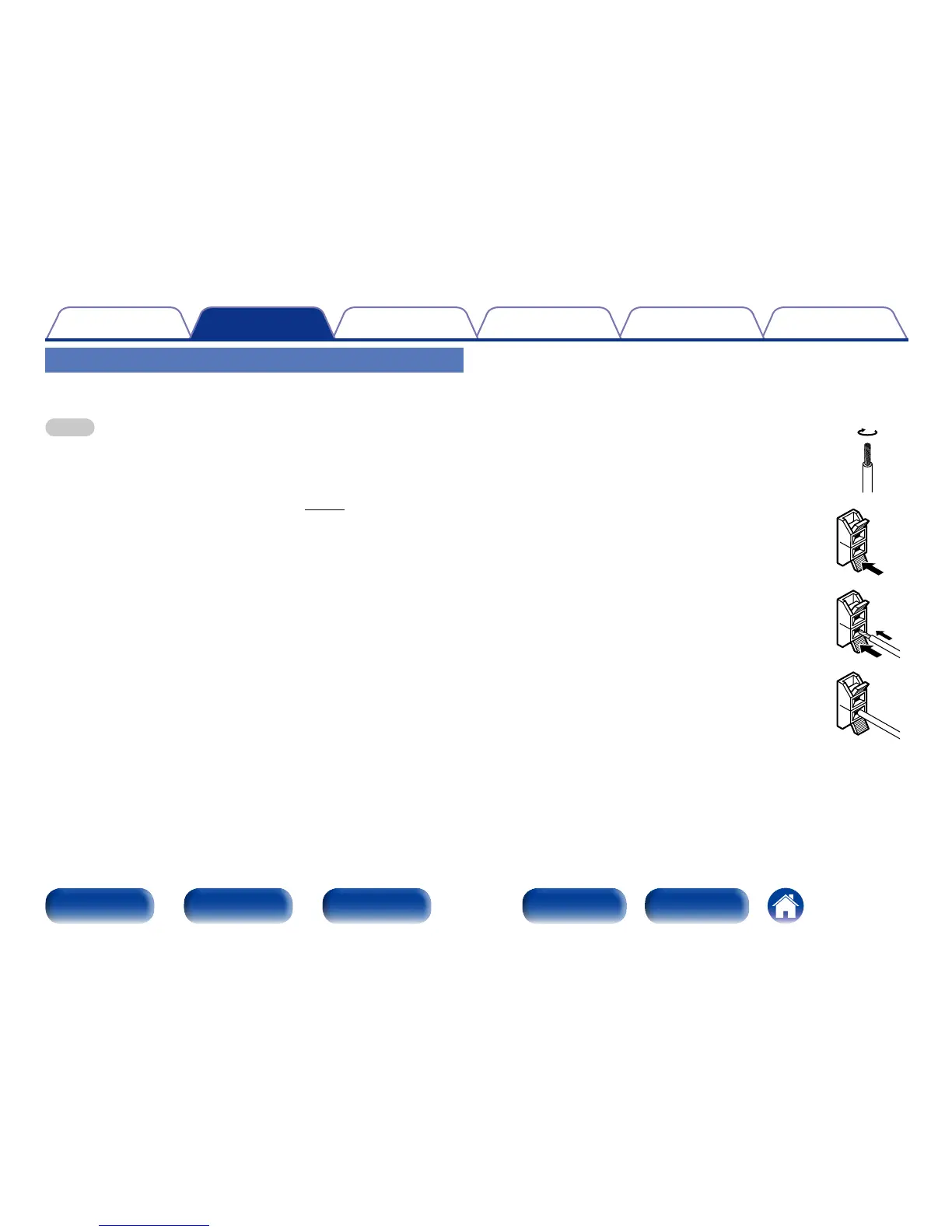

2 Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel o about 10 mm of sheathing from
the tip of the speaker cable, then either
twist the core wire tightly or terminate it.
2
Press the lever on the speaker terminal.
3
Holding the lever on the speaker terminal,
insert the core wire of the speaker cable all
the way into the speaker terminal.
4
Release your finger from the lever on the
speaker terminal.
To Next Page
