Denso BHT-8000 - BHT-Ir Protocol; 1 ] Transmission Control Sequences

194
B.2 BHT-Ir protocol
[ 1 ] Transmission Control Sequences

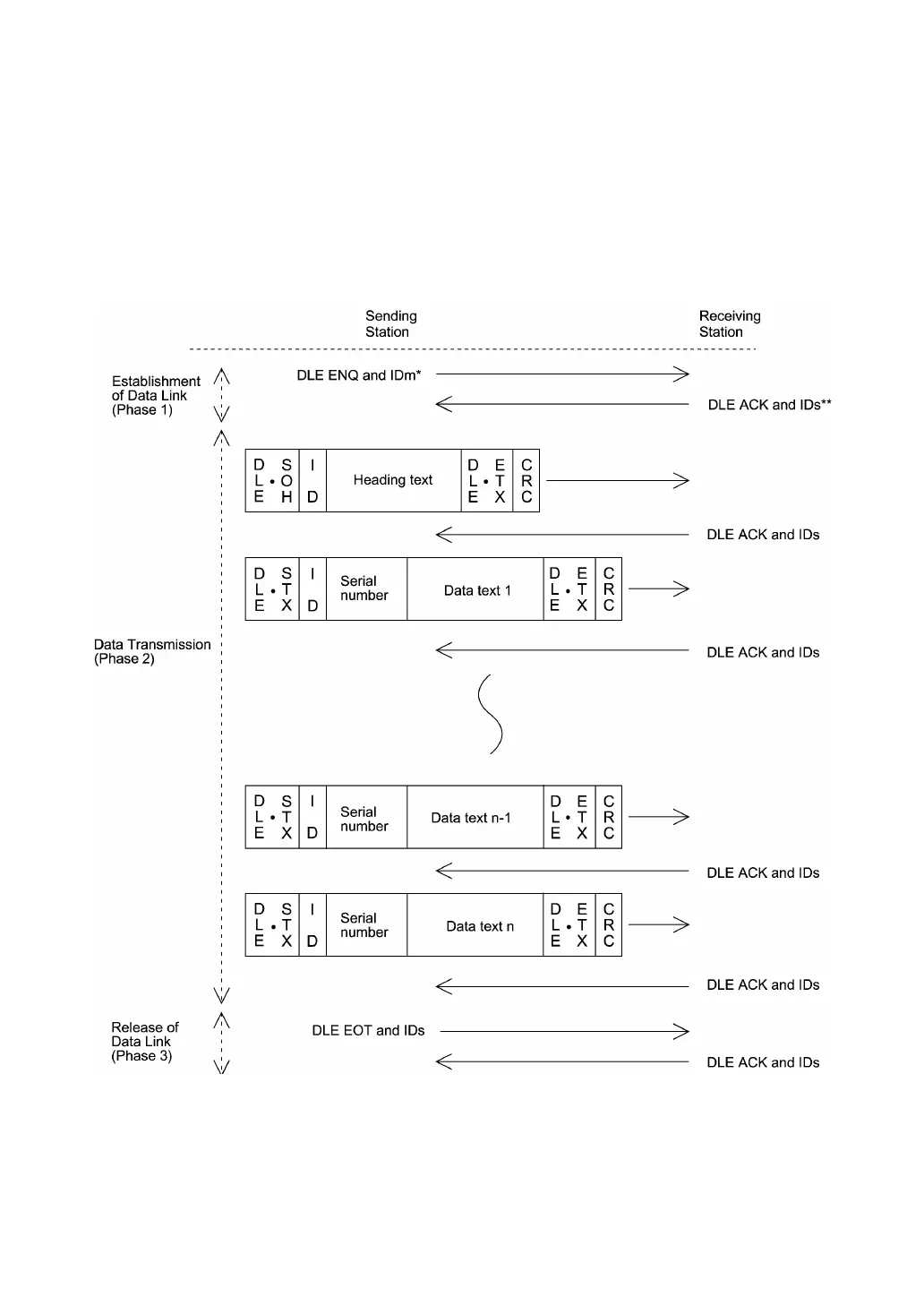

Shown below is a typical message transmission sequence supported by the BHT-Ir protocol. This
sequence example does not include transmission errors or negative responses.
*IDm: ID of sending station
**IDs: ID of receiving station
