Testing the IrDA interface port

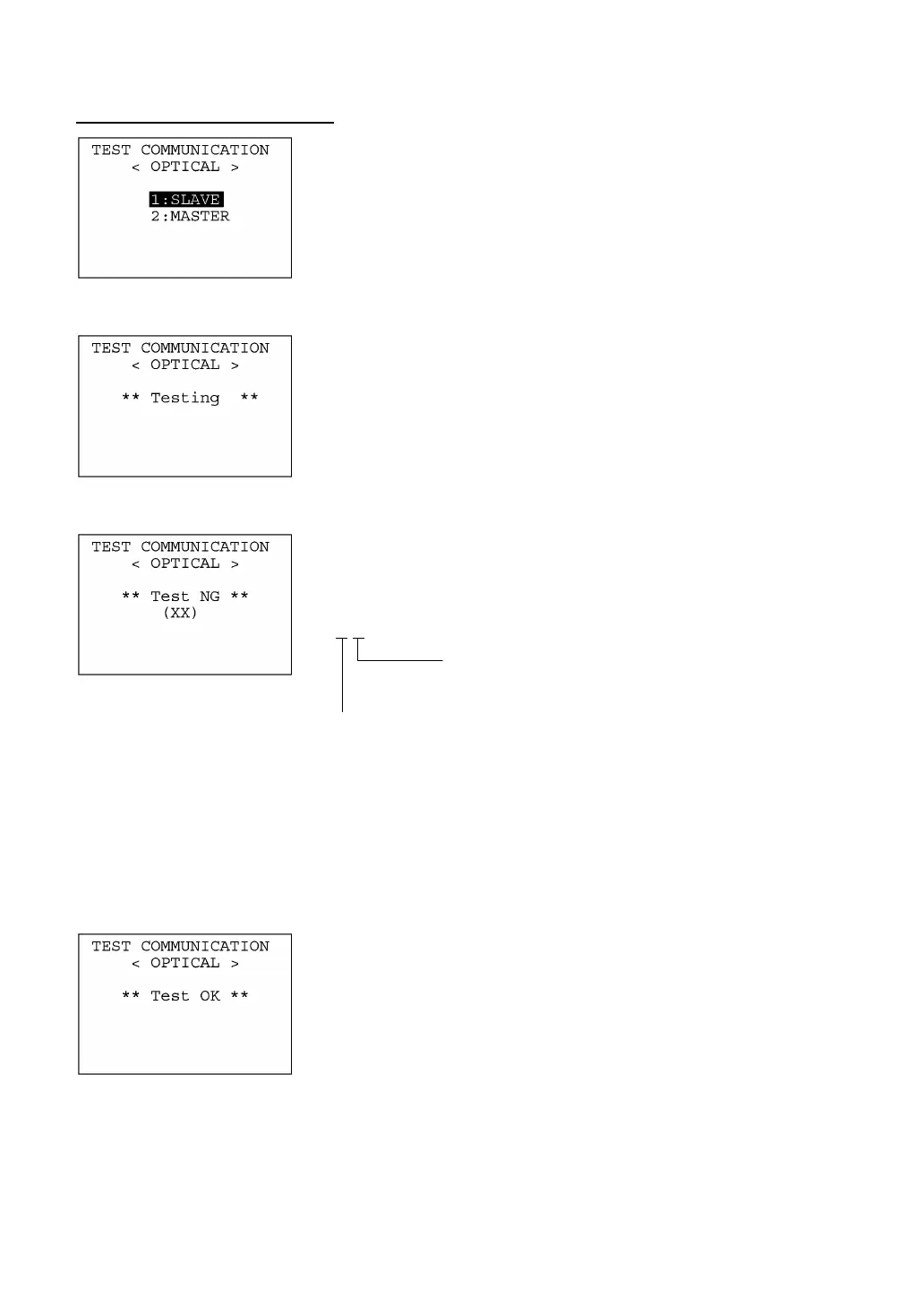

Selecting the "1:OPTICAL" on the TEST COMMUNICATION menu
calls up the screen shown at left.
At the slave BHT to be tested, select the "1:SLAVE" and at the maste
BHT, select the "2:MASTER."
During the test, the screen shown at left is displayed.
If any error occurs, the tested slave BHT beeps three times and
shows the screen at left.
In parentheses are error codes which have the following meanings:
(X X)
1: The received data is different from the sent data.
2: A timeout has occurred during standby for data
reception.
1: 2400 bps
2: 9600 bps
3: 115200 bps
Press the C key to return to the TEST COMMUNICATION menu.
The master BHT will automatically return to the TES
COMMUNICATION menu after 10 seconds from the occurrence of an
error.
Upon normal completion of the test, the tested slave BHT beeps once
and shows the screen at left.
Press the C key to return to the TEST COMMUNICATION menu.
The master BHT will automatically return to the TES
COMMUNICATION menu.
