DETRUM GAVIN-6C - Basic Operation; Adjust the Stick Lever Tension

To Next Page

To Previous Page

- 13 -

Basic Operation

Adjust the Stick Lever Tension

This allows adjustment of the stick lever tension to meet different operating

habits.

Tools: Phillips screwdriver, ESD wrist strap or ESD gloves.

Conditions: Before operating, please wear an ESD wrist strap or ESD gloves.

Steps:

1. Open the battery cover, and remove the batteries.

2. Remove the six screws on the rear cover with a Phillips screwdriver.

3. Open the rear cover and remove the wirings between the PCB and rear

cover.

The wirings: a connection between the battery pack and the interface marked

with J1 on PCB, a connection between TRAINER switch and the interface

marked with TRAINER on PCB, a connection between USB interface and the

interface marked with USB on PCB.

CAUTION: Please gently ease off the transmitter's rear cover, to avoid

breaking the wirings.

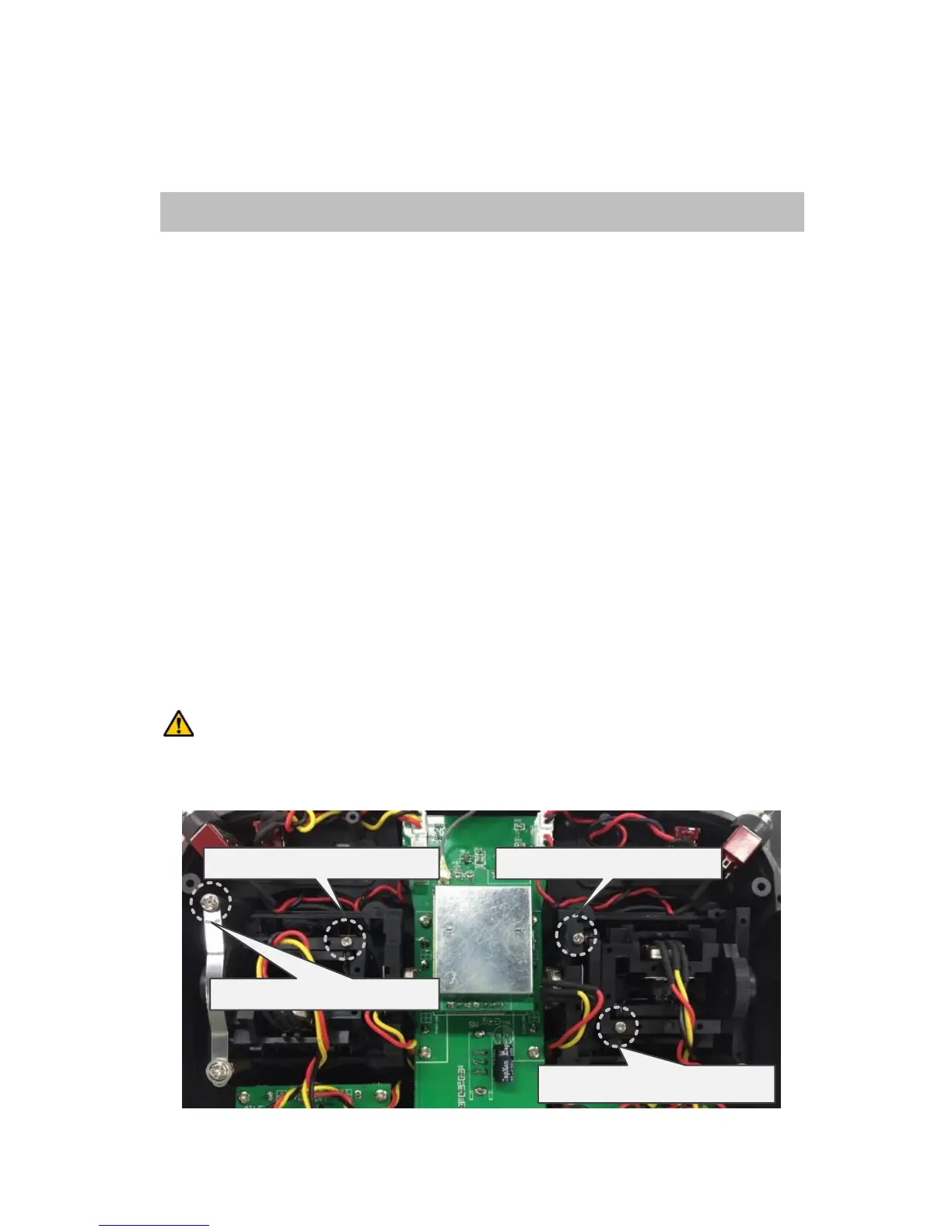

Screw for spring adjustment
