TROUBLESHOOTING / 95
Figure 52

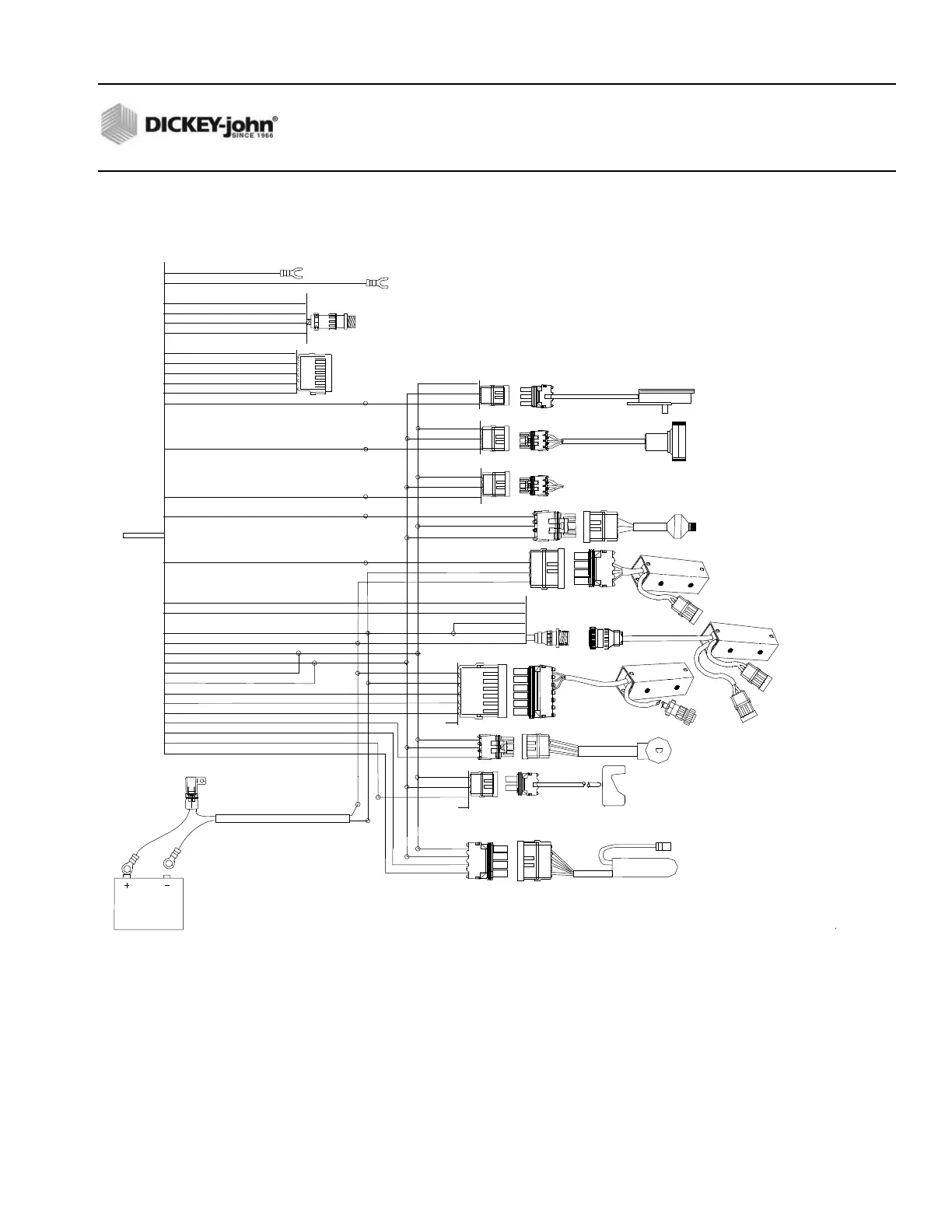

System Wiring Diagram, Truck Harness and Sensors (P/N 46649-0485 and 46649-0486)
Note: Alpha characters in
front of pin numbers indicate
pin numbers of console connector.
T 3 YEL Dig Signal
k 7 RED Dig Signal
u 23 BLK Gnd (Speed) 1
N 31 GRN Fq1 (Speed) Square Wave 2
b 41 RED +12V (Speed) 3
G 45 WHT Fq2 (Speed) Sine Wave 4
D 18 RED BOOM1 Dig Signal A
C 11 BLK BOOM2 Dig Signal B
B 5 BRN BOOM3 Dig Signal C
A 1 WHT BOOM4 Dig Signal D
U 2 GRY BOOM5 Dig Signal E
J 47 TAN ARS Granular Fq Freq Signal
2 Speed Axle
Ignition
Ground Speed Input
Boom Switch
Input Connector
21895-0006
RED A
BLK B
GRN C
Spinner Sensor (Fq)
46350-0030B
Granular PWM Driver
46421-0430S1
Linear Driver
46490-0920S1
Hopper Level
Sensor 46421-0870S1
GRN C
BLK B
RED A
RED A
BLK B
LTBLU/BK C
PUR/WHT D
Main Harness
46649-0485
46649-0486
Battery
Main
Power
Fuse
Flowmeter
Application Rate
(Fq) Sensor 46436-017xS1
e 37 WHT Flowmeter Liquid Fq Freq Signal
g 24 ORG/BK Spinner Fq Freq Signal
E 32 LTGRN Spinner open
p 26 LTBLU Granular open
n 20 ORG +12V Switched Output
r 35 PUR/WHT Air Temp Ang Signal
z 28 GRY Tank Level Analog Signal
F 39 BLK BATT GND
M 38 RED +12V BATT
x 21 WHT RD +12V
w 14 LTGN/BK GND
c 42 WHT/WH +12V
y 27 LTGN/BK GND
V 6 WHT Liquid closed
W 12 BRN Liquid open
i 9 GRY APER 2
v 15 VLT/WH Gate Height Ang Signal
aa 22 LTBLU/BK Pavement Temp Ang Signal
Z 33 DKBLU Material Level Dig Signal
Gate Height Sensor
46649-1780S1
Material Flow Sensor
12V Relay Driver
Roadwatch Adapter
46649-2000S1
Tank Level or Down Pressure
46570-0080S1
RED A
BLK B
GRN C
RED A
BLK B
GRN C
ORG C
BLK B
RED A
GRN 6
BLU 8
BLK 14
BLK 15
RED 16
RED A
BLK B
GRN C
RED A
BLK B
GRN C
D
RED A
BLK B
BRN C
WHT D
GRY E
F
