90030500B Introduction Page 3

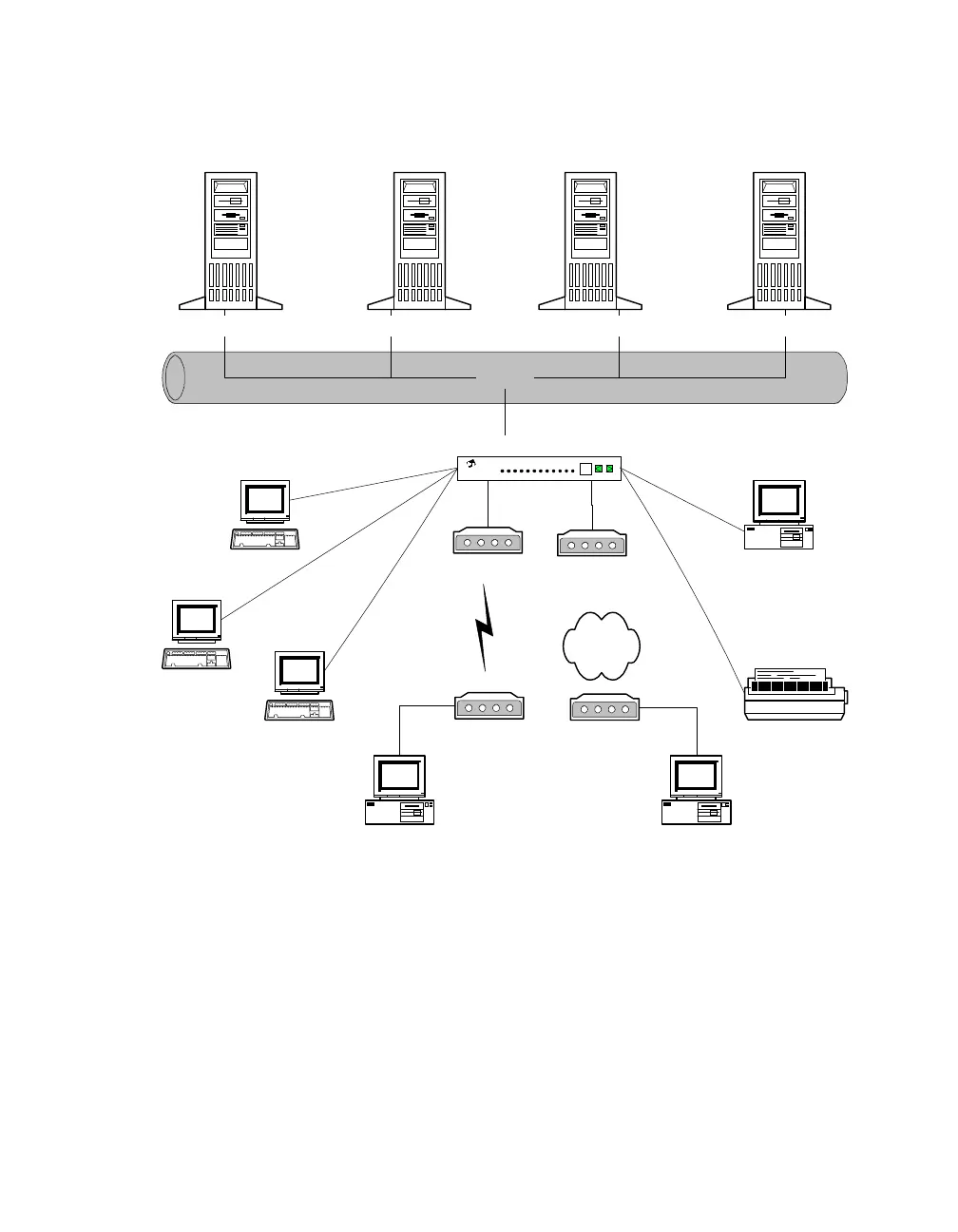

Figure 1 PortServer II Features and Functions
The following peripherals are shown connected to the PortServer II:
•
Terminals
. Any terminal that includes a standard RS-232 serial interface can be
connected to a serial port. PortServer II communicates with the host computer
through the Ethernet port using TCP/IP. Where multi-user systems are already
installed, multiple host sessions are available, up to a limit of nine sessions per
port.
Ethernet
PortServer II
16
PortServer
SCO UNIX Server Solaris Server SVR4 Server Novell Server
Terminal
Terminal
Terminal
Local PC
Remote PC
Async Modem
Router
Printer
Frame
Relay
CSU/DSU or
Sync Modem
Router
Remote PC
