Digi PortServer II User Manual

Page 12 Introduction 90030500B
Terminal server configuration - remote devices and RealPort

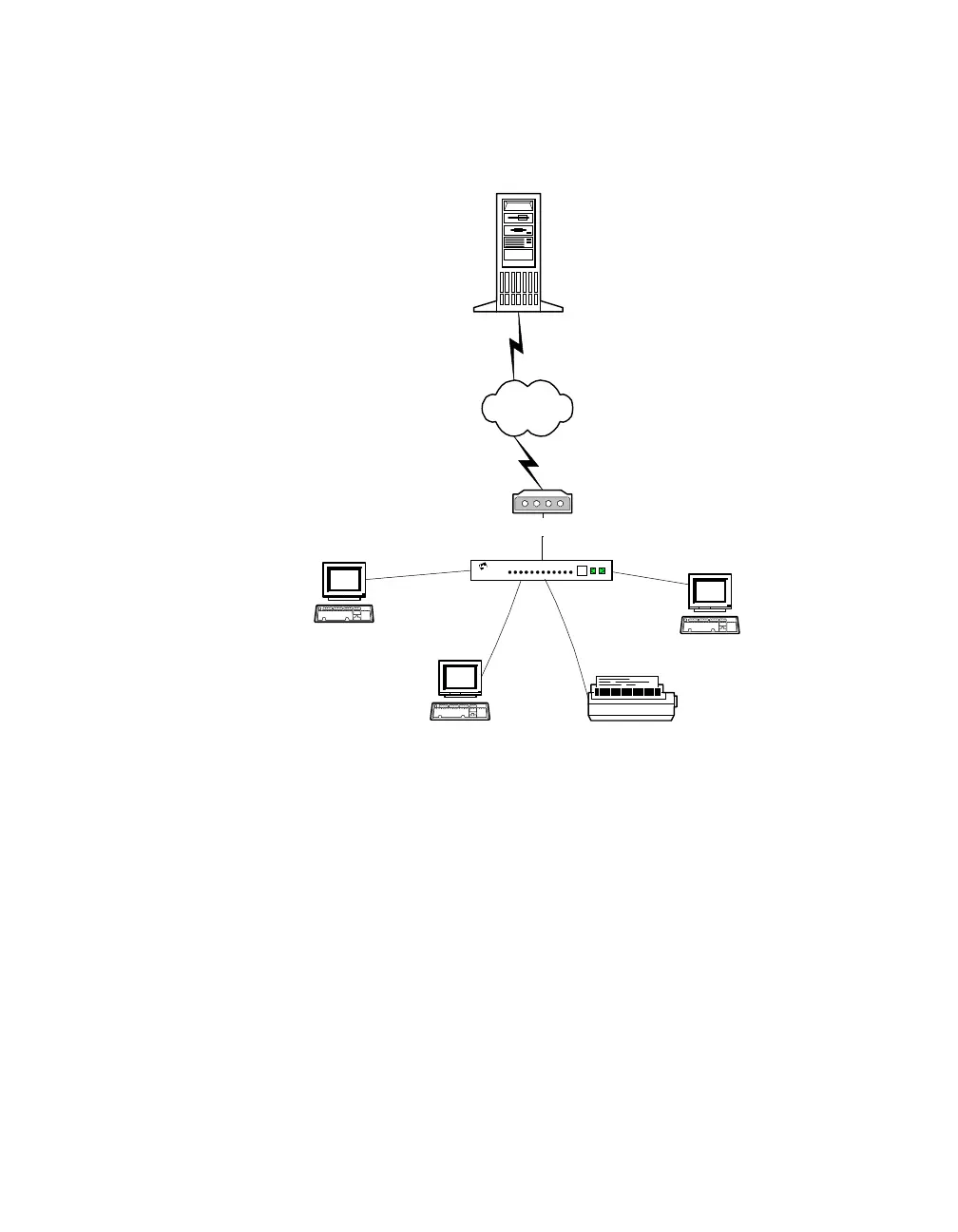

Figure 3 PortServer II - Remote Devices and RealPort
In this configuration, several “dumb” terminals are connected to a corporate applica-
tion server by means of a PortServer II and the PSTN (Public Service Telephone Net-
work) or Frame Relay. This example shows that it is also possible to connect a variety
of different devices to the PortServer II in a “dial-up” configuration, including print-
ers, modems, and other peripherals that might be found in a typical branch or satellite
office. Features to note include:
• The corporate application server may be running RealPort software (see
Chapter
11, Configuring RealPort Connections
).
• PortServer II’s Ethernet port is configured with an IP address (see
Chapter 4
).
• PortServer II and the application server could be connected by a “dial-up” line
(not shown, see
Chapter 9, Configuring Modem Connections
).
• Terminals, modem, and printer are connected to serial ports on PortServer II.
PortServer II
16
PortServer
Application Server
Terminal
Terminal
Terminal
Printer
PSTN or
Frame Relay
Modem or DSU/CSU
