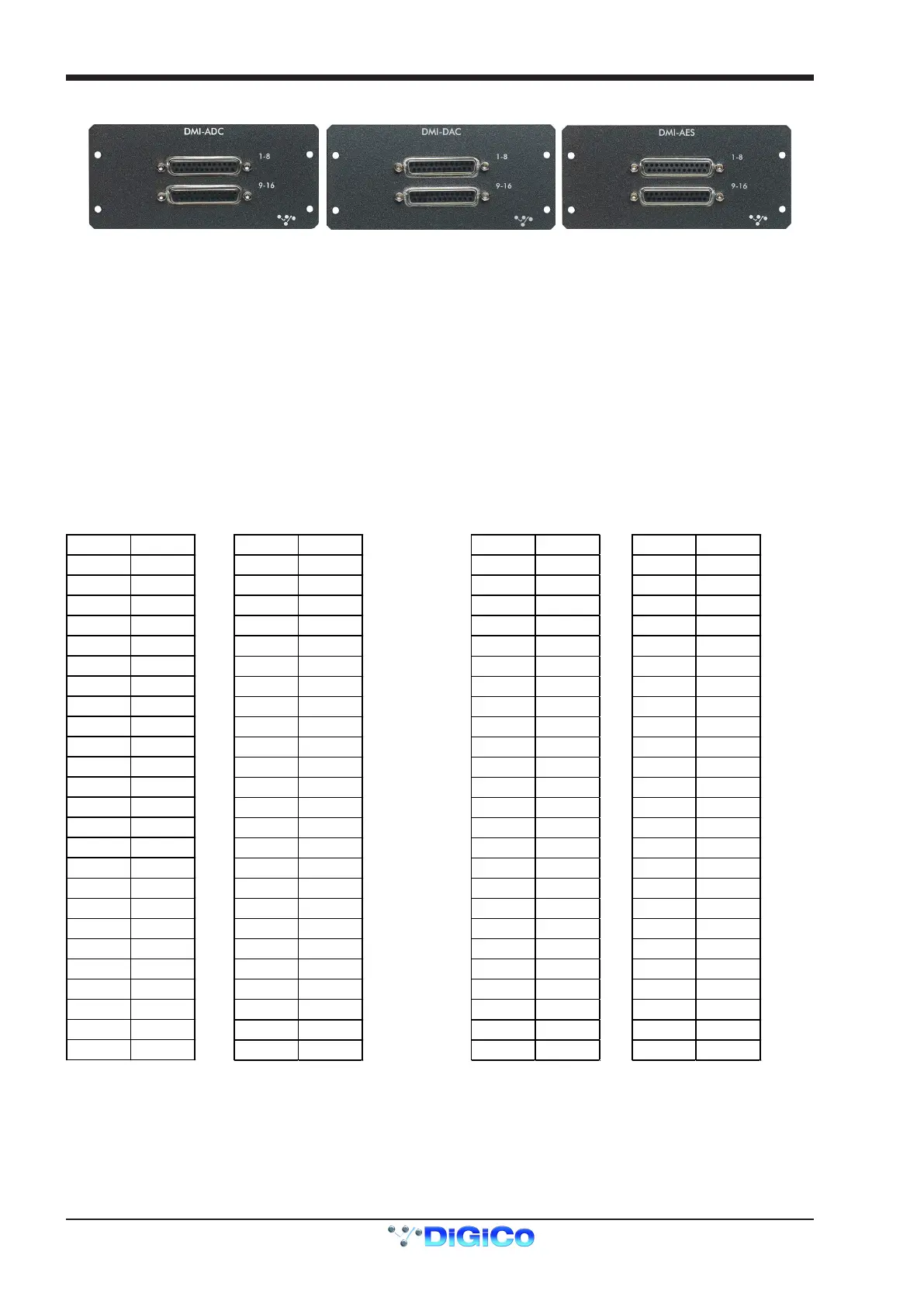

2.4 DMI - ADC - DAC - AES Cards
The DMI-ADC card provides 16 analogue inputs on 2 x 25 way "D" connectors
The ADC card is a line card only. There is no microphone amplier or phantom power available.
SD12 has no gain control function for these inputs (only digital trim). Maximum input level +22dBu
The DMI-DAC card provides 16 analogue outputs on 2 x 25 way "D" connectors
DAC card is line level only. Maximum output level +22dBu (Digital Full Scale)
DMI-AES cards provide 16 Inputs (8 pairs) and 16 outputs (8 pairs) on 2 x 25 way "D" connectors
All AES inputs are provided with sample rate conversion (SRC) by default.
All AES outputs are synchronised to the mixer system clock.
Multi-Pin Connector Pinouts
The DMI module range use 25 way “D” connectors, Female on the module (Male required on the connecting cable). The pins connec-
tions are as follows.
Analogue inputs and outputs AES-EBU combined in/out
Sorted by pin Sorted by function Sorted by pin Sorted by function
Function pin
8+ 1
0 2
7- 3
6+ 4
0 5
5- 6
4+ 7
0 8
3- 9
2+ 10
0 11
1- 12
nc 13
8- 14
7+ 15
0 16
6- 17
5+ 18
0 19
4- 20
3+ 21
0 22
2- 23
1+ 24
0 25
Function
pin
0 2
0 5
0 8
0 11
0 16
0 19
0 22
0 25
1- 12
1+ 24
2- 23
2+ 10
3- 9
3+ 21
4- 20
4+ 7
5- 6
5+ 18
6- 17
6+ 4
7- 3
7+ 15
8- 14
8+ 1
nc 13
Function
pin
4out+ 1
0 2
3out- 3
2out+ 4
0 5
1out- 6
4in+ 7
0 8
3in- 9
2in+ 10
0 11
1in- 12
nc 13
4out- 14
3out+ 15
0 16
2out- 17
1out+ 18
0 19
4in- 20
3in+ 21
0 22
2in- 23
1in+ 24
0 25
Function
pin
0 2
0 5
0 8
0 11
0 16
0 19
0 22
0 25
1in- 12
1in+ 24
1out- 6
1out+ 18
2in- 23
2in+ 10
2out- 17
2out+ 4
3in- 9
3in+ 21
3out- 3
3out+ 15
4in- 20
4in+ 7
4out- 14
4out+ 1
nc 13
Pinout and connection notes:
0 = earth/ground or screen/shield nc = not connected + = phase/hot - = antiphase/cold
Analogue connections for input and output are connected in the same way, as shown
Analogue connections for channels 1-8 shown, channels 9-16 follow the same pattern (1 = 9, 2 = 10 etc.)
AES connections are shown as 4 stereo (2 channel) connections, equivalent to channels 1-8
AES connections for stereo connections 1-4 (ch 1-8) shown, connections stereo 5-8 (ch 9-16) follow the same pattern (1 = 5, 2 = 6 etc.)
