Digital Equipment VR320 - Disconnecting Cables from the Deflection Module

Removing and Replacing FRUs 3–11
3. Disconnect the 4-wire, 9-pin yoke cable (P11)
1
by pressing the tabs
on the connector (J11) (Figure 3–10).
4. Disconnect the 6-wire, 9-pin flat raster control cable (P6)
2
by
pressing the tab on top of the connector (J6).
5. Disconnect the 1-wire, 2-pin dynamic focus cable (P8)
3
by pressing
the tabson the connector (J8).
1
3
MA-1026-89.DG
2
1
2
3
Deflection Module
4-Wire, 9-Pin,
CRT/Yoke
Cable
6-Wire, 9-Pin,
Raster Control
Cable
1-Wire, 2-Pin,
Dynamic Focus
Cable

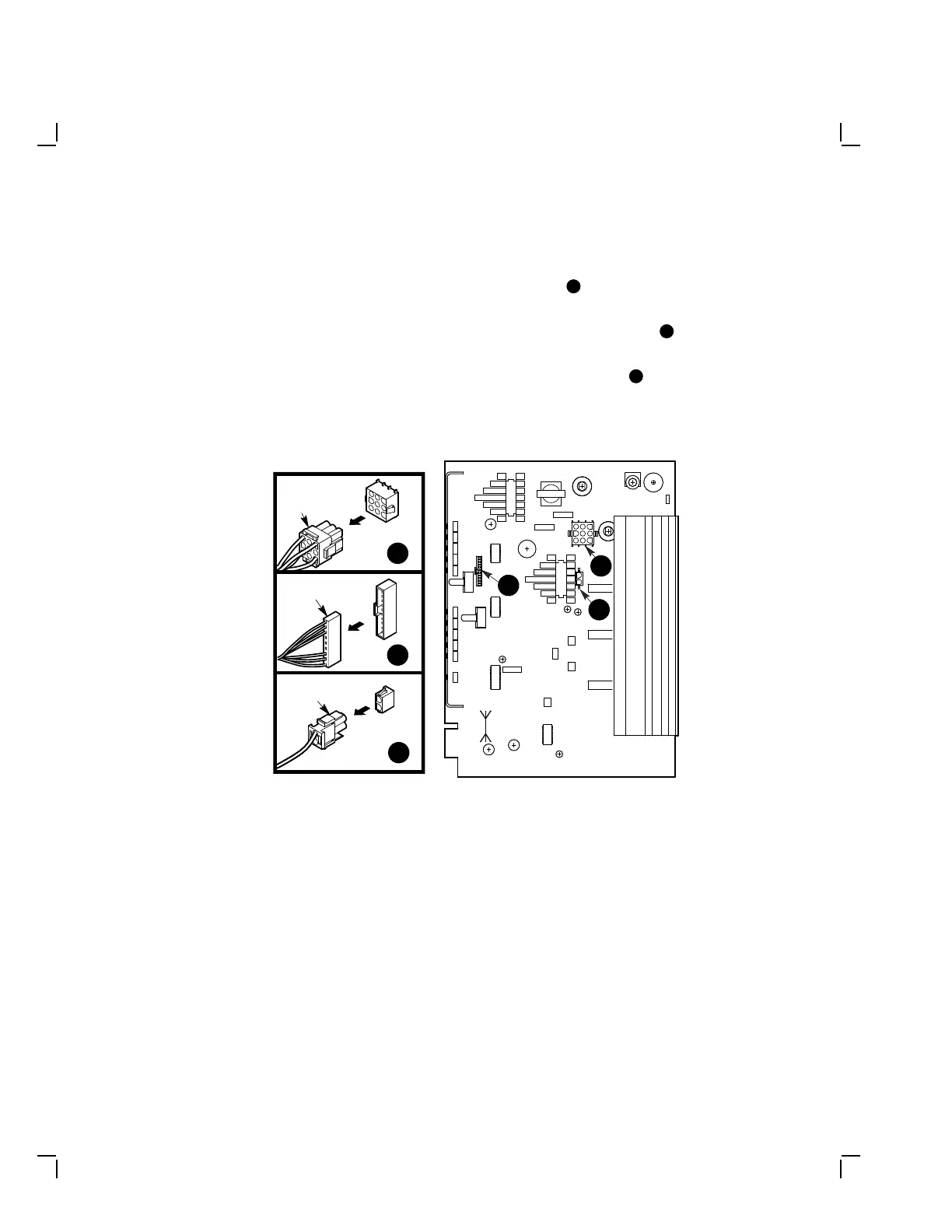

Figure 3–10 Disconnecting Cables from the Deflection Module
