Alignment Screens
This appendix describes the screen patterns used to diagnose color and
deflection problems, as well as to perform deflection, color checks and
adjustments.
A.1 Circle-Crosshatch Pattern
Use the circle-crosshatch pattern (Figure A–1) for all alignment tests.
Use this pattern as a reference for customers who work primarily with
graphic applications.
MA-X0889-88

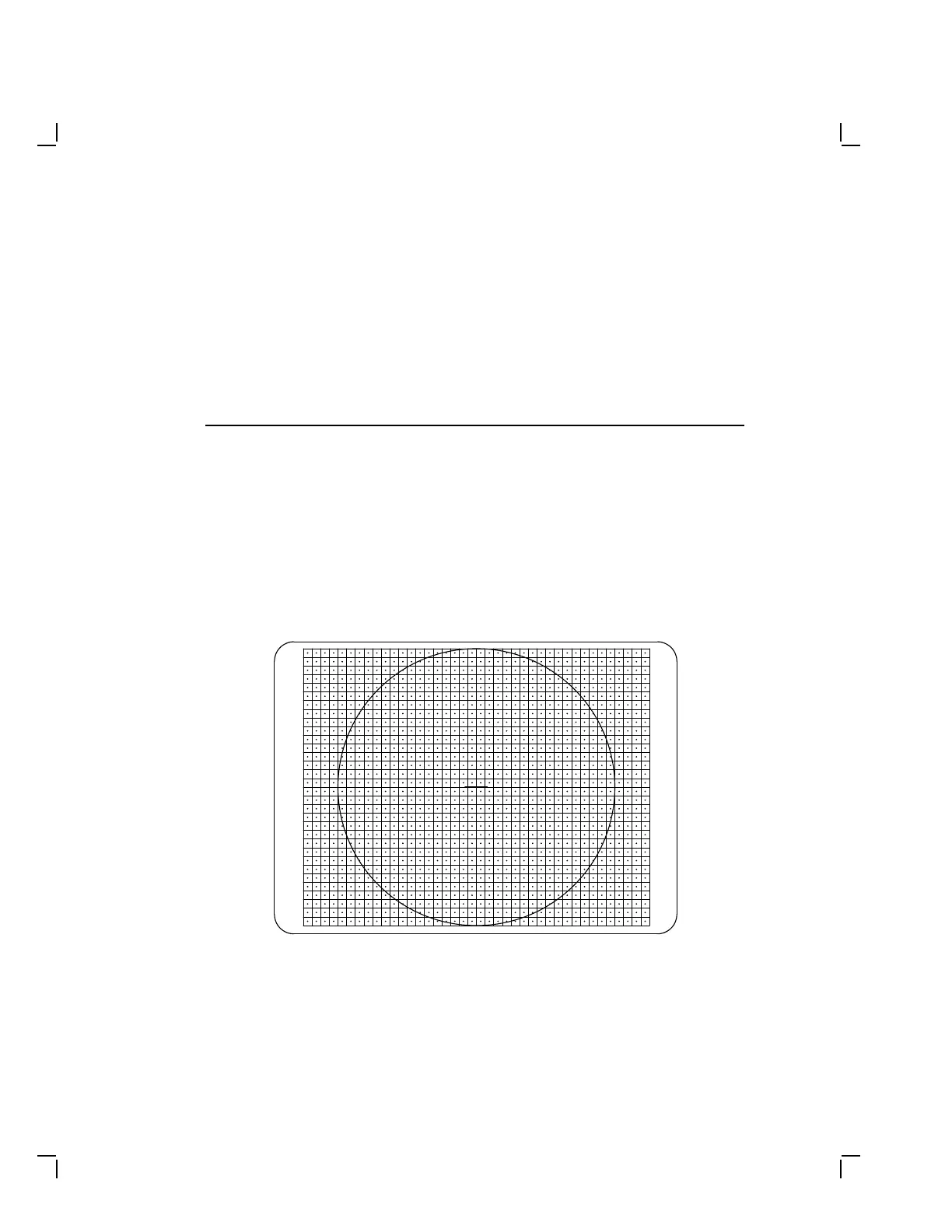

Figure A–1 Circle-Crosshatch Pattern
