Digital Equipment VR320 - Disconnecting the Focus Pack and Focus Cables

3–24 Removing and Replacing FRUs
10. Remove the 1-wire, 3-pin focus pack cable and the two focus cables
from the cable clamp on the upper right side of the video casting
assembly (Figure 3–21).
11. Disconnect the 1-wire, 3-pin focus pack (P7) cable from the top of the
video casting by pressing the tabs on the connector (J7).
MA-1044-89.DG
Black and
White Focus
Cables
Power Supply
Module
Video
Casting
Assembly
1-Wire, 3-Pin,
Focus Pack
Cable
Focus Pack
Cable and
Focus Cables

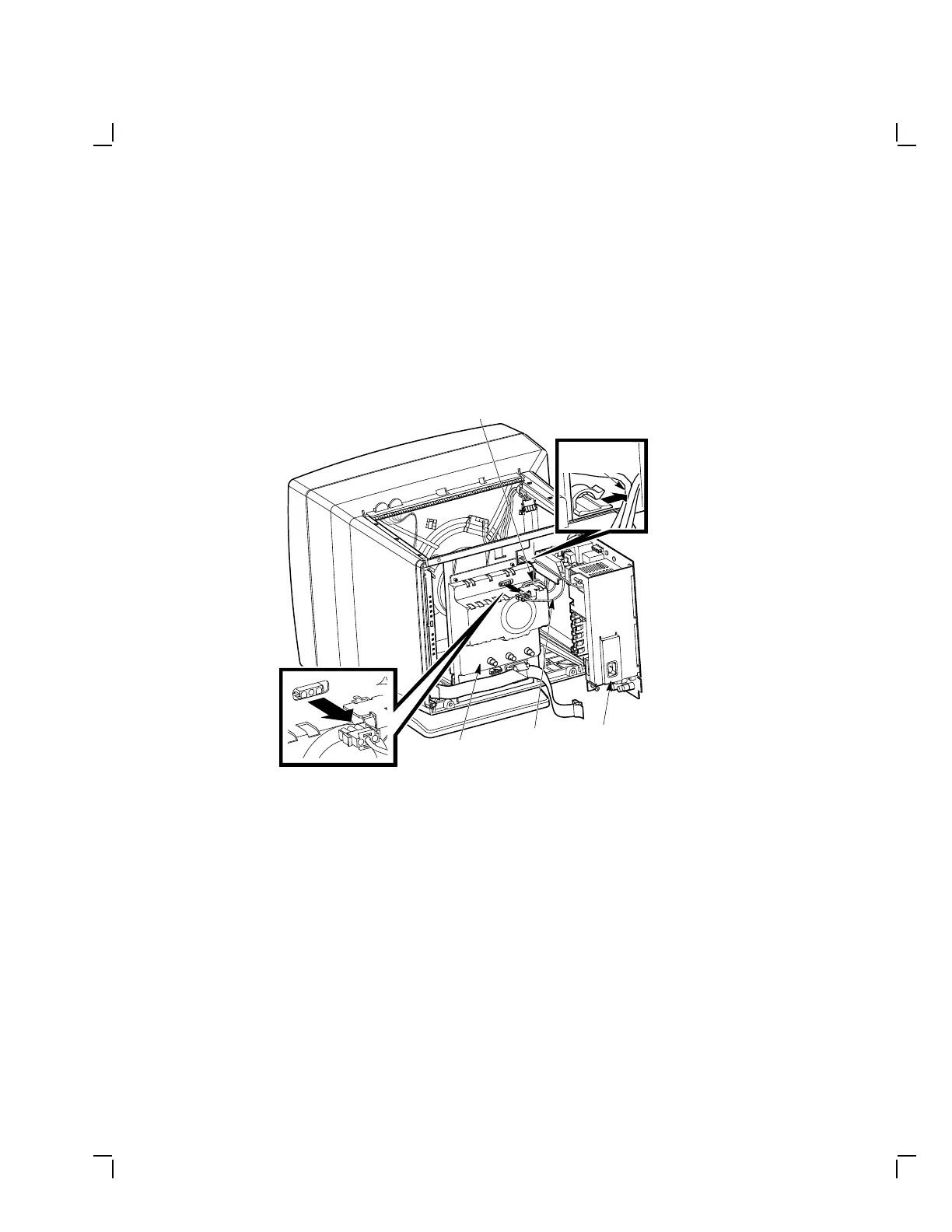

Figure 3–21 Disconnecting the Focus Pack and Focus Cables
