Aligning the Video Monitor 4–23
4.5.20 Side Pincushioning (PIN)
When the sides of a video display bow, the effect is known as
pincushioning or barreling, depending on whether the sides bow in or
out. See Figure 4–18 and Figure 4–19.
MA-X0925-88

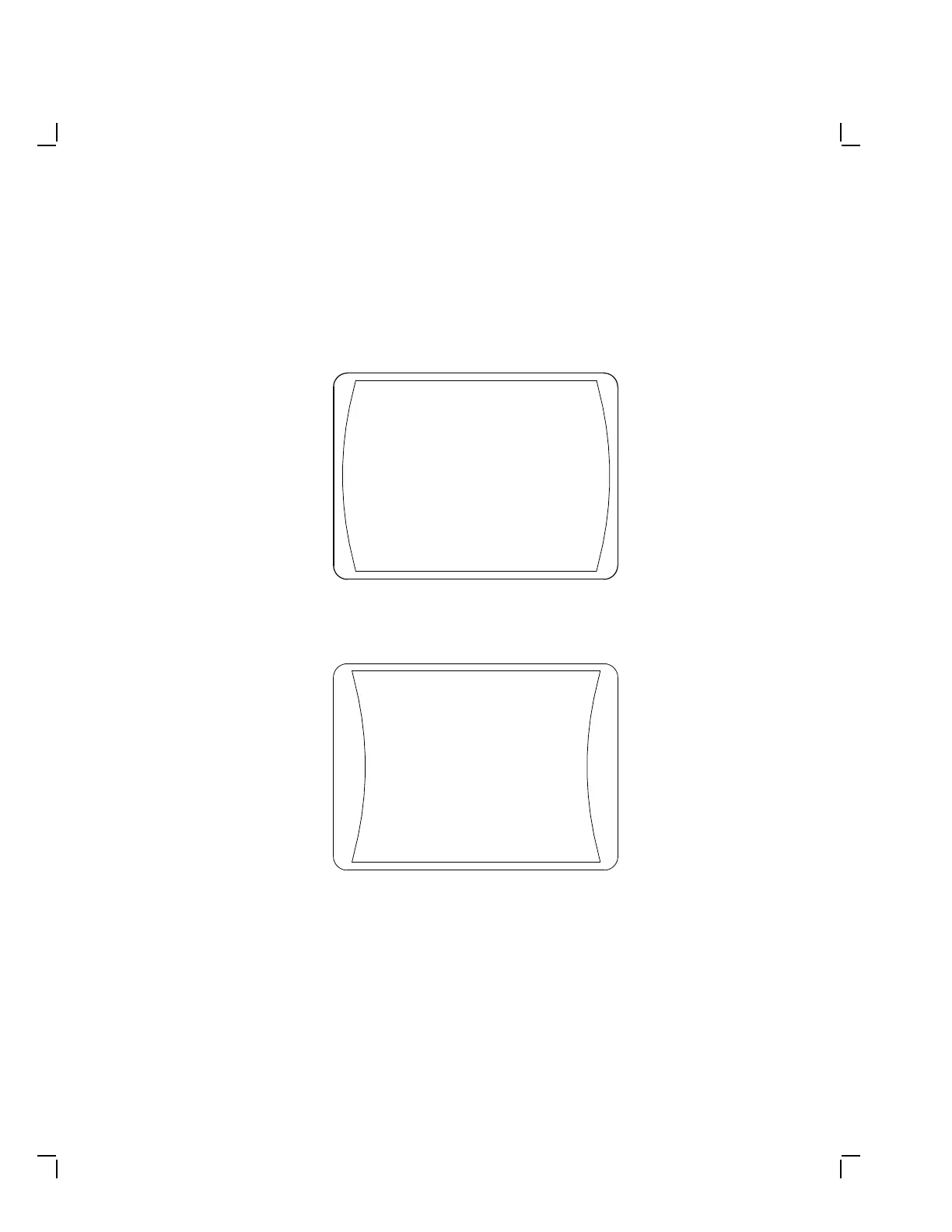

Figure 4–18 Video Area on Screen Bowed Out
MA-X0673-88
Figure 4–19 Video Area on Screen Bowed In
