Digital Projection M-Vision Laser 18K Series
Reference Guide
APPENDIX C: WIRING DETAILS
Rev D October 2019

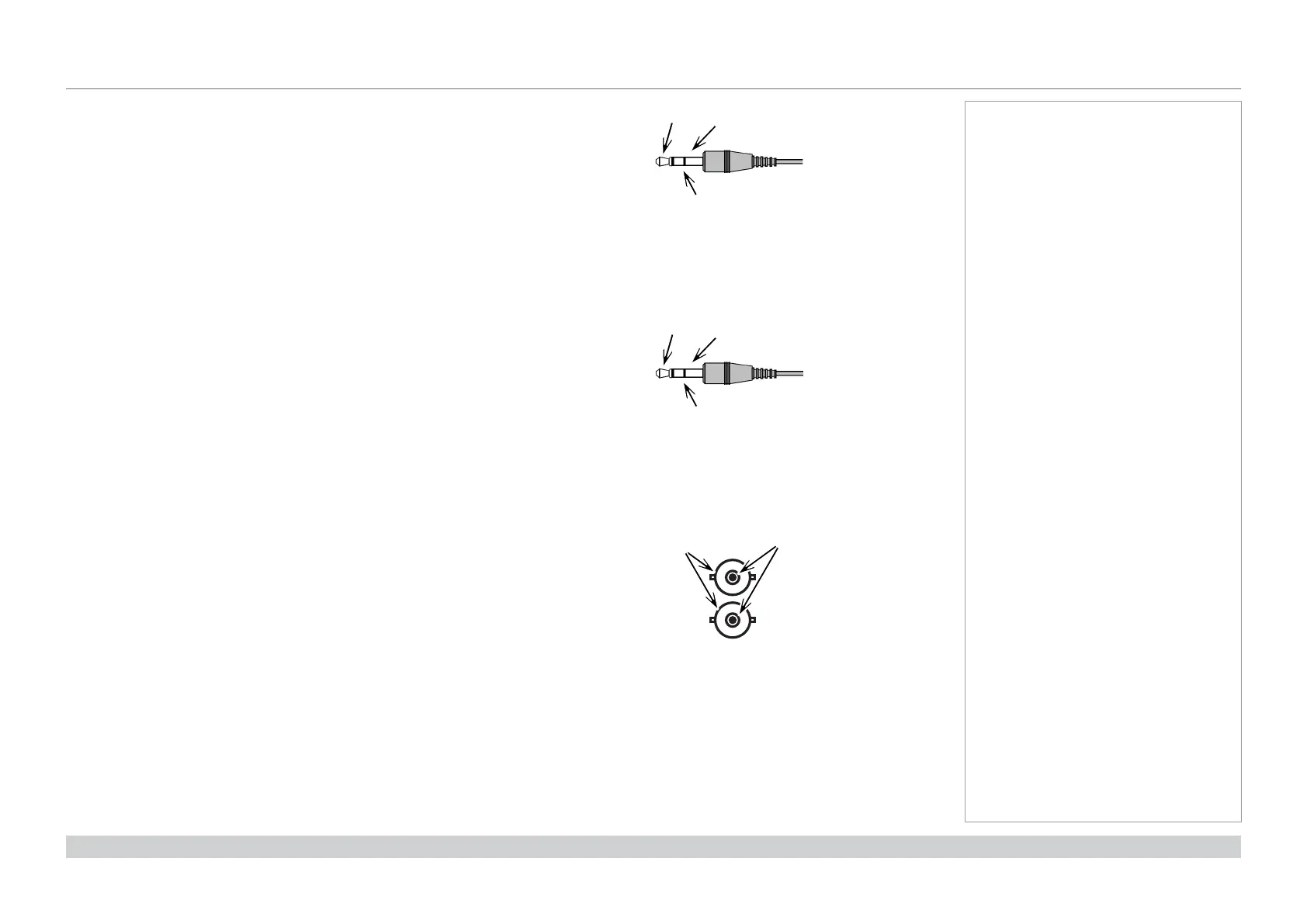

Trigger 1 & Trigger 2
3.5 mm mini jack
Tip Trigger
Ring Not connected
Sleeve Ground
Output: 12V, 200 mA max
Wired remote control
3.5 mm mini jack
Tip 3V output
Ring Signal
Sleeve Ground
Output: 2.85-3.15V, Max. 500 mA
Sync IN and Sync OUT
75 ohm BNC
Max input / output voltage: 5.5V
Notes
Sleeve
Ring
Tip
Sleeve
Ring
Tip
Signal
pin view of female connector
Ground
