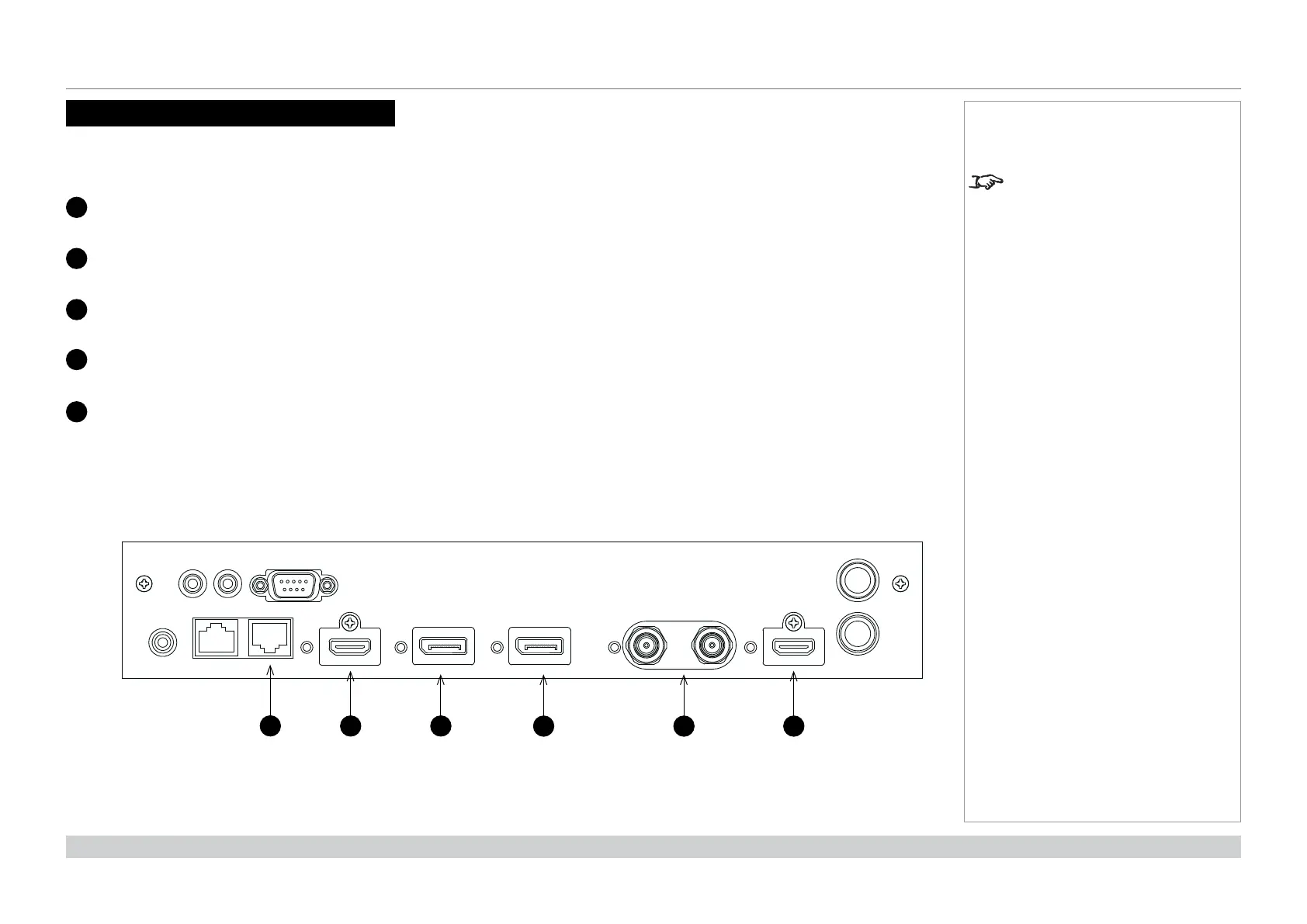

SIGNAL INPUTS AND OUTPUTS
Rev D October 2019
Signal Inputs and outputs
Digital inputs and outputs
1
HDBaseT
Receives digital signal from HDBaseT-compliant devices.
2
HDMI 1
HDMI 1.4a.
3
DisplayPort 1 / DisplayPort 2
DisplayPort 1.1a.
4
3G-SDI in / 3G-SDI out
From the 3G-SDI out port, connect a 3G-SDI cable to distribute the 3G-SDI signal to another projector.
5
HDMI 2
HDMI 1.4a.
Notes
For simultaneous HDBaseT and
LAN connectivity, a third-party
distribution product can be utilised
to combine HDBaseT video stream
with LAN connection for delivery to
the projector.
3D SYNC - OUT
RS-23212TRIGGER
1
2 3
4 53
