Digital Projection M-Vision Laser 18K Series
Connection Guide
SIGNAL INPUTS AND OUTPUTS
Rev D October 2019
EDID on the DisplayPort, HDMI and HDBaseT inputs
If you are using a computer graphics card or another source that obeys the EDID protocol, the source will automatically confi gure itself to suit
the projector.
Otherwise refer to the documentation supplied with the source to manually set the resolution to the DMD™ resolution of the projector or the
nearest suitable setting. Switch off the source, connect to the projector, then switch the source back on again.
Using DisplayPort/HDMI/HDBaseT switchers with the projector

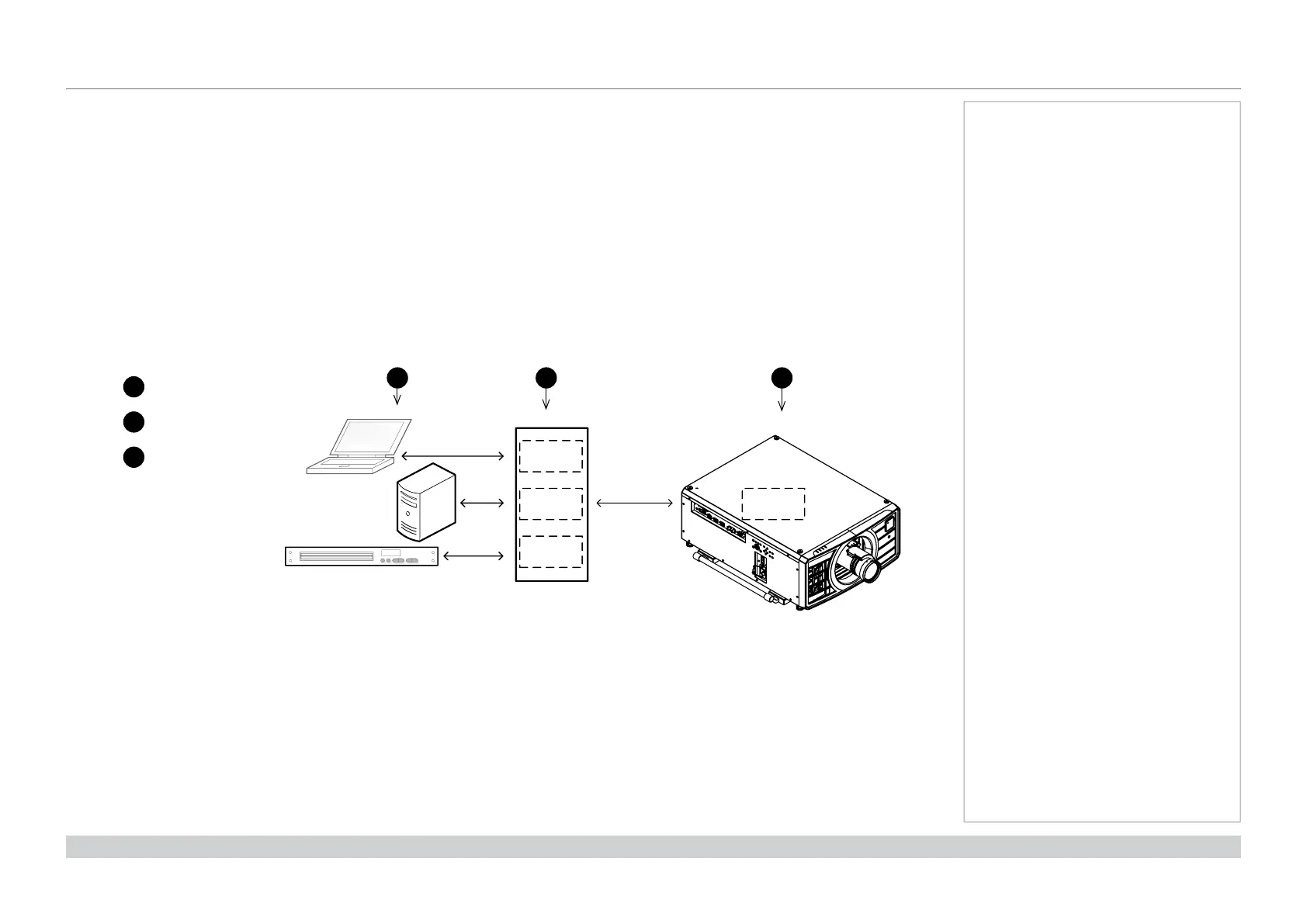

When using a DisplayPort/HDMI/HDBaseT source switcher with the projector, it is important to set the switcher so that it passes the projector
EDID through to the source devices. If this is not done, the projector may not be able to lock to the source or display the source correctly as
its video output timings may not be compatible with those of the projector. Sometimes this is called transparent, pass-through or clone mode.
See your switcher’s manual for information on how to set this mode.
1
Sources
2
Switcher
3
Projector
Notes
The EDIDs in the switcher should be the same as the one in the projector.
1 32
EDID
EDID
EDID
EDID
