Digital Projection M-Vision 18K Series - Arc; Custom Warp

page 58
Digital Projection M-Vision Laser 18K Series
Operating Guide
USING THE PROJECTOR
Rev D October 2019
Geometry menu continued from previous page

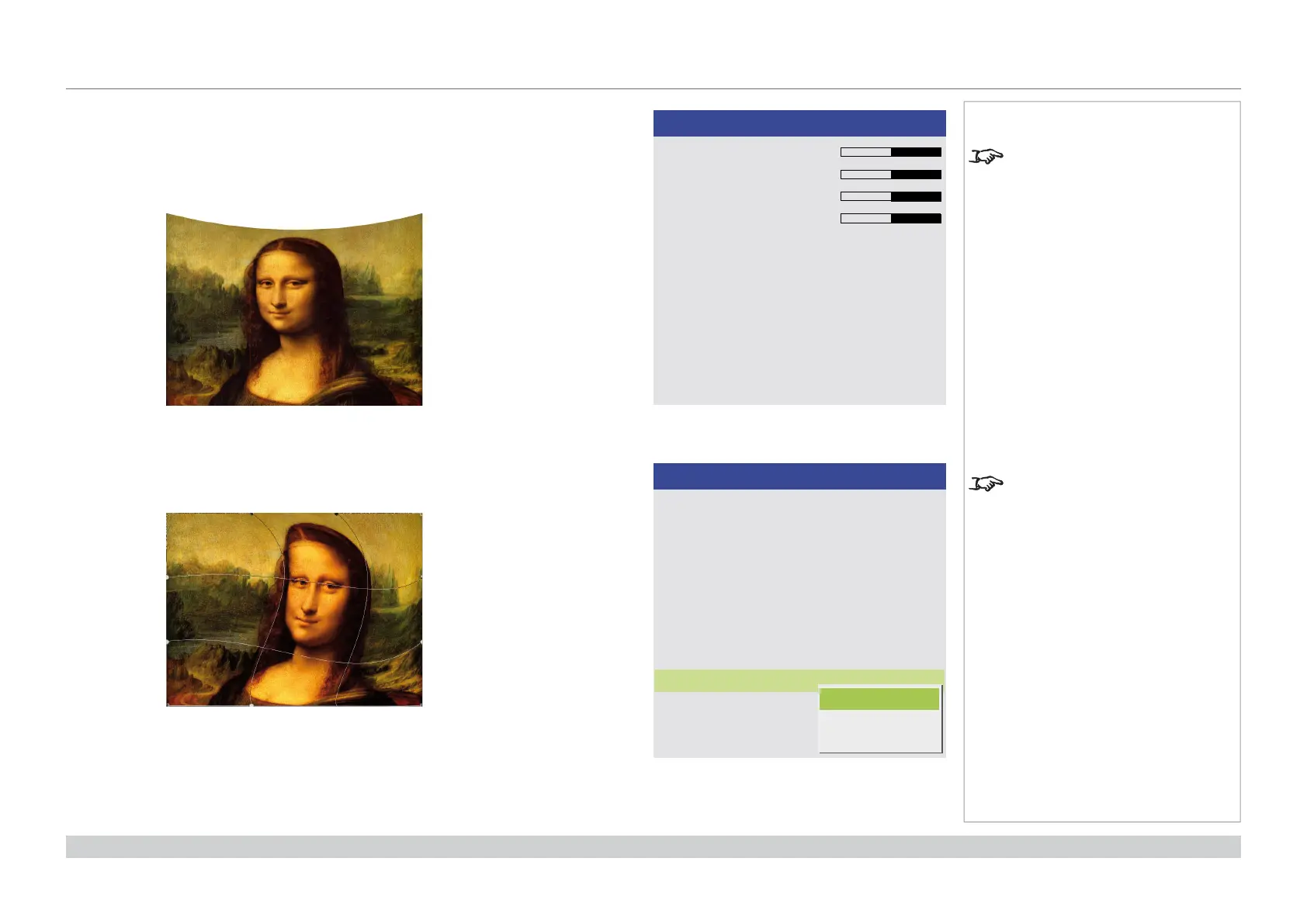

Arc
This feature is similar to
Pincushion / Barrel but allows you to apply curvature to each
edge of the image independently so you can have any combination of corrections.
Custom Warp
Settings User 1 and User 2 are selections of user created predownloaded custom warp maps.
Arc
Top
Reset
0
Bottom
0
Left
0
Right
0
Notes
Please note that a positive Arc
value on any edge will reduce the
image size as the projector needs to
maintain the aspect ratio.
A negative
Arc value will not aff ect
the overall image size.
Custom warp maps may be created
using the Digital Projection -
Projector Controller PC
application.
The Projector Controller software
is available for download from the
Digital Projection website, free of
charge.
Geometry
Digital Zoom & Shift
Overscan
Aspect Ratio
Blanking
4 Corners
Rotation
Keystone
Pincushion / Barrel
Custom Warp
X
X
Off
Source
X
X
X
X
Off
User 1
User 2
X
