DCS-3950 series Ethernet switch manual
Step 2 Entering HyperTerminal.
Open the HyperTerminal included in Windows after the connection established.
1) Click Start menu - All Programs – Accessories – Communication - HyperTerminal.
2）Type a name for opening HyperTerminal, such as ‘Switch_A’.

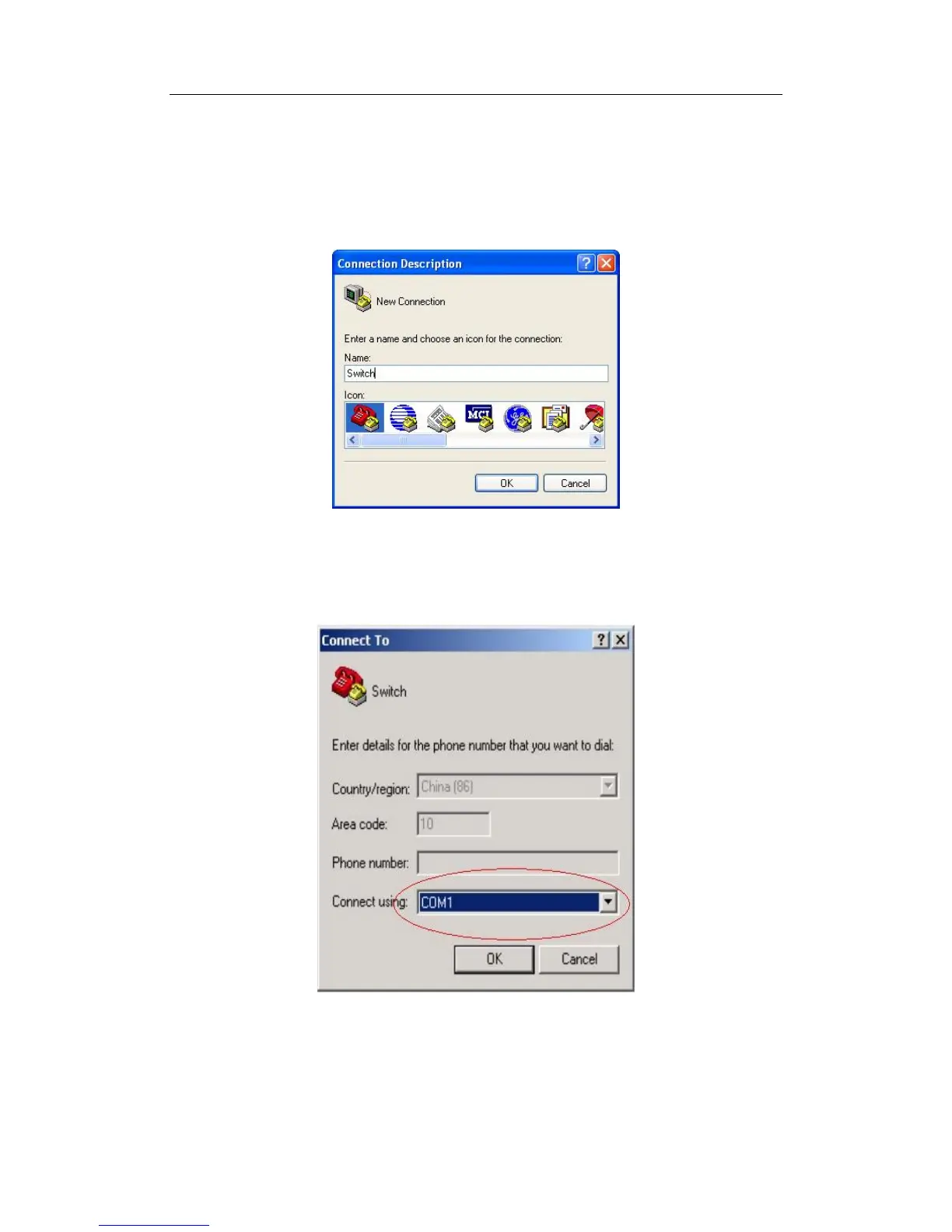

Fig 4-2 Opening HyperTerminal
3）In the ‘Connecting with’ drop-list, select the RS-232 serial port used by the PC, e.g.
COM1, and click ‘OK’.
Fig 4-3 Opening HyperTerminal
4）COM1 property appears, select ‘9600’ for ‘Baud rate’, ‘8’ for ‘Data bits’, ‘none’ for ‘Parity
