1.4 OPERATOR MOUNTING
Remove the operator from its shipping carton. Be sure to check the packing list against the shipment
to be sure all necessary components are on hand.
1. Position the operator so that it is centered on the mounting pad and the door is facing
away from the traffic lane.
2. Open the door of the operator and mark the mounting holes on the pad. Remove the
operator from the pad.
3. Use a concrete drill bit and drill the mounting holes to the size and depth required for the
anchors being used. Be sure to clean out the hole after you drill it. We recommend 3/8 x
3 or ½ x 3 inch sleeve anchors. Anchors are not supplied with the operator.
4. Reposition the operator on the mounting pad. Install the sleeve anchors in the mounting
holes and tighten.

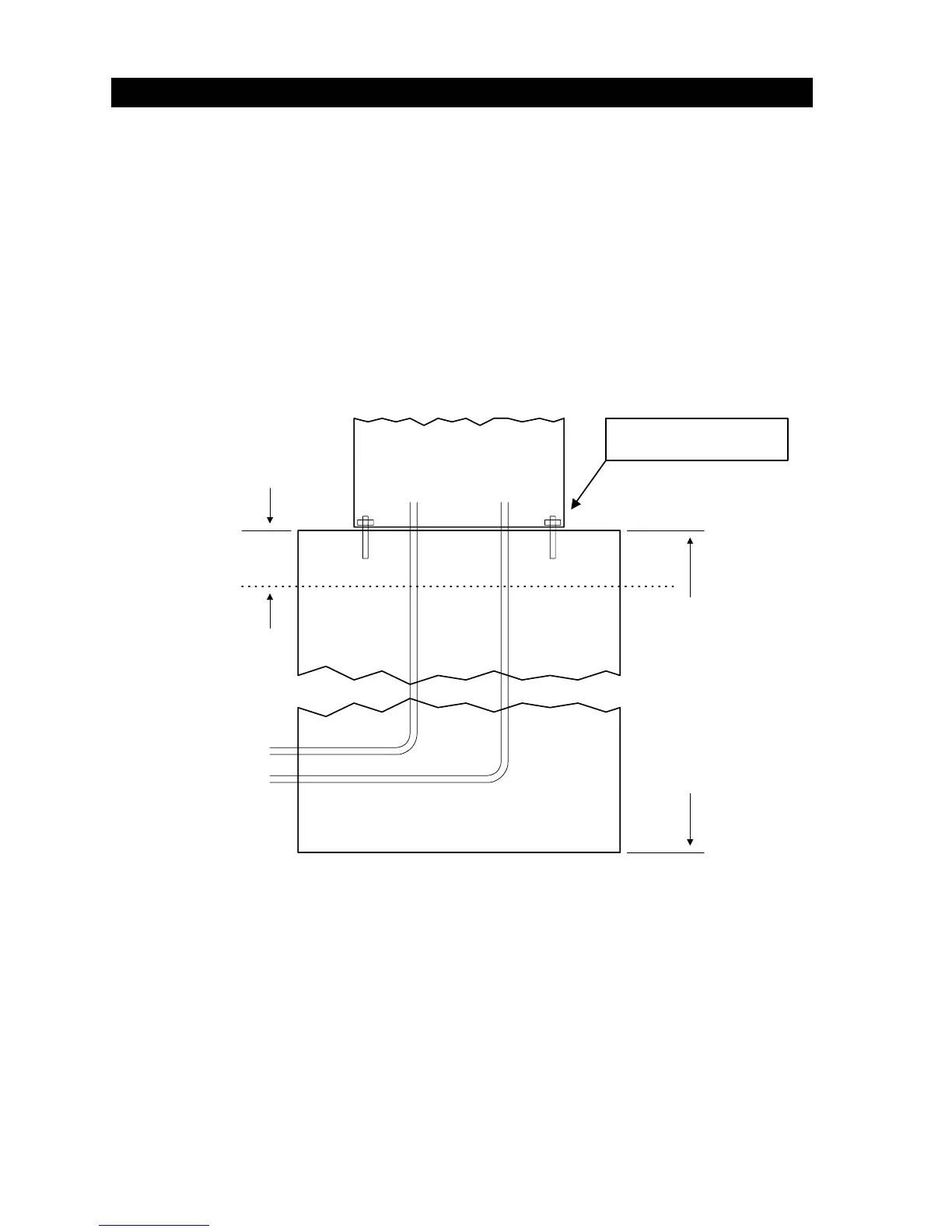

Ground Level
4 Min.
Depth determined by soil
conditions and local code.
3/8 x 3 Sleeve Anchors
(Not supplied)
Conduits
Figure 4
