SECTION 1 - INSTALLATION
Prior to beginning the installation of the barrier gate operator, we suggest that you become familiar
with the instructions, illustrations, and wiring guidelines in this manual. This will help insure that your
installation is performed in an efficient and professional manner.
The proper installation of the vehicular barrier gate operator is an extremely important and integral
part of the overall access control system. Check all local building ordinances and building codes prior
to installing this operator. Be sure your installation is in compliance with local codes.
1.1 SPECIFICATIONS
Class of Operation: Class II, III, IV
Type of Gate: Vehicular Barrier Gates Only
Horsepower: 1601 - 1/2 H.P., 1602 - 1 H.P.
Voltage / Phase: 120, 230, 460 VAC / Single Phase
Current: 1601 - 5.4 @ 120V; 2.7 @ 230V; 1.35 @ 460V
1602 – 14.0 @ 120V; 7.0 @ 230V; 3.5 @ 460V.
Max Arm Length: 1601 - 14 Ft. (wood arm), 12 Ft. (plastic arm)
Max Arm Length: 1602 - 20 Ft. (three piece wood arm only)
Cycles / Hr: 1601 – 500, 1602 – 60
Speed: 1601 – 90° in approximately 1.5 seconds
1602 – 90° in approximately 5 seconds

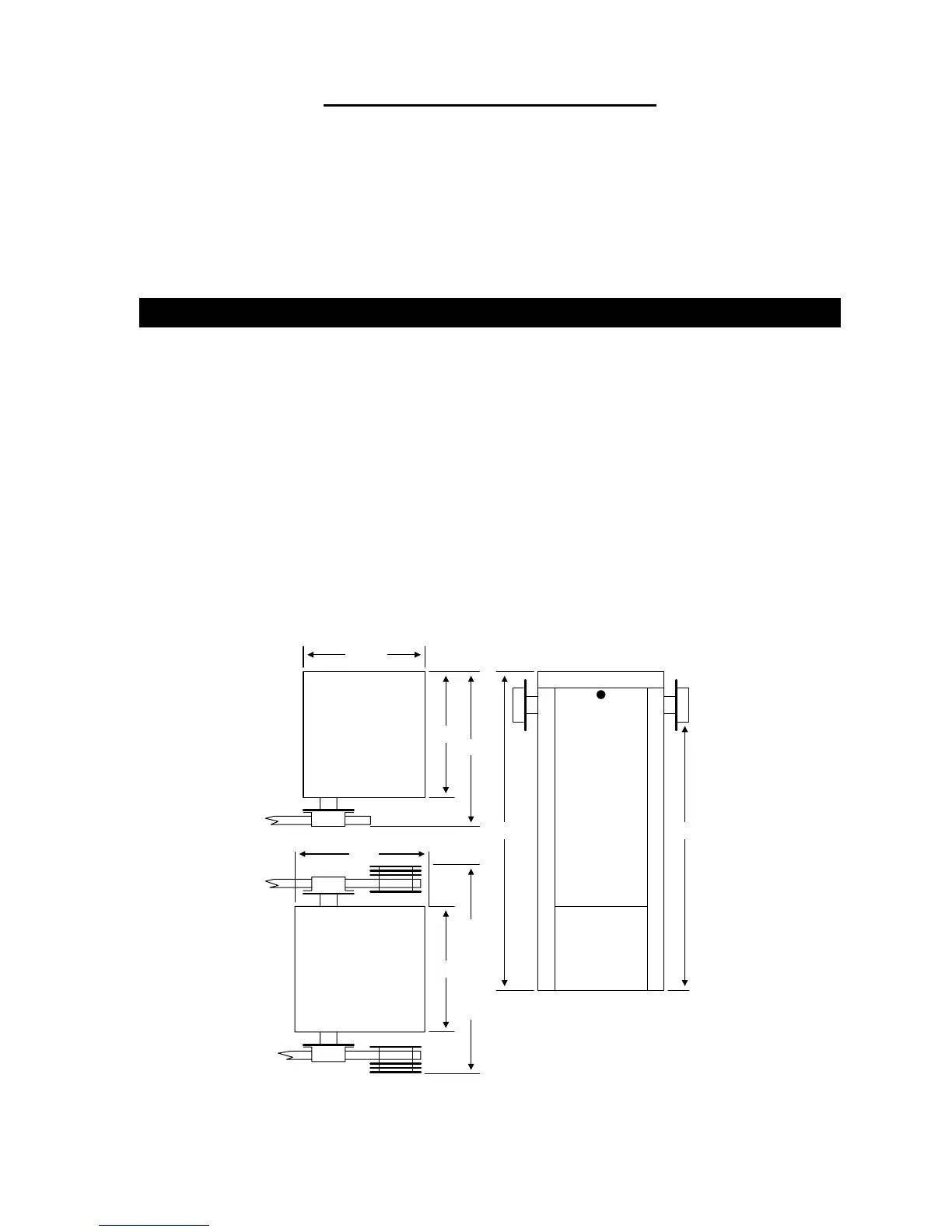

1601 Operator
1602 Operator
14.75
15
18.75
15
38 32
Dependant on number
of weights used
15.75
Figure 1
9
