2.3.2 MASTER / SLAVE CONTROL WIRING
Two 1601 or 1602 operators may be wired together so that the units operate in unison as a master /
slave set. Each operator must be connected to its own high voltage source as described on page 8.
1. Connect terminal 6 to terminal 6.
Connect terminal 8 to terminal 8.
Connect terminal 9 to terminal 9.
Connect terminal 14 to terminal 14.
2. If an open loop is used, plug the loop detector into the UP loop port of either unit.
Set programming switch 5 to ON.
Jumper terminal 12 to terminal 6.
Jumper terminal 13 to terminal 14.
3. If a down loop is used, plug the loop detector into the DOWN loop port of the
opposite unit.
Set programming switch 5 to OFF.
Jumper terminal 12 to terminal 8.
Jumper terminal 13 to terminal 14.
4. Connect control devices to the master unit as described in section 2.3.1.

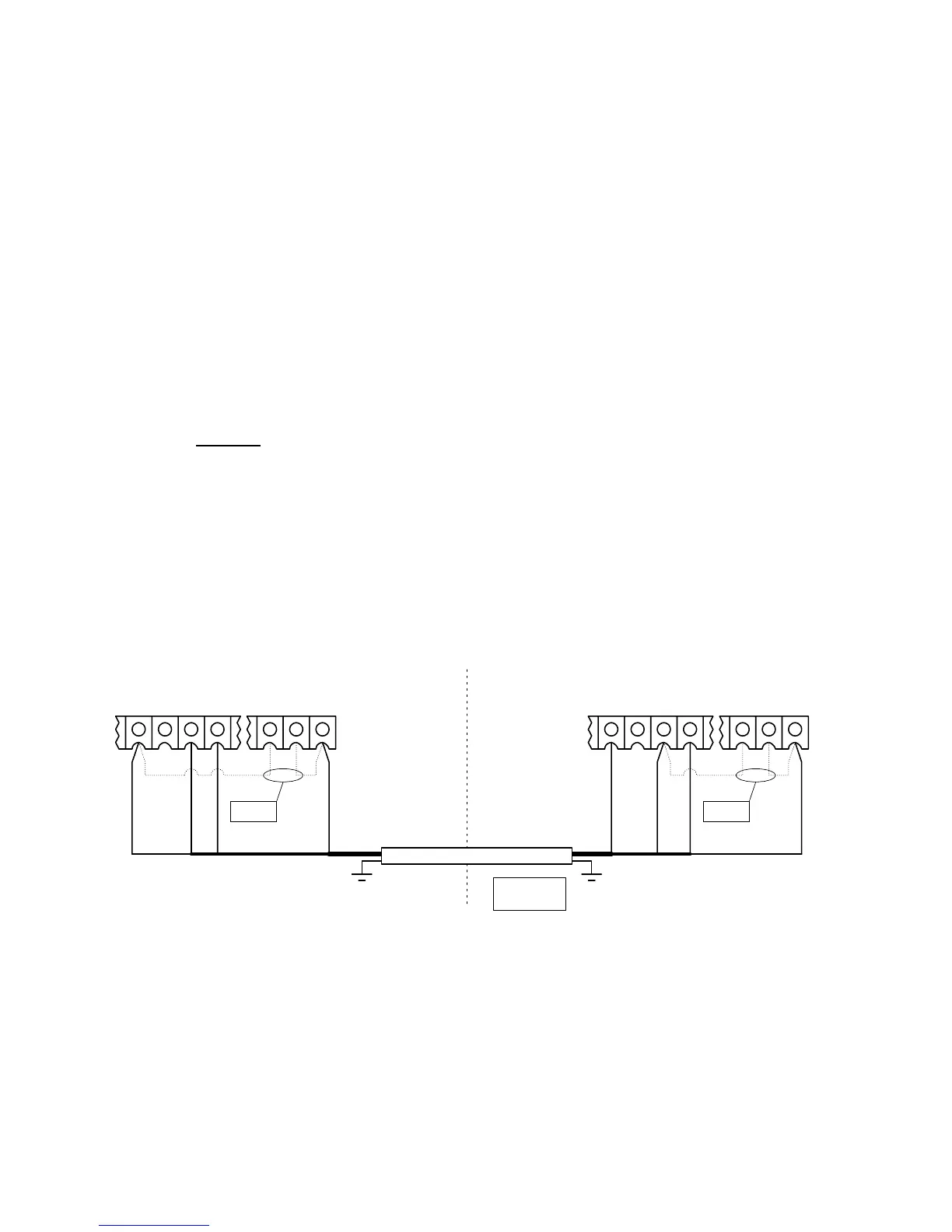

678 149 1312 1413126789
Master / Slave Conduit
Step 2
Master
Slave
Step 3
Yellow
Brown
Orange
Gray
Gray
Yellow
Orange
Brown
Cable P/N
2600-755
Figure 10
