4.1.2 ARM MOUNTING HUB INSTALLATION
Follow these instructions to install the arm mounting hub onto the 1601 and 1602 operators. The
1602 operator requires a mounting hub on each side of the operator housing to accommodate the
wishbone style arm.
1. Be sure that the shaft rotation has been checked as described in 4.1.1.

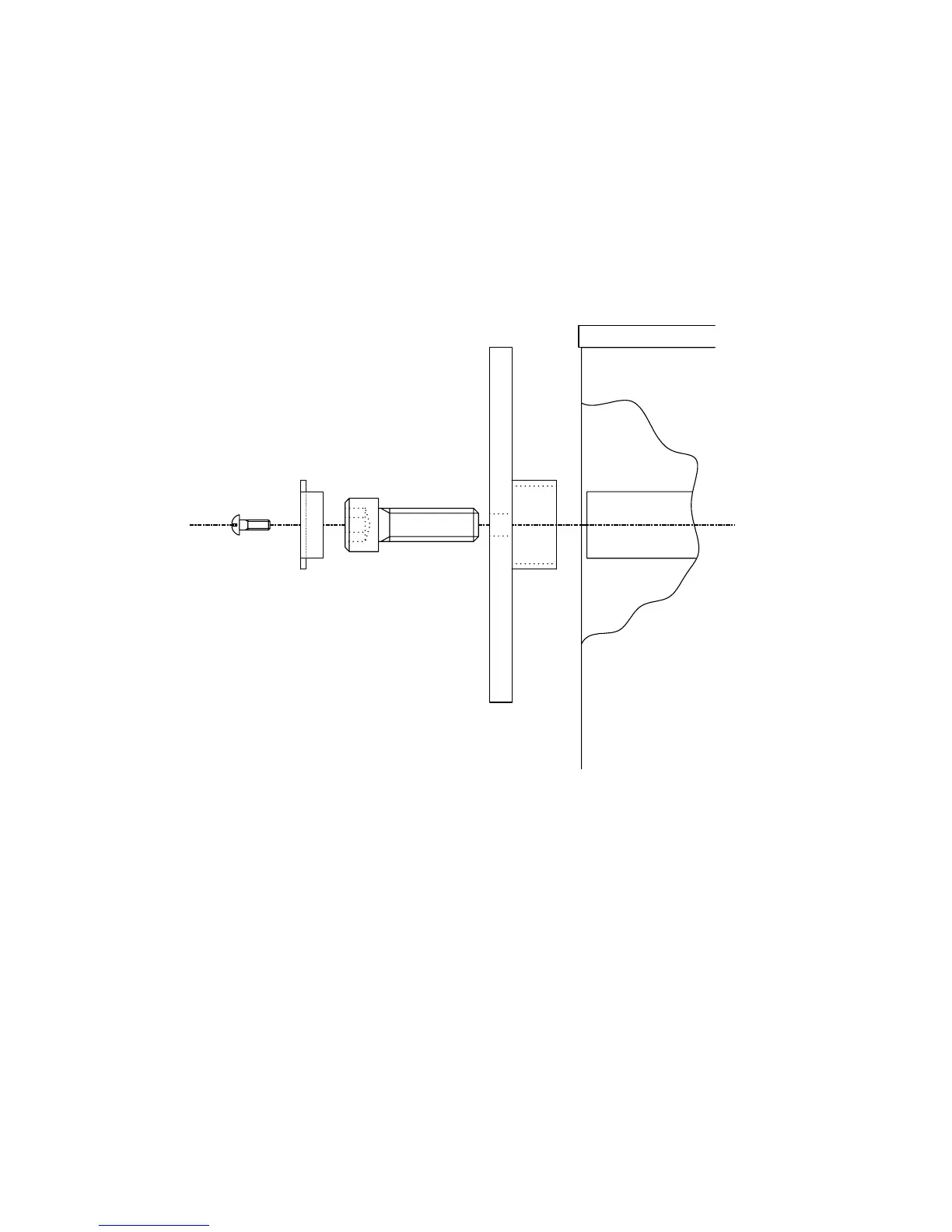

2. Install the arm hub using the supplied hardware as shown in the illustration below.
Bolt, Hex Head 1/2-13 x 1 1/2 Locking Plate Screw 10-32 x 1/2
Arm Mounting Hub
Operator Housing
Figure 24
