DKS 1601 - PAMS Control Wiring

2.3.3 PAMS CONTROL WIRING

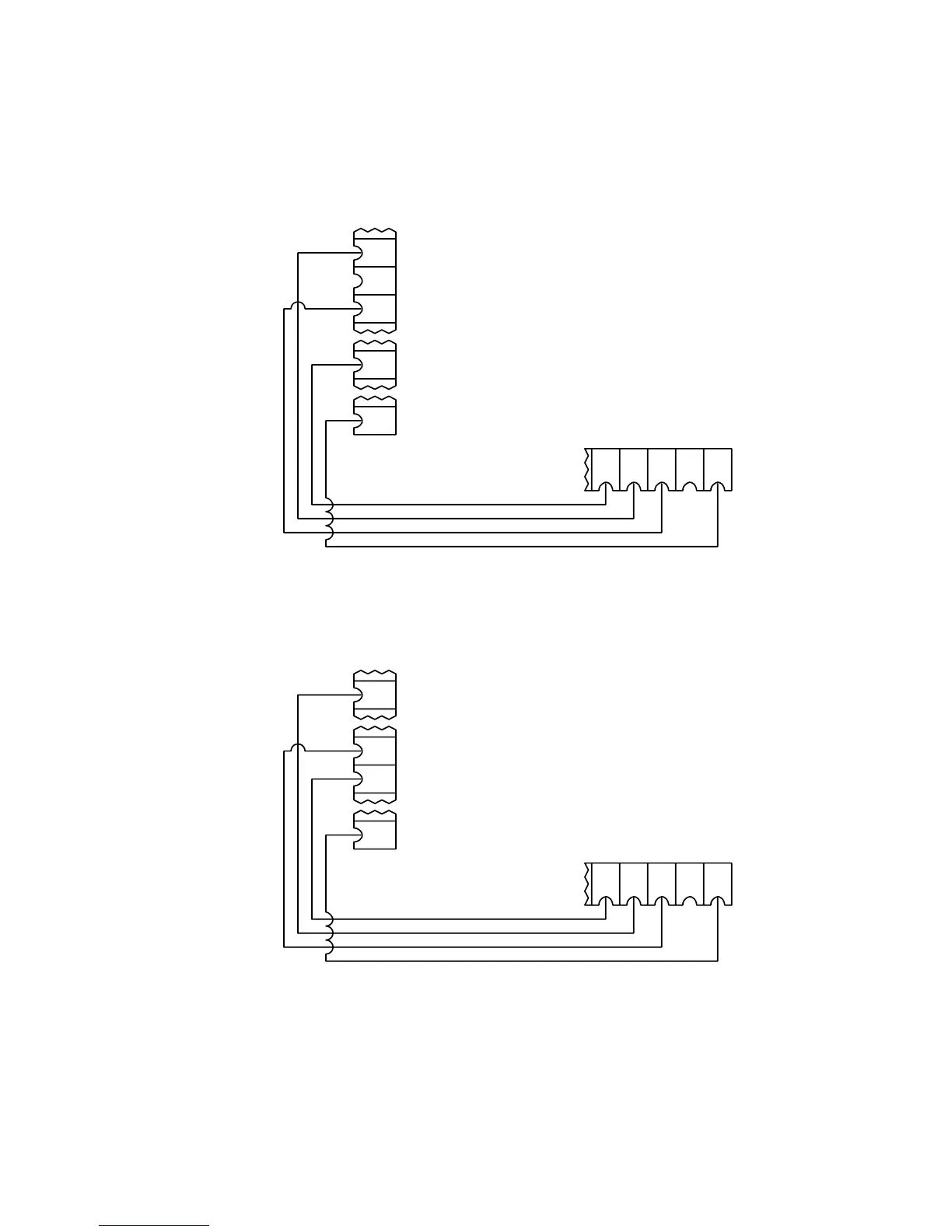

If this operator is used in a Perimeter Access Management System (PAMS) application, refer to the
diagrams below for PAMS wiring interface to sequence the barrier operator with the slide or swing
gate operator. For detailed PAMS wiring information, refer to the PAMS Technical Information and
Wiring Manual.
18
15
6
5
4
1413121110
DoorKing Slide Gate Operator
1601 / 1602
Barrier Operator
Figure 12
20
16
15
11
1413121110
DoorKing Swing
Gate Operator
1601 / 1602
Barrier Operator
Figure 11
19
