Dnepr MT10-36 - Page 10

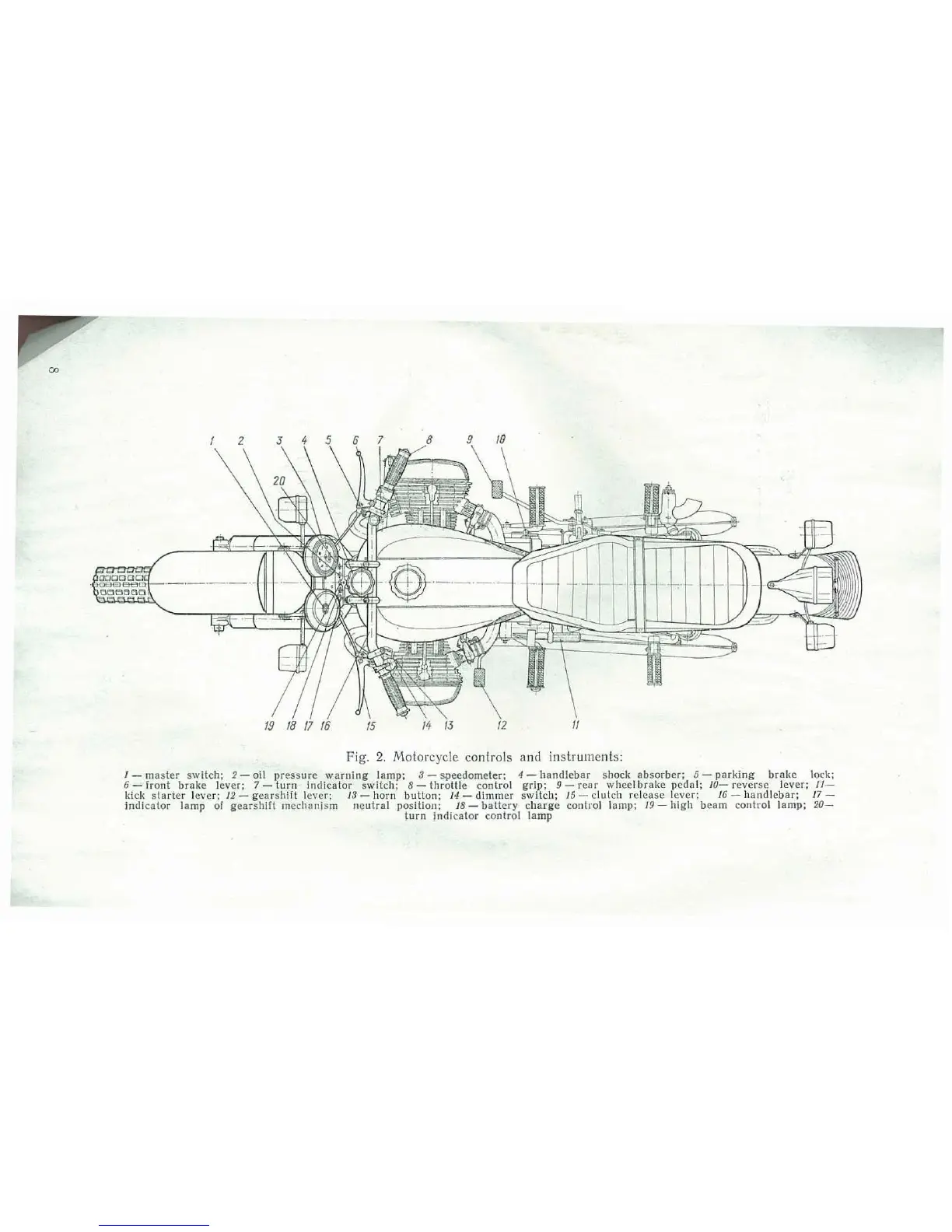

Fig. 2. Motorcycle controls and instruments:
I- master switch; 2- oil pressure warning lamp; 3- speedometer; 4- handlebar shock absorber; 5 - parking brake lock;
6 - fro nt brake lever; 7- turn indicator switch; 8- throttle control gr ip; 9- rear wheel brake p edal; 10- reverse lever; /1-
kick star ter lever; 12 - gearshift lever; 1 3- horn button; 14- dimmer switch; 15 - clutch release lever; 16- handlebar; /7-
indi cator lamp of gearshift mechanism neutral position; 18- battery charge control lamp; 19- high beam control lamp; 20-
~urn indicator control lamp
