Dnepr MT10-36 - Shock Absorber Construction Diagram

2
.3
I;
5
s
]
10
11
12
/J

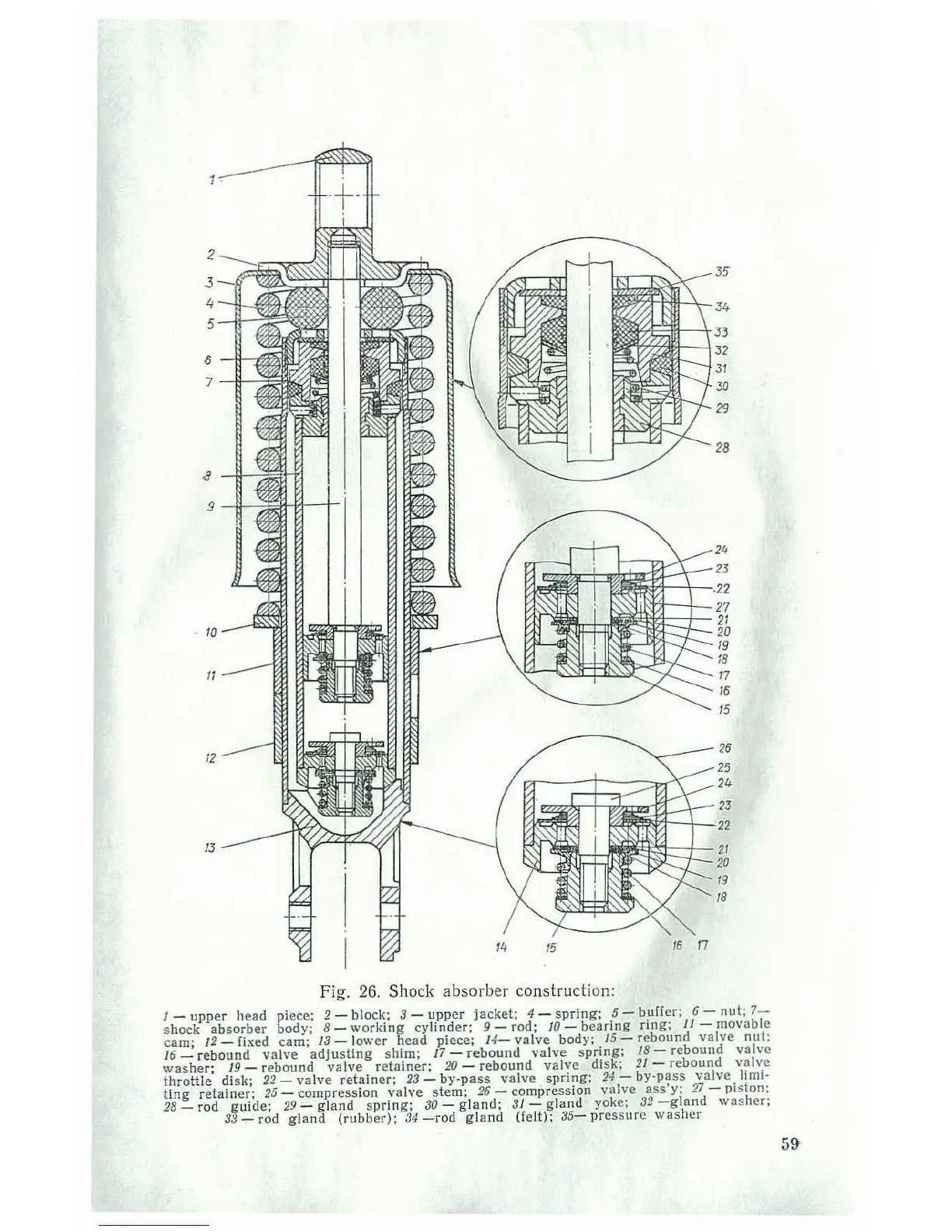

Fig. 26. Shock absorb er construction:
J - upper head piece; 2- block; 3 - upp er jacket; 4 - spring; 5- buffer; 6- nut; 7-
shock ab sorber body; 8 - working cylinde r; 9 - rod; 10 - bear ing ring: II- movable
cam; 12 - fixed cam; 13 - l ower head piece; 14 - valve body; 15- rebound valve nut;
16- re bo und valve adjusting shim; /7 - r ebound va l ve sp ring; 18 - rebound valve
washe r; 19- rebound valve retainer; 20 - rebound valve disk; 21 - rebound valve
throttle disk; 2 2- va l ve r etainer; 23- by-pa ss valve spring; 24- by-pass valve limi-
ti ng retainer; 25 - compression va l ve s tem; 26 - compr ess ion valve ass'y; 27- piston:
28 - rod guide; 29 - gland spr ing; 30 - gland; 31 - gland yoke; 32 - gland washer:
33 - rod g land (ru bber); 34 - rod gland (felt); 35- pr essure washer
