Carbure ttor s
The engine is supplied from two (right - hand and left- hand) car -
burettors K30l.U or K3 01 13 , wh ich are similar in desig n but not in -
'ter
changeable . The ca r buretto rs are i nstalled on the cylinder heads.

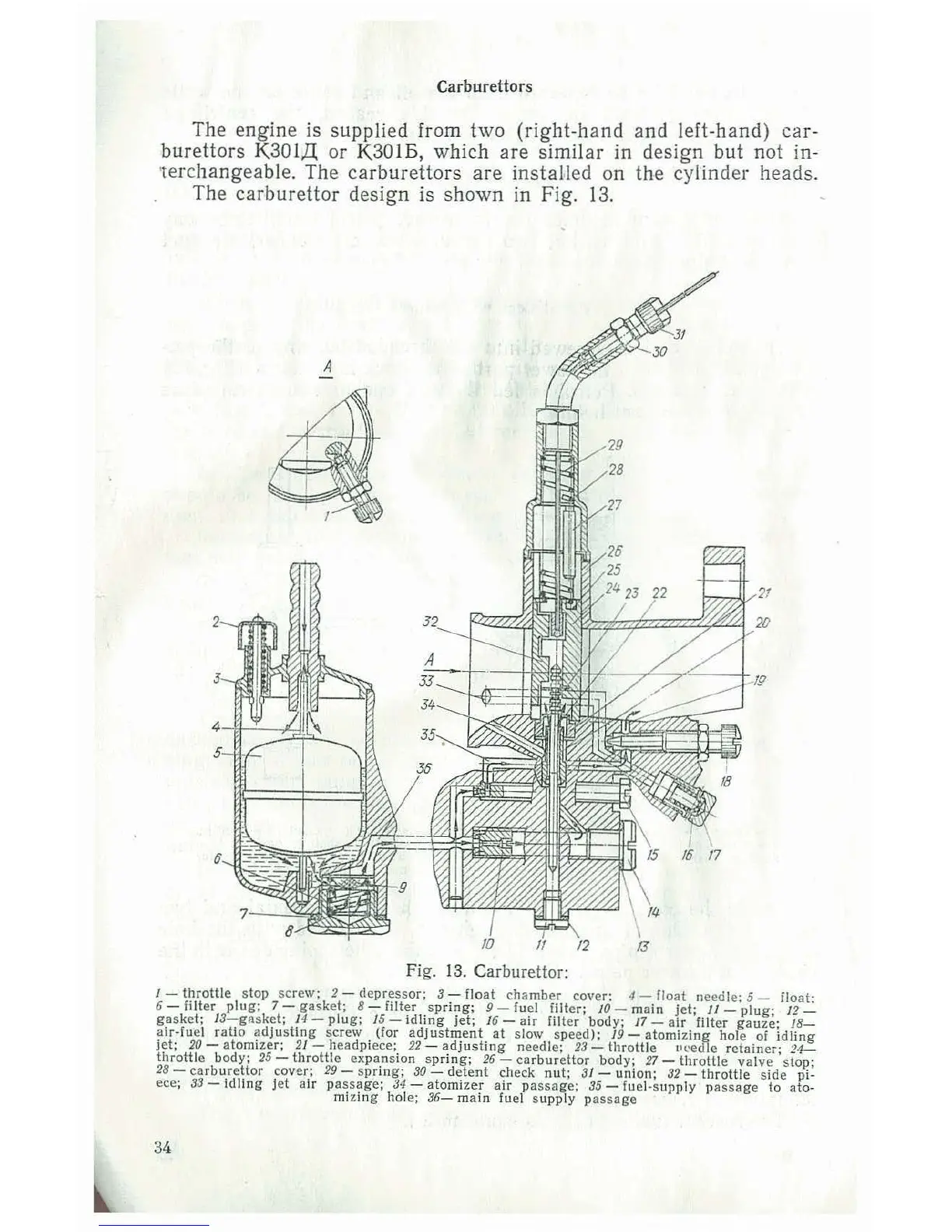

The carburettor desig n is shown in Fig. 13.
Fig. 13 . Carburettor:
I- throttle stop screw; 2 - depressor; 3 - rioat chamber cover: 4- float needle: S- iloat:
6 - filter plug: 7- gasket; 8- filter spring; 9- fuel filter; 10- main jet; /1 - plug; 12-
gasket; /3-g asket; 14- plug; 15- idling jet; 16 - air filter body; J7- air filter gauze; 18-
air-fuel ratio adjusting screw (for adjustment at slow speed); 19- atomizing hole of idling
jet; 20- atomizer; 21- headpiece; 22 - adjusting needle; 23- throttle "''edle retain er; 24-
throttle body: 25- throttle expansion spri ng; 26 - carburettor body; 27 - throttle valv e stop;
28- carburettor cover; 29- spring; 30- detent check nut; 31- union; 32 - throttle side pi-
ece;
33- idling jet air passage; 34- atomizer air passage; 35- fuel·supply passage to ato-
mizing hole;
36- main fuel supply passage
34
