Dnepr MT10-36 - Front Fork Installation on Frame

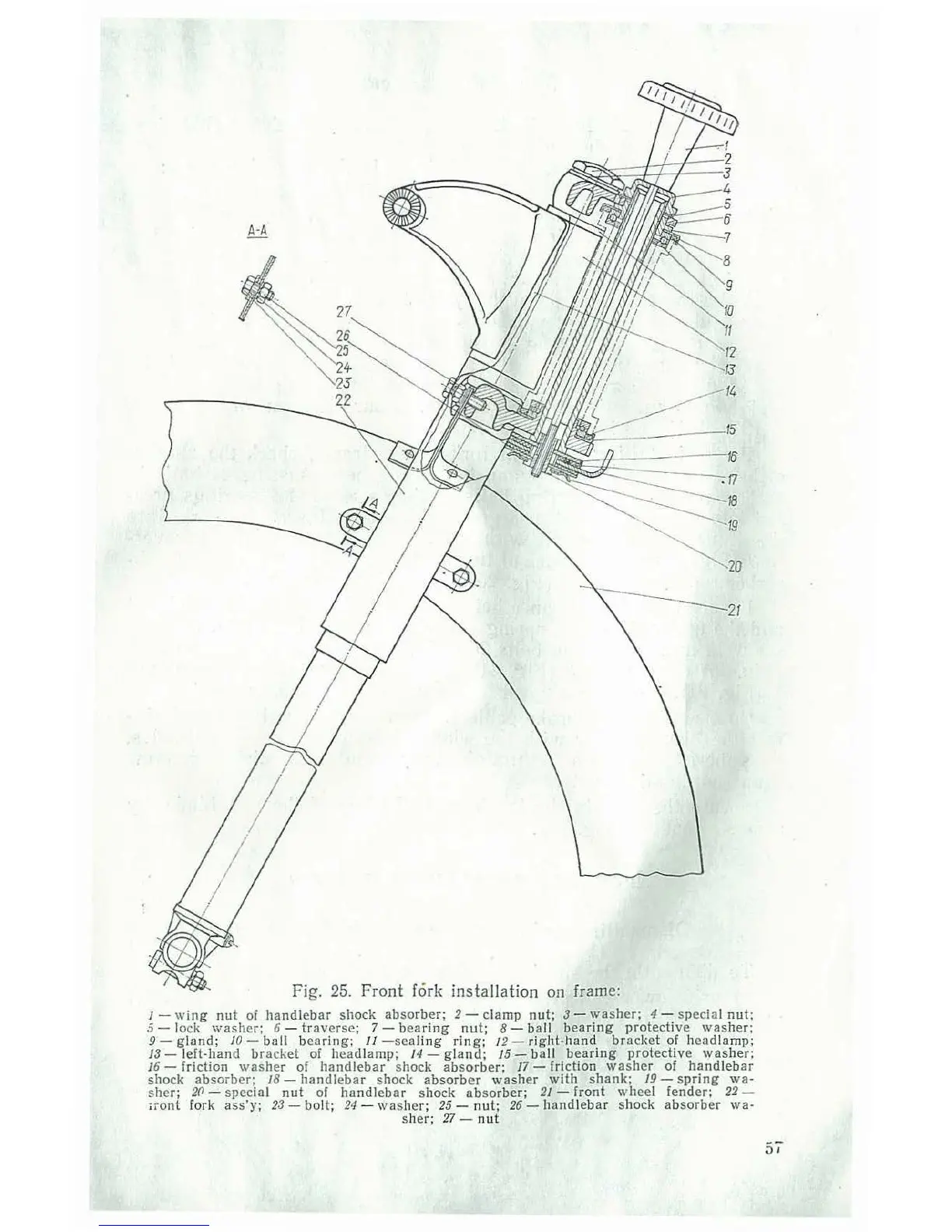

Fig. 25. Front fo rk installation on frame:
I- wing nut of handlebar shock absorber; 2- clamp nut; 3- washer; 4 - special nut;
5- lock wash er; 6 - traverse; 7 - bearing nut; 8- ball bearing protective washer;
9- gland; 10- ball b earing; 11-scaling ring; 1 2- right-hand bracket of head lamp:
13- left· hand bracket of headlamp; /4- gland; 15- ba ll bear i ng protective washer:
16- friction washer of handleba r shock absorber; /7- friction washer of hand l ebar
shock absorber; 18- handlebar shock absorber washer with shank; 19- sp ring wa-
she r; 2(1 - special nut of handlebar shock absorber; 21 - front wheel fender: 22-
;rent fork ass'y; 23- bo lt; 24 - washer; 25- nu t; 26- hand l ebar shock absorbe r wa-
she r; 27- nut
