Dnepr MT10-36 - Front Fork Design

19 20 21 18 17 16
56

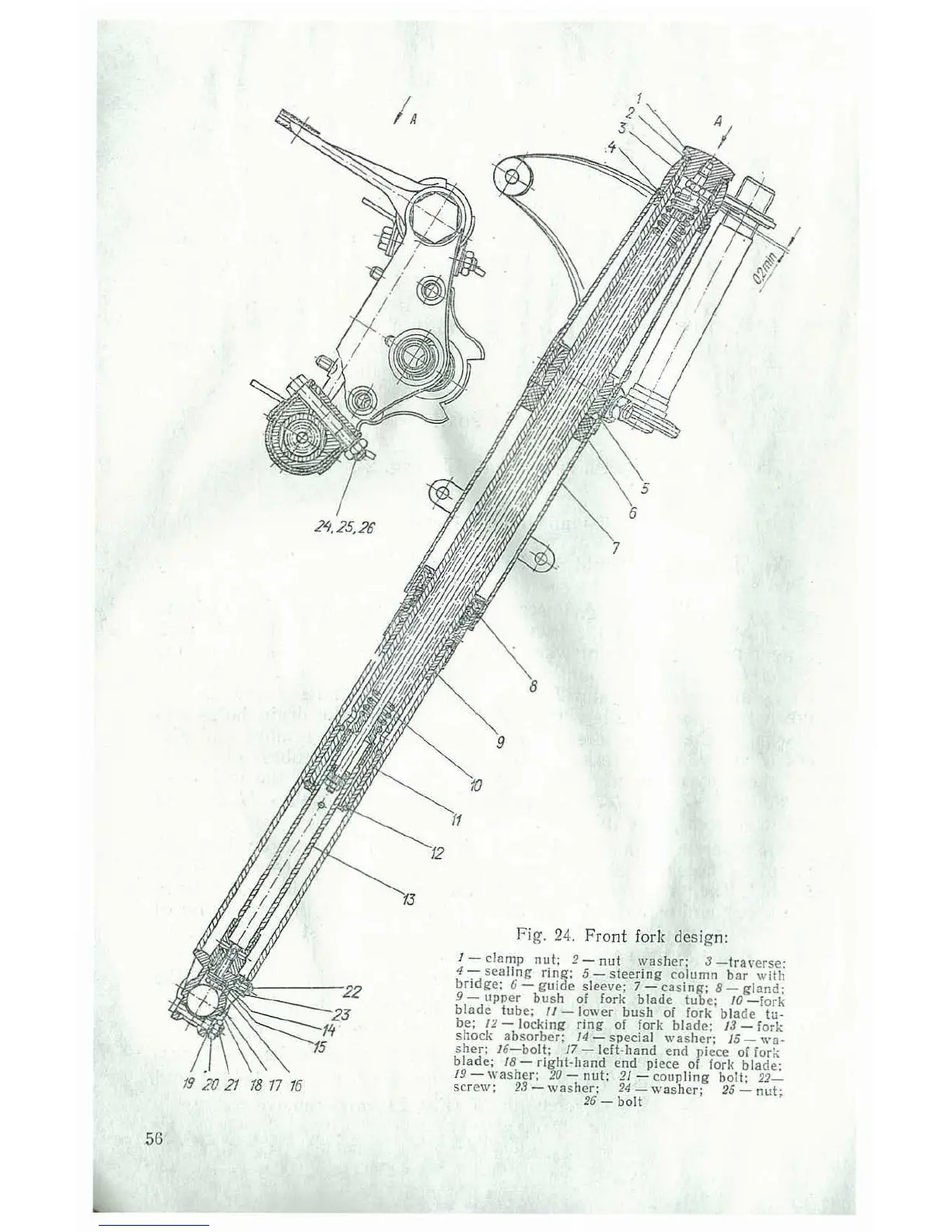

Fig. 24. Front fork design:
J - clamp nut: 2 - n ut was her: 3 -t r averse:
4 - scaling r ing; 5- st eer i ng column bar wilh
bridge: 6- guide sleeve; 7 - casing; 8- gland;
9- upper bush of fork blade tube; 10 - fork
blade t ube: II - lower bu sh of fo rk blade tu-
be; ll- locki ng ring of fork bl ade; 1 3- fork
shock absorber; 14 - special washer; 15- wa-
sher; 16 - bo!t ; 17- left-hand end piece of fork
bl ade; 18 - righ t· ha nd end pi ece of fork blade:
19- was h er; 20 - nut; 2 1- coupling bolt: 22-
scre w; 23- was h er: 24- wa sher; 25 - nut;
26- bolt
