Dnepr MT10-36 - Engine Cross-Section View

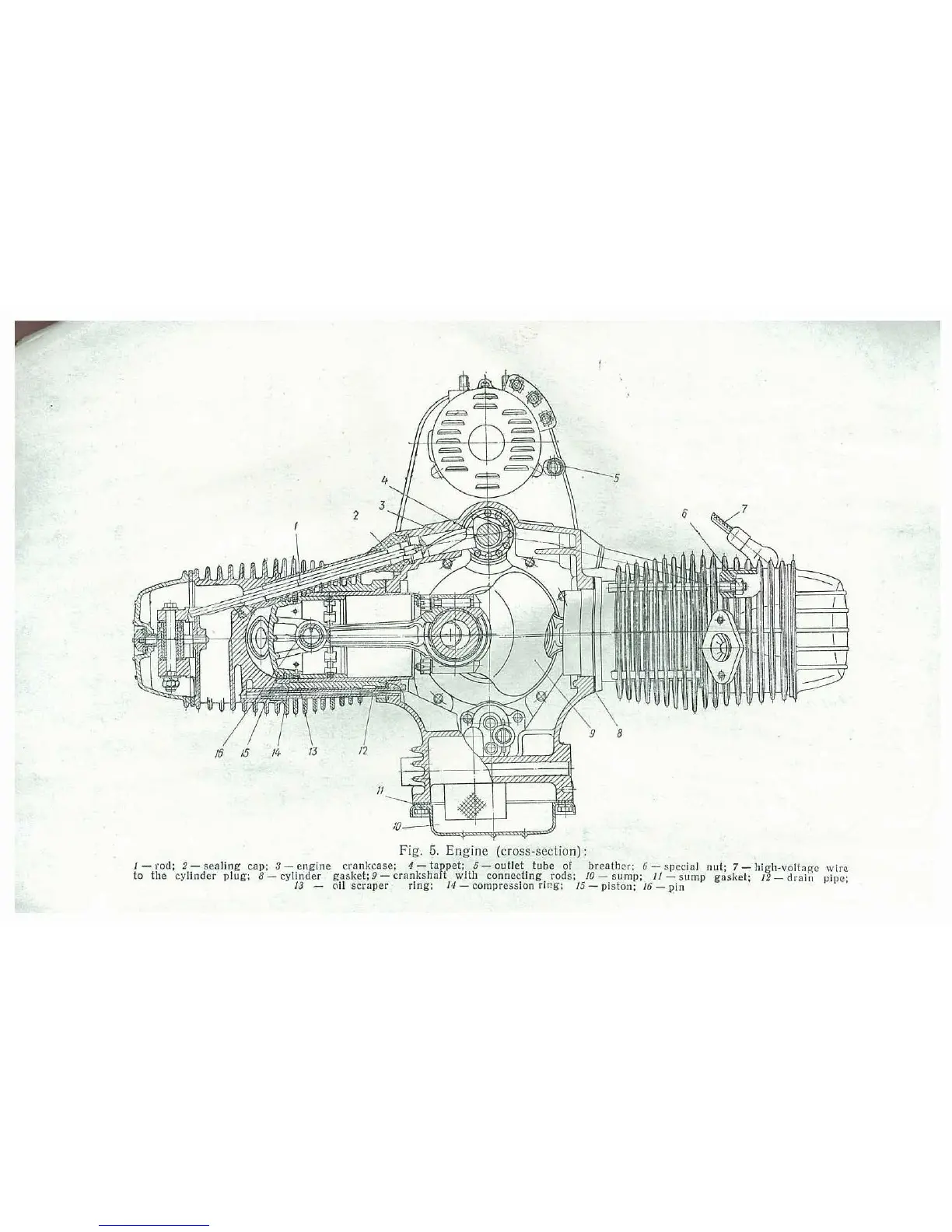

Fig. 5. Engine (cross-section):
I- rod; 2- sealing cap; 3- engine crankcase; 4 - tappet;, 5- outlet. tube of bre a th e r; 6 - special nut ; 7- hi gh- voltage wire
to the cyl in der pl ug; 8- cylinde r gasket; 9- cra nk shaft Wi th connec ting rods; 10- sump; II- su mp gasket; 12 - drain pipe·
13 - oi l scraper ring; 14 - compress ion ri r.g; 15 - pi sto n; 16 - pin '
