sition and ratsmg its lo ng ar m wi •th the roller of d ou ble- arm lev·er
located in si de the casing of the g ea r box.
The short arm of this lever acts on the intermediate co mpound
rod whose outer end presses on the adjusting . bolt of t. he outer
dllltch release lever.

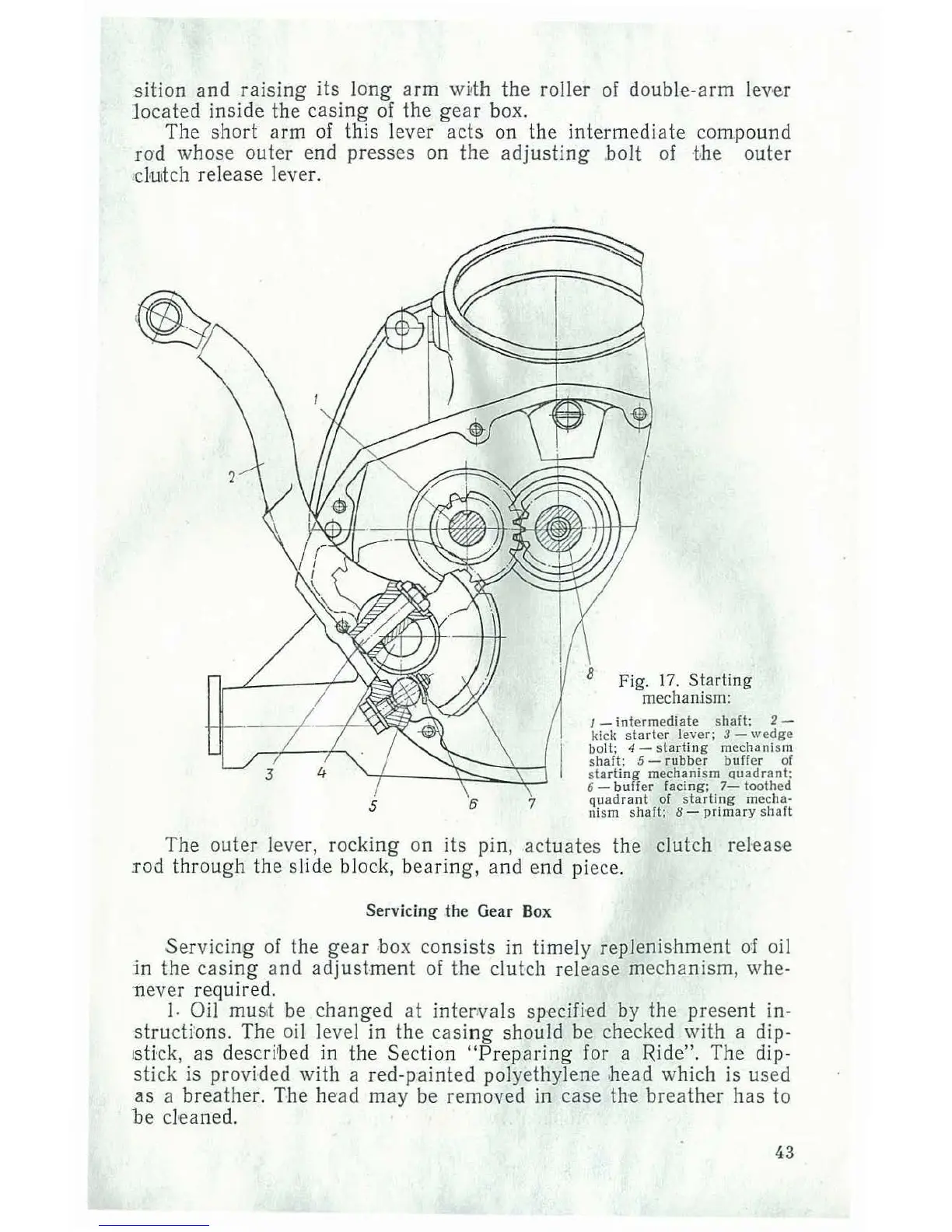

Fi g. 17. Starting
mec han ism:
1- intermediate shaft: 2-
kick start er lever; 3 - wedge
bolt; 4 - start ing mechanism
shaft;
5- rubber buffer of
s tarting mechanism quadrant;
6 - buffer facing; 7- toothed
quadr
ant of starting mecha-
nism sha
lt ; 8 - pr im ary shaft
The oute r lever, rocki ng on its pin, actu ates the clu tch release
rod through the sli de block, be a ring, and e nd piece.
Servicing the Gear Box
Servic ing of the gear box con sists in tim ely replenishment o·f oil
jn the casi ng and adjustment of the clutch release mechanism, whe-
n
ever required.
J. Oil must be chan ge d at in ter • vals specifi-ed by the present in-
structi on s. The oil level in the casi ng should be checked with a dip-
ISti·ck, as d escribe d in the S ect ion "Prep a ring for a Ride ". The dip-
stick is provided with a red-painted polyethylene . head wh ich is u sed
as a breathei. The h ea d may be r emove d in case the breather has to
be cl ea ned.
43
