2. As declutching is effected auto mat ically during a gearshift, the
driver, when shifting gears, d oes not h ave to use t he han d clukh
lever .
Given below
are various methods of clu tch control at gear -
shifts:
4

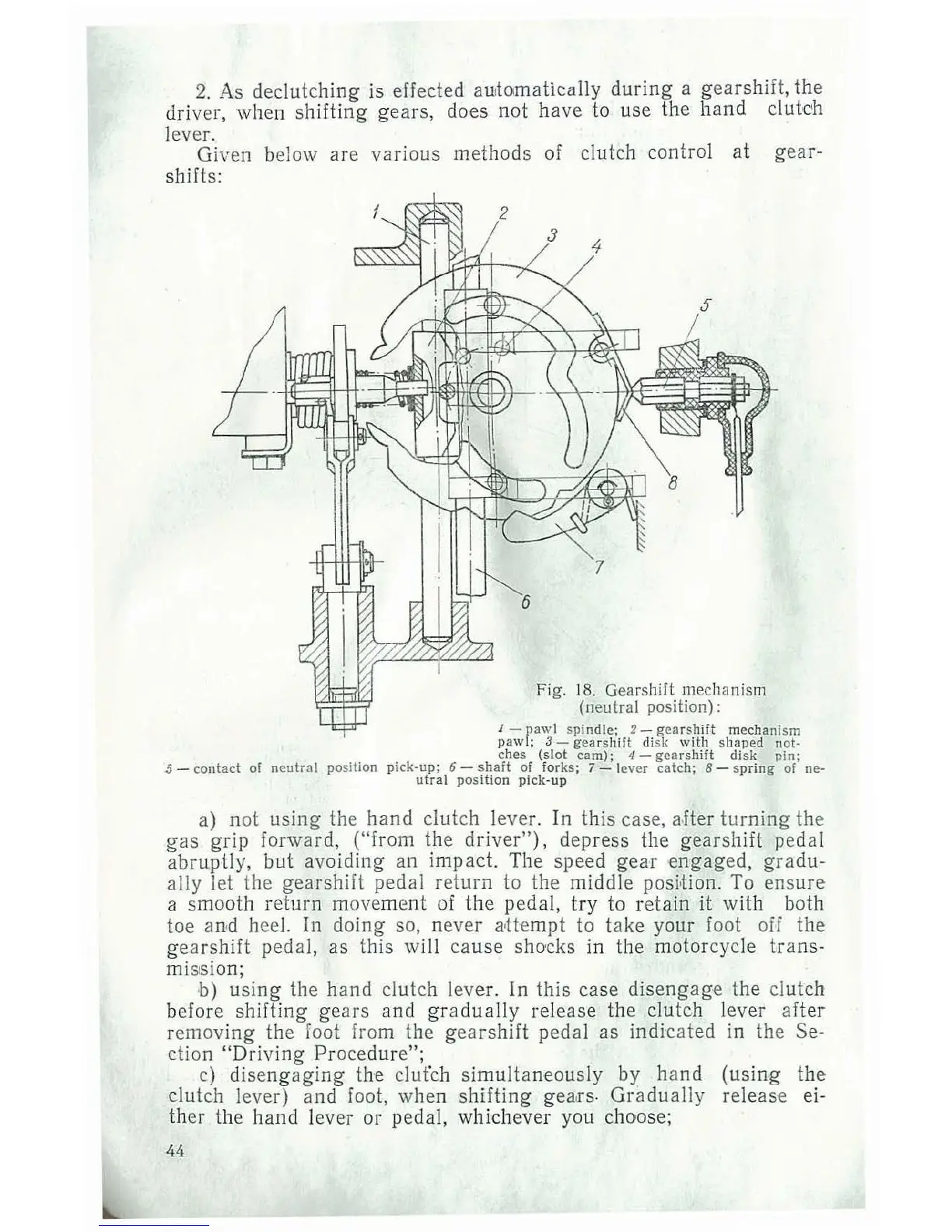

Fig. 18. Gearshift mechanism
(neutral position):
J - pawl spindle; 2- gearshift mechan is m
pawl; 3- gearshift disk with shaped not-
. . .
ches (slot cam); 4 - gearshift disk pi n;
~-contact or neu tr al pos1h on p1ck-up; 6- shalt or !orks; 7- le ve r catch; 8- spr ing or ne-
utra l po sition pick-up
a) not using th e hand clutch lever. In this case, a-fter turning th e
gas gr ip forward, ("from the driver"), depr ess the gea r sh ift pedal
abrupt ly, bu t avoiding an impact. The speed gear engaged, gradu-
ally let the gearshift pedal return to the middle posi·tion. To ensure
a smoot h return movement of the pedal , try to ret ain it w ith both
toe
and heel. In doing so, n ever a.Uempt to take your foot off the
gearshift pedal, as this wi ll caus e shocks in the motorcycle trans -
mission;
b) using the hand clutch lever. In this case disengage the clutch
before shifting gears and gradually release the c lu tc h l ever after
remov i ng the foot f rom the gears hift peda l as indicated in the Se-
ction "Driving Proced ur e";
c) disen gag i ng the clufch simultaneously by hand (using the
clutch lever) and foot, when shifting gears. Gradually rel ease ei-
the r the ha nd l eveT or pedal, which ever you choose;
