To discharge the accumulated oil, baff,Jed by the flywheel gland,
the crankcase is provided with oil-drain passage 1.
To prevent the oil leakage from the crankcase to the clutch, the
flywheel hub is fitted with a rubber gland; the breaker is protected
against oil contami nation by means of a rubber gland on the cam -
shaft.
The centrifuge is used as a s· econdary oil fil~er. Before reaching
the centrifuge, the oil is cleaned by passing only through the gauze
of the oil header. Aluminium body 8 (Fig. 11) and centrifuge cover
6
5
4
2
7
16

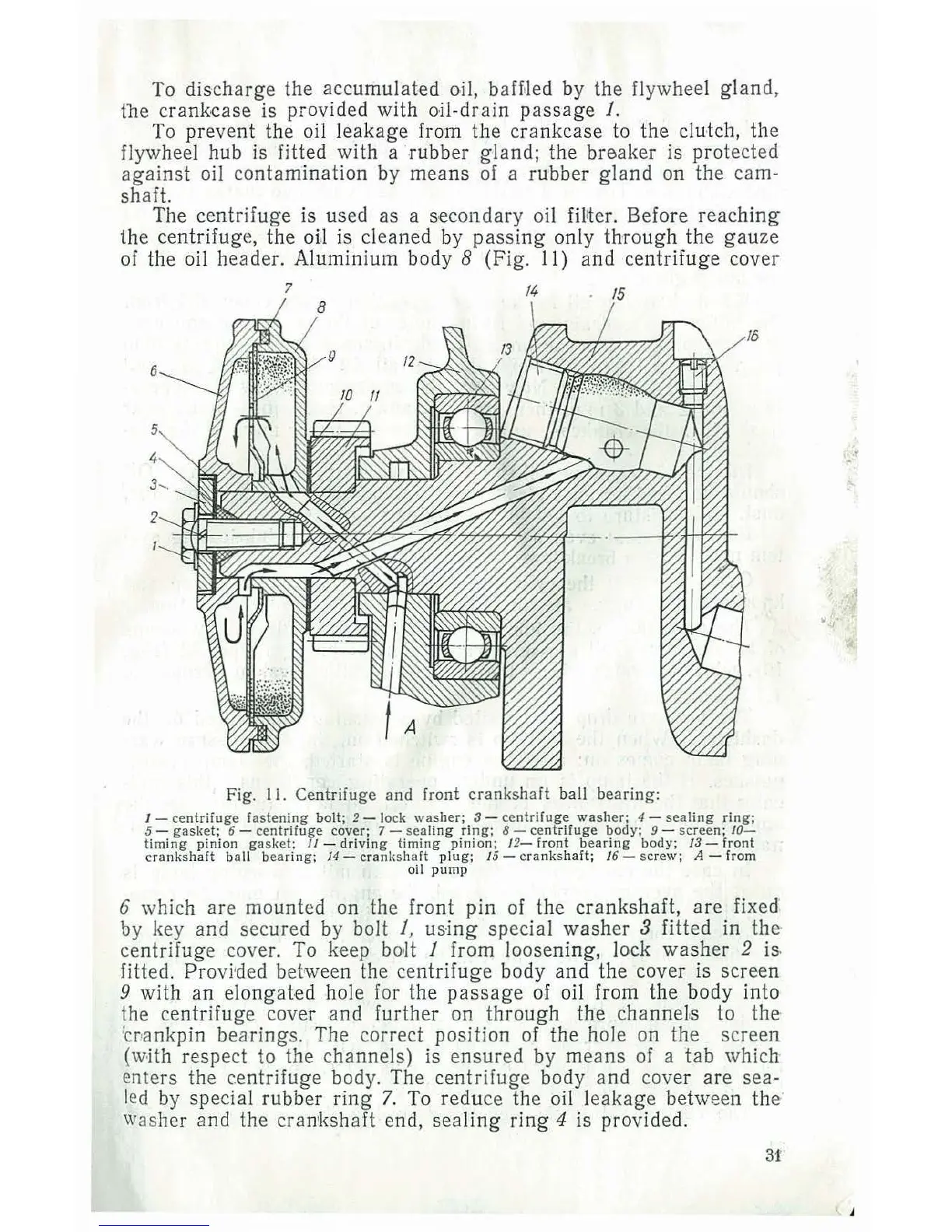

Fig. 11. Centrifuge and front crankshaft ball bearing:
1- ce ntrifug e fastening bolt; 2- Jo ck washer; 3- centrif uge wash er : 4- sealing ring;
5- gasket ; 6 - centrifuge cover; 7- seal ing ring; 8- centrifuge body; 9 - screen; /0-
timing pinion gasket; II- driving timing pinion; 12- front bearing body; /3- front
crankshaft ball bear i ng: 14- crankshaft plug; 15- crankshaft ; 16 - screw; A- from
o
il pump
6 which are mounted on the front pin of the crankshaft, are fixed
by key and secured by bolt 1, us·ing special washer 3 fitted in the
centrifuge cover. To keep bolt 1 from loosening, lock washer 2 is.
fitted. Provi 'ded between the centrifuge body and the cover is screen
9 with an elongated hole for the passag e of oil from the body into
the centrifuge cover and further on thro ugh the cha nnels to the
ha nkpin bearings. The correct position of the hole on the screen
(w-ith respect to the channels) is ensured by means of a tab which
ente rs the centrifuge body. The centrifuge body and cover are sea-
led by special rubber ring 7. To reduce the oil l eakage betw ee n the
washer and the crankshaft end, sealing ring 4 is provided.
