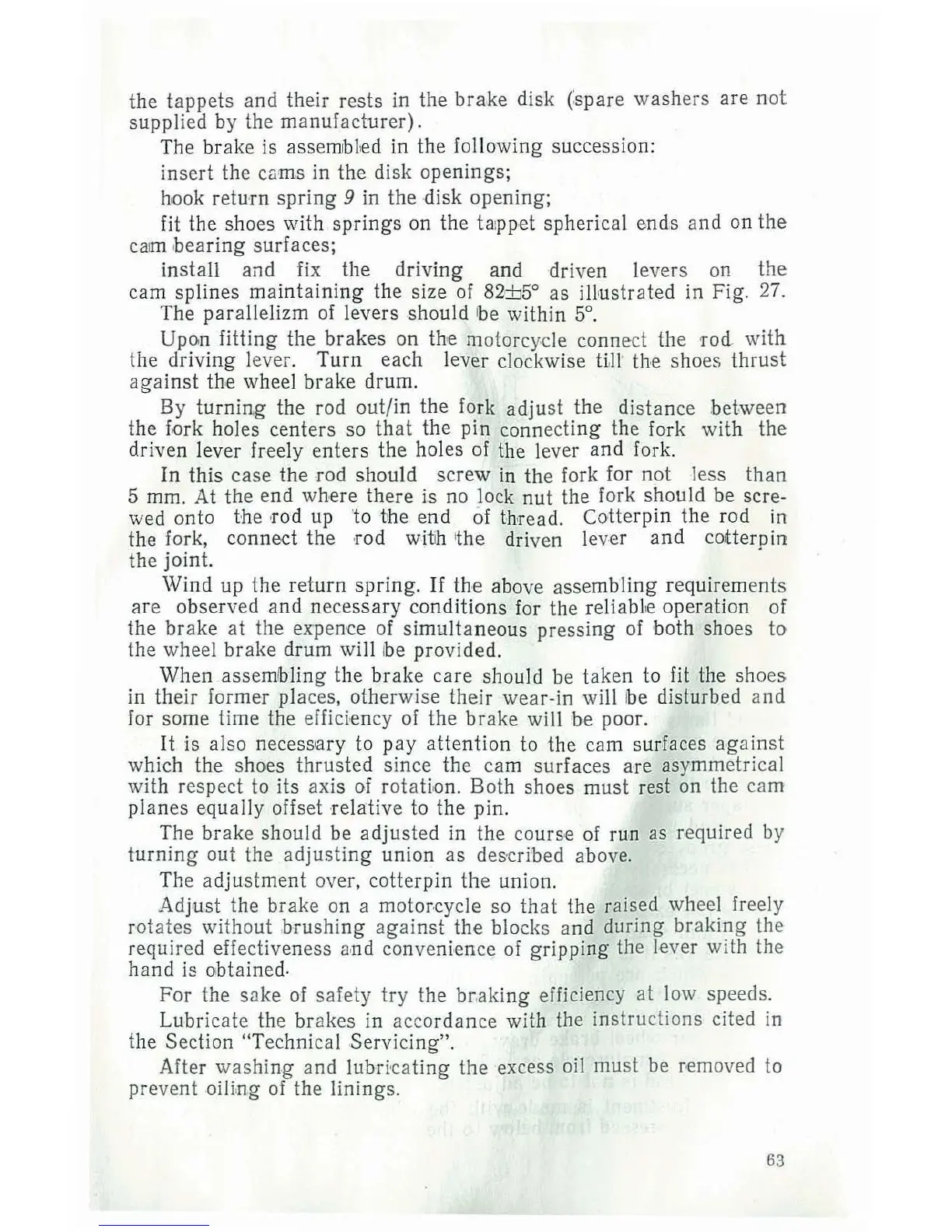

the
tappets
and
their
rests
in
the
brake
disk
(spare
washers
are
not
supplied
by
the manuf
acturer)
.
The
brake
is assembJ,
ed
in
the
following
succession:
ins
ert
the
c
<~
ms
in
the
disk
openings;
hook
return
spring
9
in
the
disk
opening;
fit
the
shoes
with
springs
on
the
ta
1
ppet
spherical
ends
and
on
the
caun
bearing
surfaces;
install
and
fix
the
driving
and
driven
levers
on
the
cam
splines
maintaining
the
size
of 82:b5°
as
illustrated
in
Fig
. 27.
The
parallelizm
of
levers
.
should
tbe
within
5°.
Upon
fitting
the
brakes
on
the
motorcycle connect
th
e
rod
wit
h
the
driving
lever.
Turn
each
lever clockwise
ti.U
the
shoes
thrust
aga
inst
the
wheel
brake
drum
.
By
turning
the
rod
out/in
the
fork
adjust
the
distan
ce
bet
-
ween
the
f.ork holes
centers
so
that
the
pin
connecting
the
fork
with
the
driven
lever freely
enters
the
holes of the le
ve
r
and
fork.
In
this
case
the
rod
should
screw
in
the
fo
rk
for
not
less
than
5 mm.
At
the
e
nd
w
here
there
is
no lock
nut
the fork
should
be
scre-
wed
onto
the
rod
up 'to
the
end
of thread.
Cotterpin
the
rod
in
the
fork,
connect
the
·
rod
with
if:
he dri
ve
n
lever
and
cotteroin
the
joint.
·
Wind
up
the
return
spring.
If
the
above
assembling
requireme
nt
s
are
observed
and
necessary
conditions
for
the
reliabl
e
operation
of
the
brake
at
the
expence of
simultaneous
pressing
of
both
shoes
to
the
wheel
br
ake
drum
wil1 1
be
pr
ovi
ded
.
When
assemlbling
the
brake
ca
re
should
be
taken
to
fit the
sho
es
in
their
former places,
otherwise
their
wear-in
will
lbe
disturbed a
nd
for
some
time
the
effici·ency of
the
br
ake
will
be
poor.
It
is
also
necessary
to
pay
a
tte
ntion
to
the
cam surfaces a.
gainst
which
the
shoes
thrusted
since
the
ca
m
su
rf aces
are
asymmetrical
with
respect to
its
axis
of
ro
tati<o
n.
Both
shoes
must
rest
on
the
cam
planes
equally
offset ·
relative
to
the
pin.
The
brake
should
be
adjusted
in
the
course
of
run as required by
turning
out
the
adjustin
g
union
as
desuibed
above.
The
ad
ju
stme
nt over,
cotterpin
the
union
.
Adjust
the
brake
on a mo
tor
.cycle
so
th
at
the
raised wheel freely
rot
at
es
wit
h
out
brushing
against
the
blocks
an
d
during
braking
the
required
effectiveness
an
d conven
ien
ce
of
gripping
the
lever
with the
hand
is
obtained
.
For
the
sake
of
safety
try
the
braking
efficiency at low speeds.
Lubricate
the
br
akes
in
accordance
with
the
instru
ctio
ns
cited in
t
he
Section
"T
echnical
Servicing"
.
After
washi
ng
and
lubri
·
cat
ing
the
excess oil
mu
st
be
removed to
prevent
oiling
of the lini
ngs.
