turn lever 10 (F ig . 29) towar ds r od 8 and remove nut 11 from the
l ever ;
lby screwing nut 11 on or off draw rod 8 ensure that the clearan -
ce between nut 11 and pin 9 of th e lever is within 0.5-1 mm. The
threaded part of the dnaw r od must not be . sunk in the nu t; if neces-
sary, rele ase the check nut of the forked end piece and set the .requi-

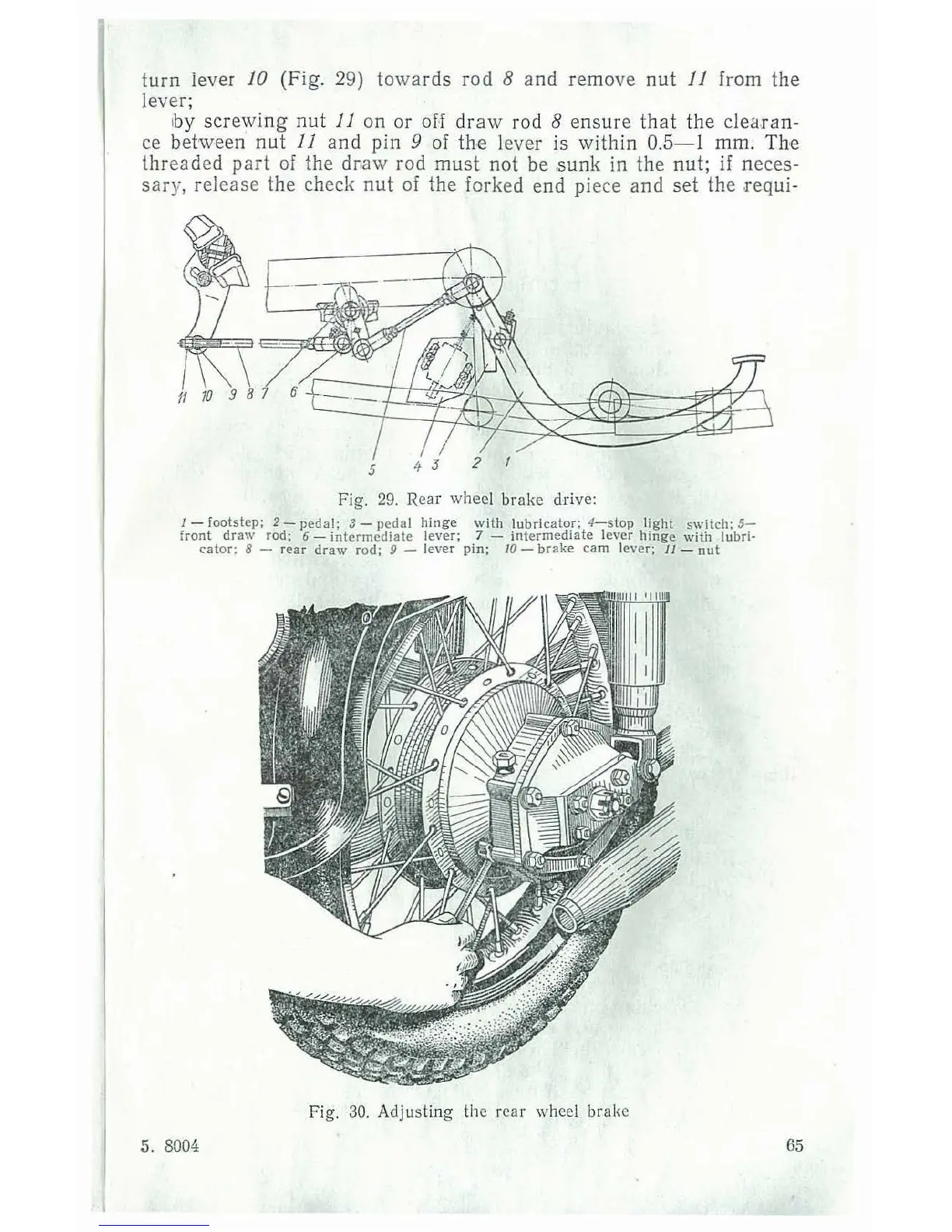

Fig. 29. Rear wheel br ake drive:
I - footstep; 2- pedal; 3 - pedal hinge with lubricator; 4- stop light switch: 5-
iront draw rod; 5- intermediate lever; 7 - intermedoate lever hinge with tubri·
cator: 8 - rear draw rod; 9 - lever pin ; 10- brake cam lever; lJ- nut
