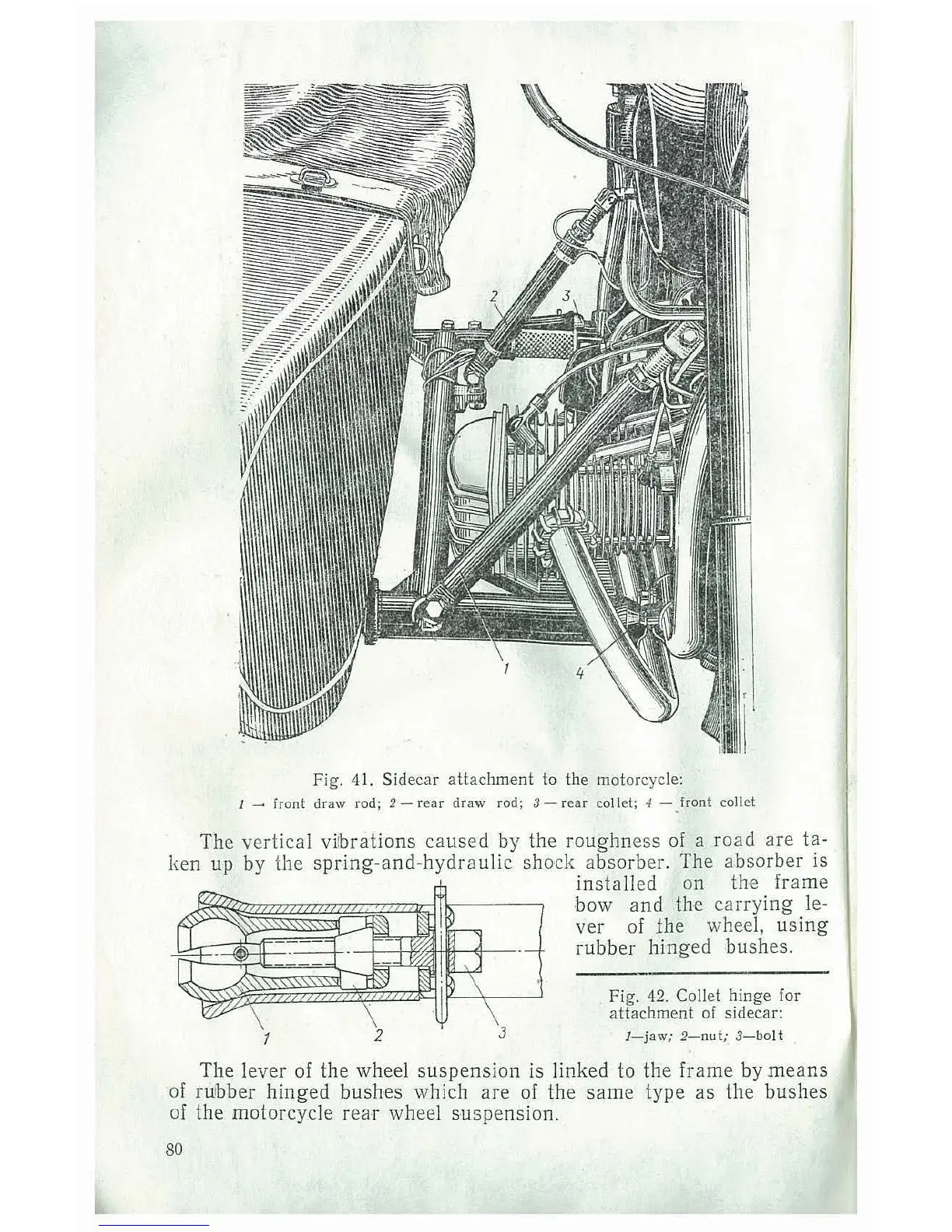

Fig. 41. Sidecar attachment to the motorcycle:
1 - front draw rod; 2 - re ar draw rod; 3- rear collet; 4 - . front collet
The vertical vi l brations caused by the roughness of a road are ta -
ken up by t he spring-and-hydraulic sh ock absorber. The absorber is
installed on the frame
- bow and the ca rrying le-
ver of fhe wheel, using
ru bb er hinged bushes .
Fig. 42. Collet hinge for
a
ttachment of sidecar:
/-jaw; 2-nut; 3-bolt
The lever of the wheel suspension is linked to the frame by means
of n.tlbber hinged bushes which are of the same type as the bushes
of the motorcycle rea-r wheel suspension .
