For different applications, the corresponding value of 100.0% high speed pulse
output is different. For details, please refer to description of each application.
10V(20mA)/50.00KHz
0
100.0%

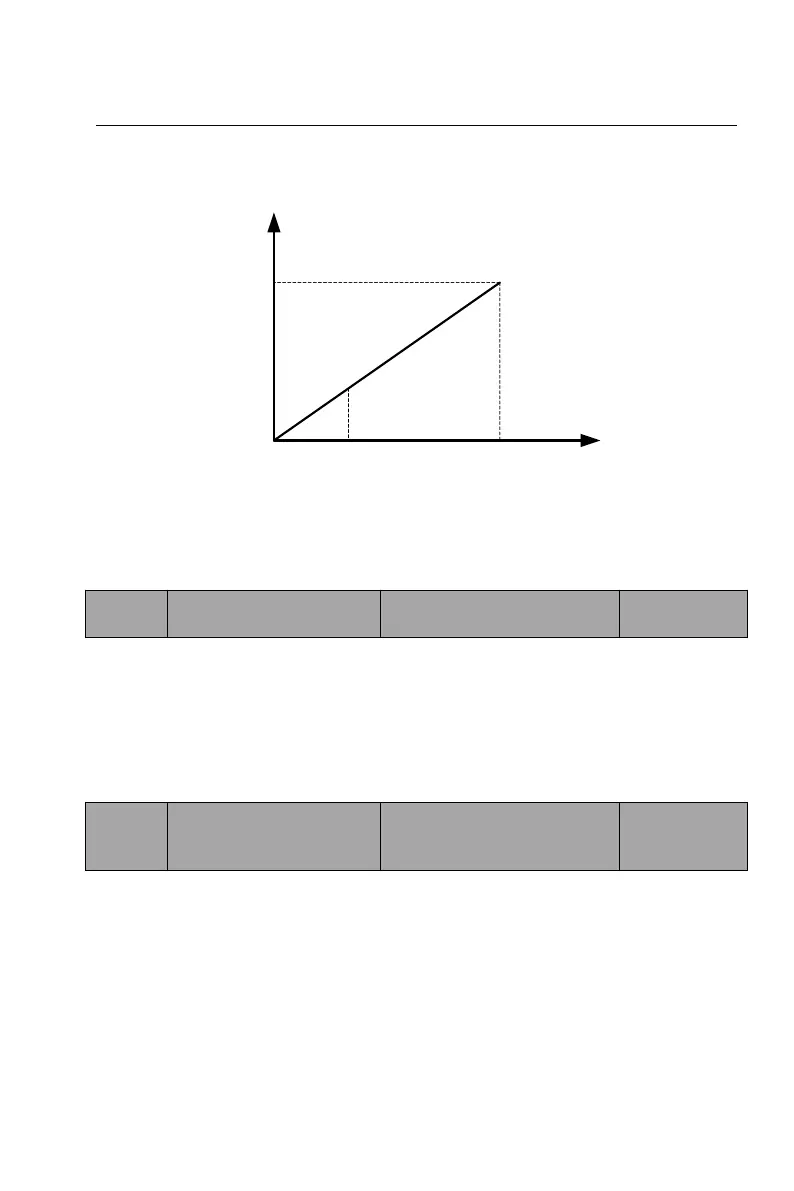

Figure 6-12 Relationship between HDO and corresponding setting
6.9 Fault and protection (F08 group)
F08.00
Motor overload
protection
Setting range: 0～2
Default
value: 0
0: No protection
1: ordinary motor (with low speed compensation): the cooling effect of ordinary
motor at low speed is bad; compared with the variable frequency motor, its
current overload protection time should be shortened.
2: variable frequency motor (without low speed compensation): the cooling effect
has nothing to do with the running frequency.
F08.01
Motor overload
protection factor
Setting range: 20.0 ～
120.0%
Default
value:
100.0%
Refer to the motor rated current. Set the allowable maximum load current.
Maximum load current = F08.01 * motor rated current
