CT100 series inverters Keypad operation procedure
47
4 Keypad operation procedure
4.1 Keypad
The keypad consists of three parts for unit/status LEDs displaying, parameters
displaying and key operation, as shown below.

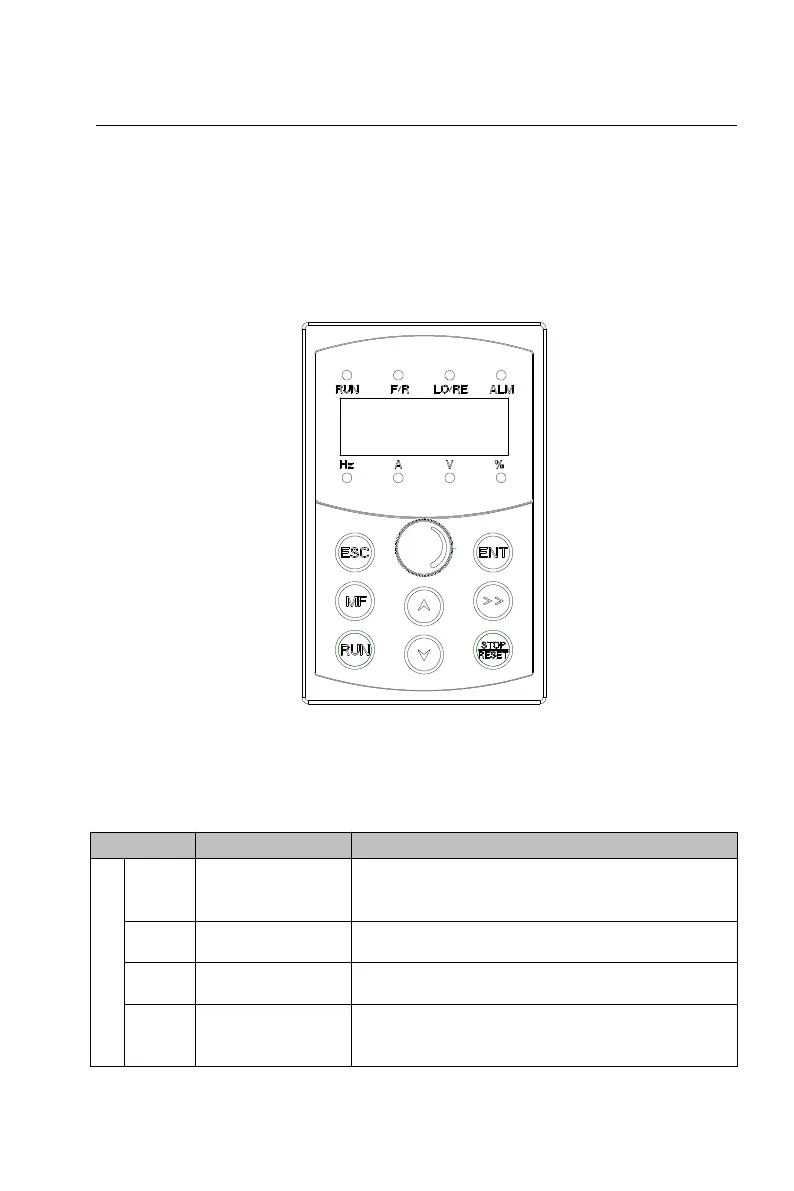

Figure 4-1 Keypad
4.1.1 Unit and status LEDs
Table 4-1 Unit and status LEDs
Symbol
Name
meaning
Unit LEDs
Hz
Frequency LED
The unit of the current displayed parameter is
Hz.
A
Current LED
The unit of the current displayed parameter is A.
V
Voltage LED
The unit of the current displayed parameter is V.
%
Percentage LED
The current displayed parameter is a
percentage.
