Dormakaba ED900 - Install Spindle Caps

85
ED900 02-202008125330
dormakaba ED900 Installation Instructions – Double egress door Chapter 28

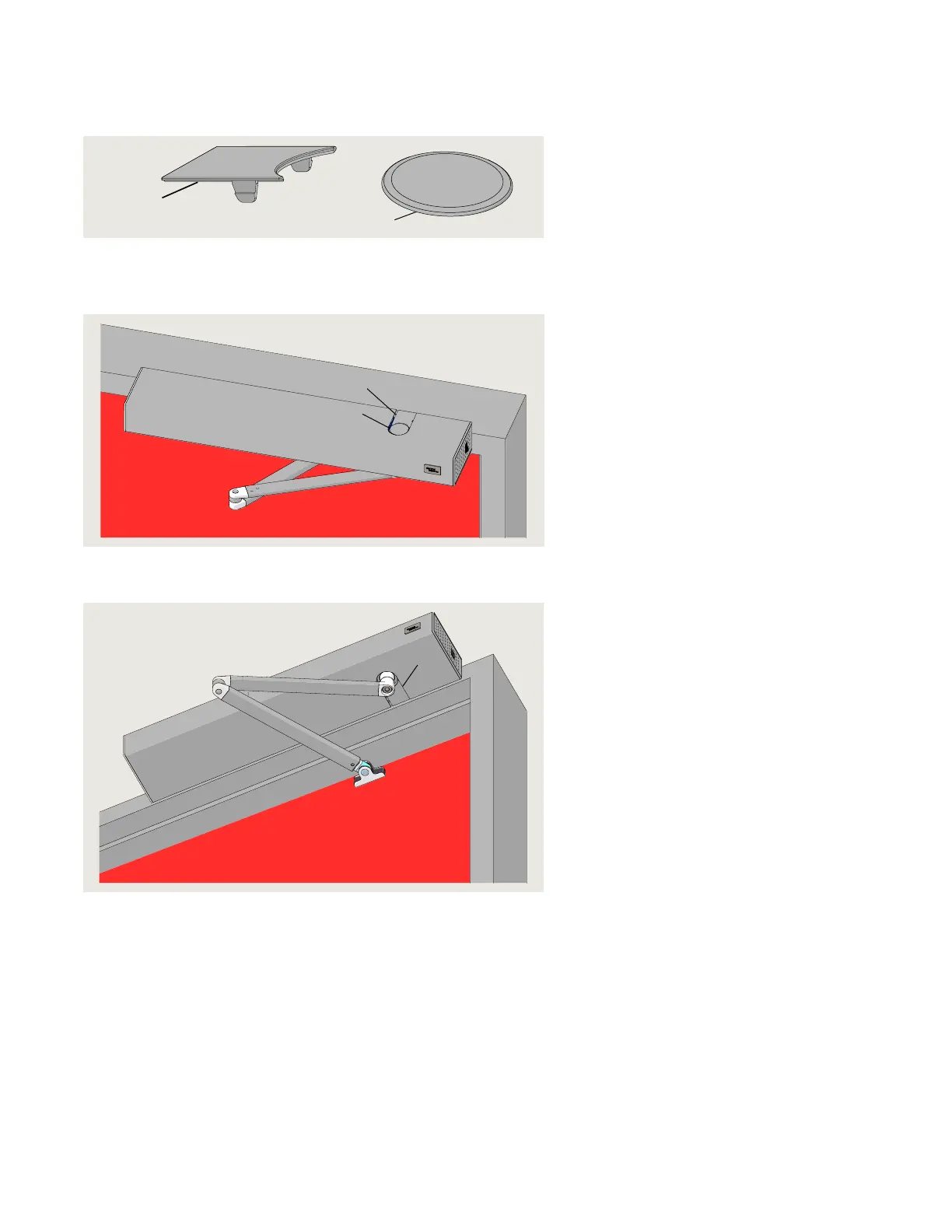

Fig. 28.2.1 Spindle caps
4
5
4 Spindle cap
5 Spindle cap
.. Install spindle caps.
. Install spindle caps on ED cover.
Fig. 28.2.2 Spindle cap installation, ED900 cover top
Fig. 28.2.3 Spindle cap installation, ED900 cover bottom
. Install spindle caps
4
5
4 Spindle cap
4
4 Spindle cap
5 Spindle cap
