11
AC Power
The Xplorer can be operated from a 50/60 Hz,
Source 120/240V AC power source with or without the battery
pack installed.
• Voltage range, 120/240V AC
• Frequency, 50/60 Hz
• Power consumption, 20W
STEP 1 Connect the AC adapter/battery charger plug into the left
side of the instrument.
STEP 2 Plug the AC adapter into an AC power source.
STEP 3 Press the momentary On/Off power switch to turn the
instrument on.
Result
: The Dranetz logo will be displayed while the
instrument is booting.
STEP 4 The instrument completes the power on sequence. If the
instrument was shut down while monitoring, the
instrument will resume monitoring upon power up.
Result: Upon start-up, the Home screen serves as the
access point for major instrument control functionalities.

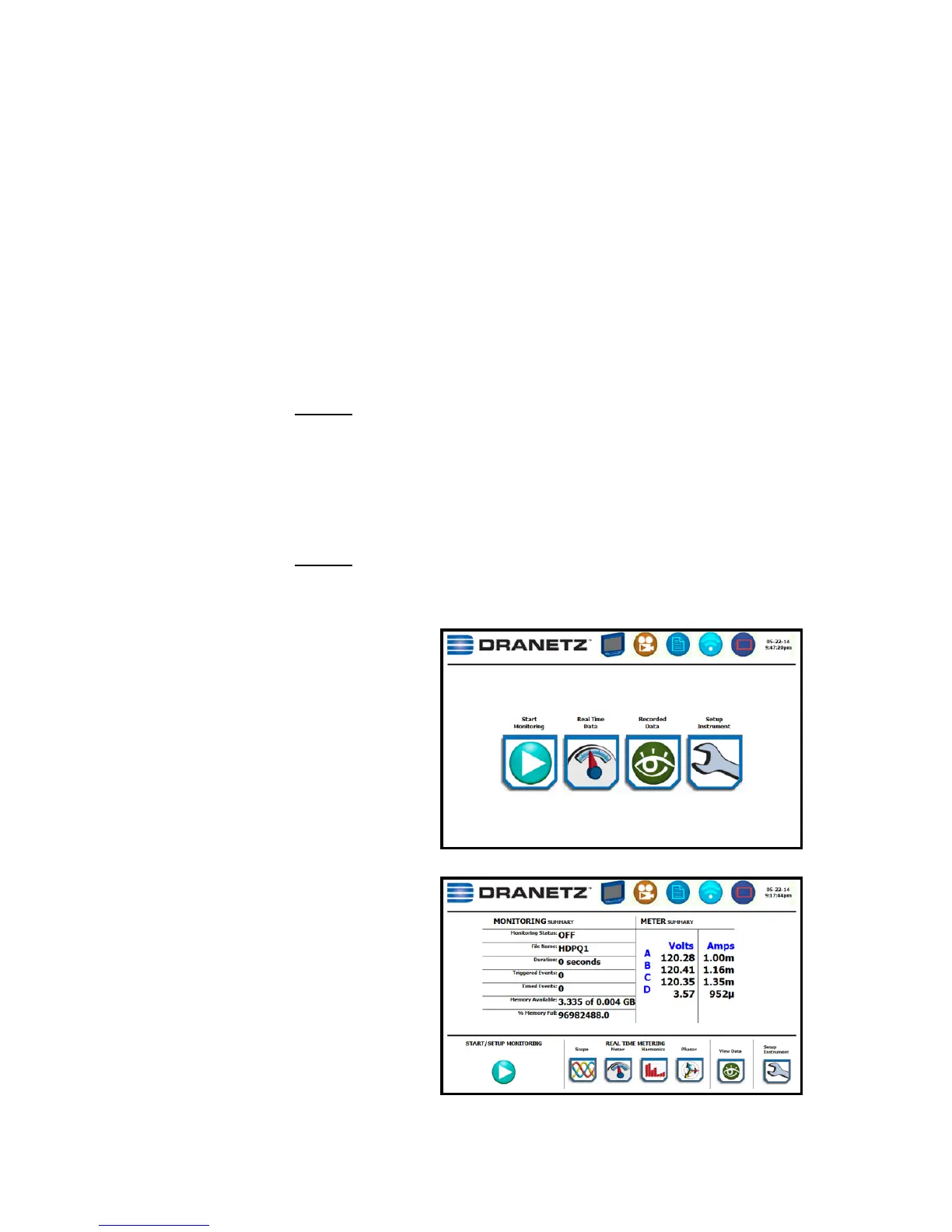

Home Screen: The Home screen
displays large shortcut buttons to
include Start Monitoring, Real
Time Data, Recorded Data and
Instrument Setup. Repeated
pressing of the Dranetz logo
alternates between the Home
screen and the Home Monitoring
screen.
Home Monitoring Screen: After
the instrument has been powered
up and monitoring is turned ON,
the Home Monitoring screen
becomes the start-up page. This
is the screen from which all other
functions launch and eventually
return back to using the Exit
function key.
