REPORTS
You have the option to view and set up data via the Voltage Compliance
Report, Energy/Demand Audit Report, Harmonics Statistics Report or the
Mini-Report Viewer. Each report has their own method of presenting
compliance data, as well as differs on the length of evaluation period to
monitor compliance.
Voltage Compliance Report

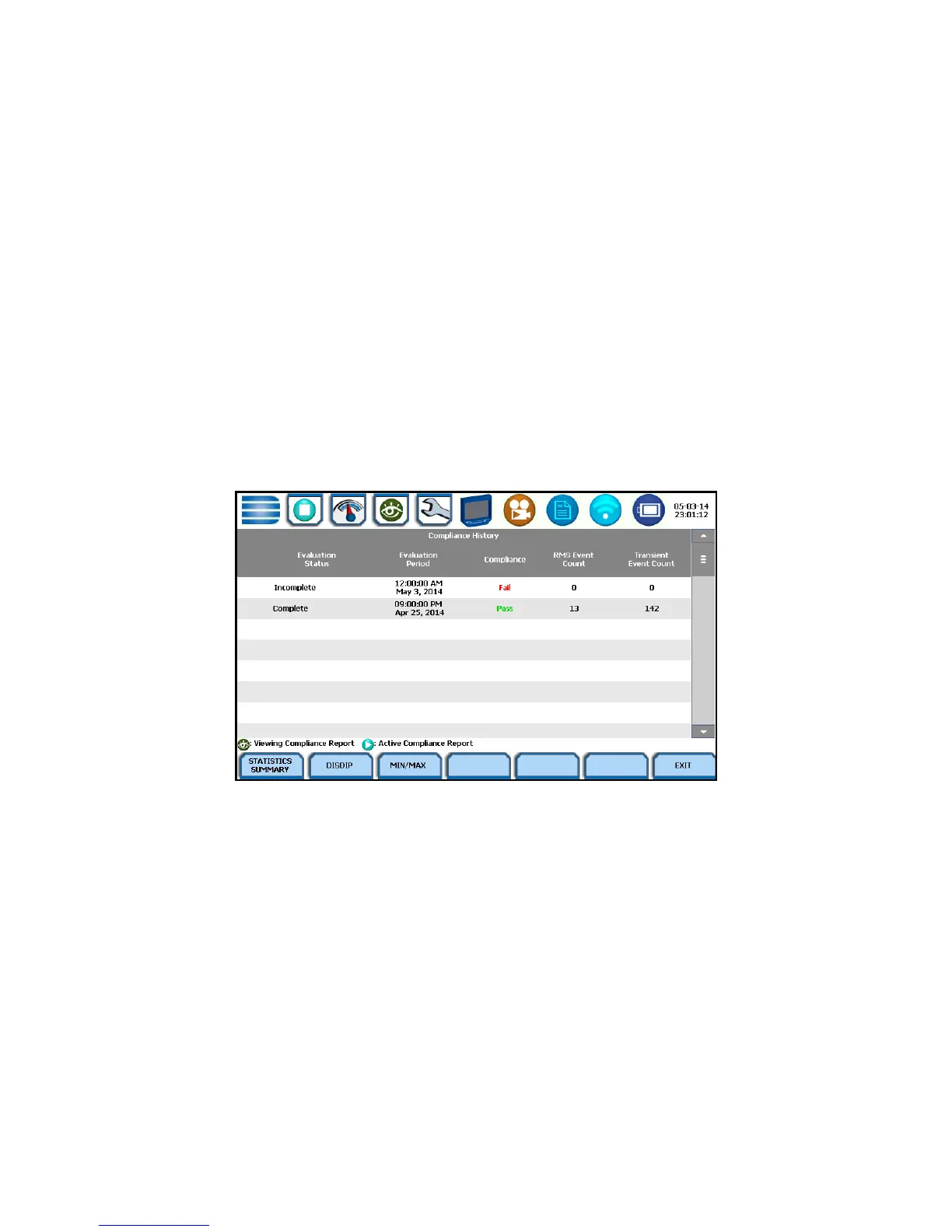

Voltage Compliance Report appears in the form of a table called
Compliance History. Compliance History displays a summary of the QOS
evaluation status. The Voltage (QOS) functionality is equipped with
monitoring and setup protocols to meet the measurements required for
EN50160 monitoring. EN50160 is a European standard that stipulates
the voltage characteristics that can be expected in public distribution
networks. EN50160 specifies that various parameters must be within a
specified percentage for 95% of the standard one week monitoring
period.
Use the respective functions keys – Statistics Summary, DISDIP,
Min/Max - to view the voltage compliance summary, the magnitude and
duration distribution table (DISDIP), and the min/max values for Power
Frequency and RMS Voltage during monitoring interval.
Statistics Summary
Voltage Compliance Summary appears in the form of a statistical bar
chart featuring the seven parameters required for determining QOS
compliance. The color of the bar indicates compliance status. A green
bar indicates that the parameter is within compliance. A red bar indicates
that the parameter does not comply with the QOS limits. Each
measurement parameter is discussed in the following pages.
