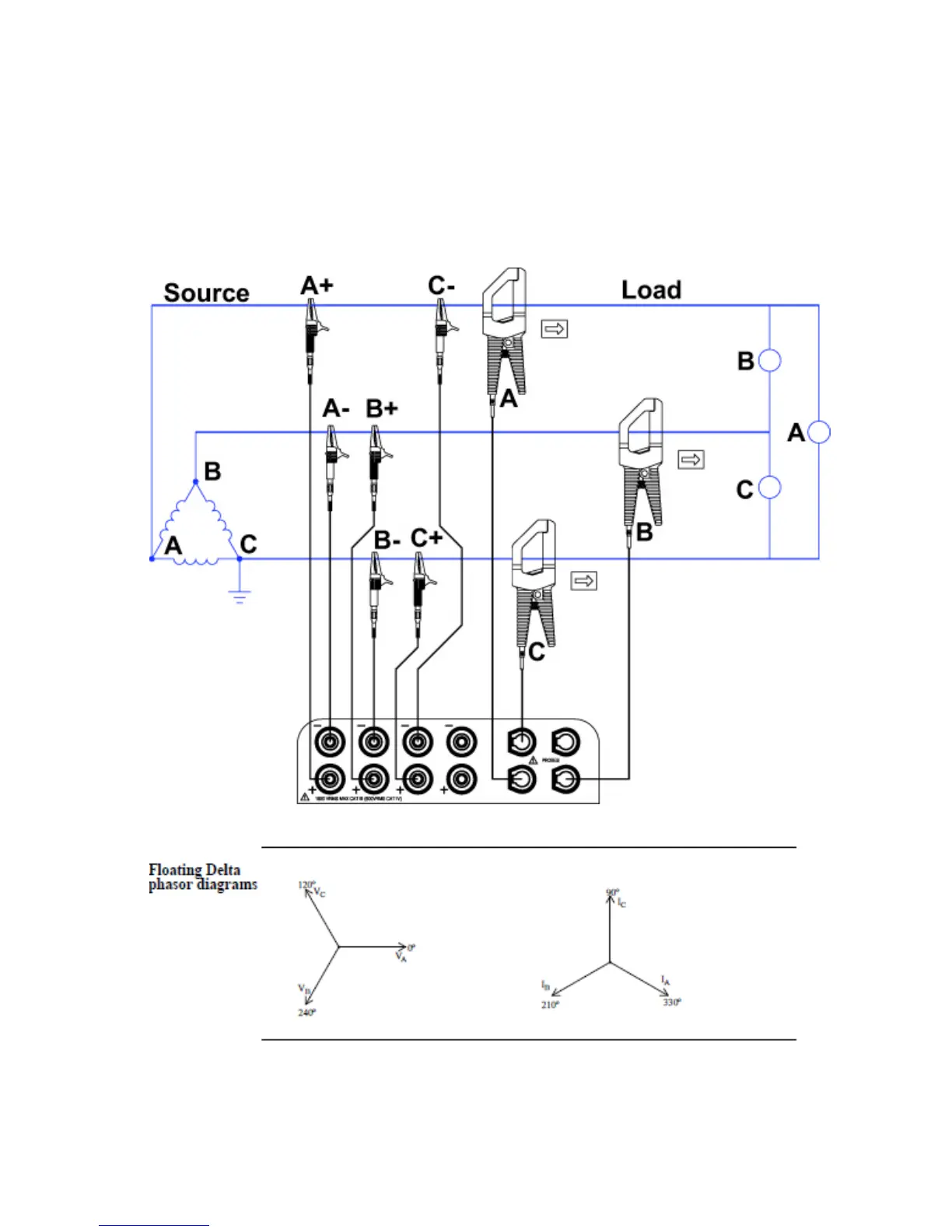

3 Phase (Floating or Grounded) Delta
In this power connection, the Xplorer uses voltage channels A,
B, and C as differential inputs with channel A using source
voltage A-B, channel B using B-C, and channel C using C-A as
the reference. Current probes are connected to channels A, B,
and C. Neutral to ground measurements are important, but
optional.
