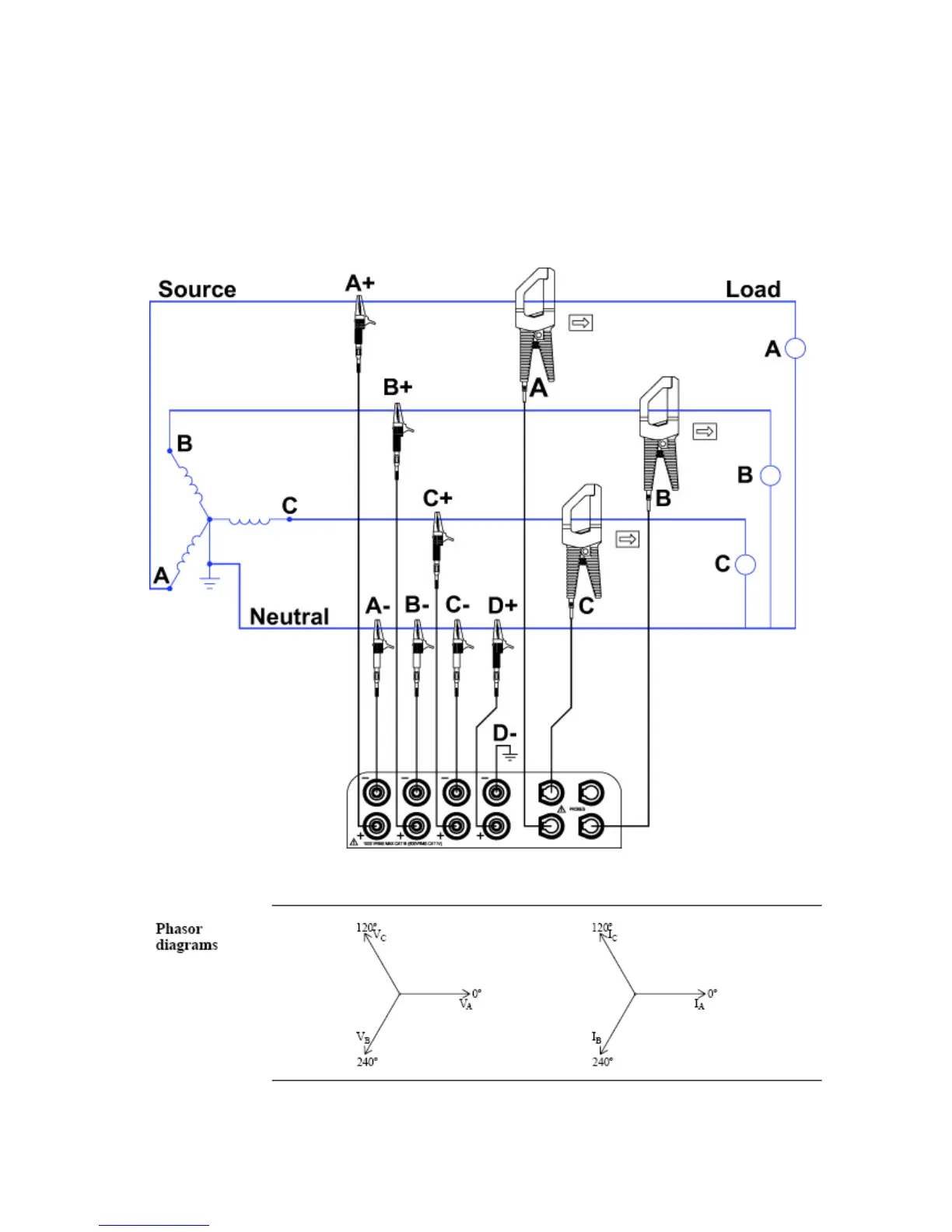

3 Phase, Four Wire Wye
Channels A, B, and C are connected to voltage and current
probes. The neutral is connected to common, and is the
reference for the three channels. The figure also shows voltage
connection using channel D as a differential input for measuring
neutral to ground voltage. Neutral to ground measurements are
important, but optional.
