WARNING: To avoid the risk of electric shock or burns, always
connect the safety (or earth) ground before making any other
connections.
WARNING: To reduce the risk of fire, electrical shock, or physical
injury, it is strongly recommended to fuse the voltage measurement
inputs. Fuses must be located as close to circuit connection as
possible to maximize protection.
WARNING: For continued protection against risk of fire or shock
hazard, replace only with same type and rating of recommended
fuse.
WARNING: Do not replace fuse again if failure is repeated.
Repeated failure indicates a defective condition that will not clear
with replacement of the fuse. Refer condition to a qualified
technician.
---------------------------------------------------------------------------------
The Xplorer can monitor the following power configurations:
Single Phase
Split Phase
3 Phase, Four Wire Wye
3 Phase (Floating or Grounded) Delta
3 Phase 2-Watt Delta
Generic Circuit
2 ½ Element without Vb
2 ½ Element without Vc
3 Phase, Four Wire Wye and 3 Phase (Floating or Grounded) Delta are
described in this Quick Reference Guide. For other configurations,
please refer to the complete User Guide, UG-HDPQ.

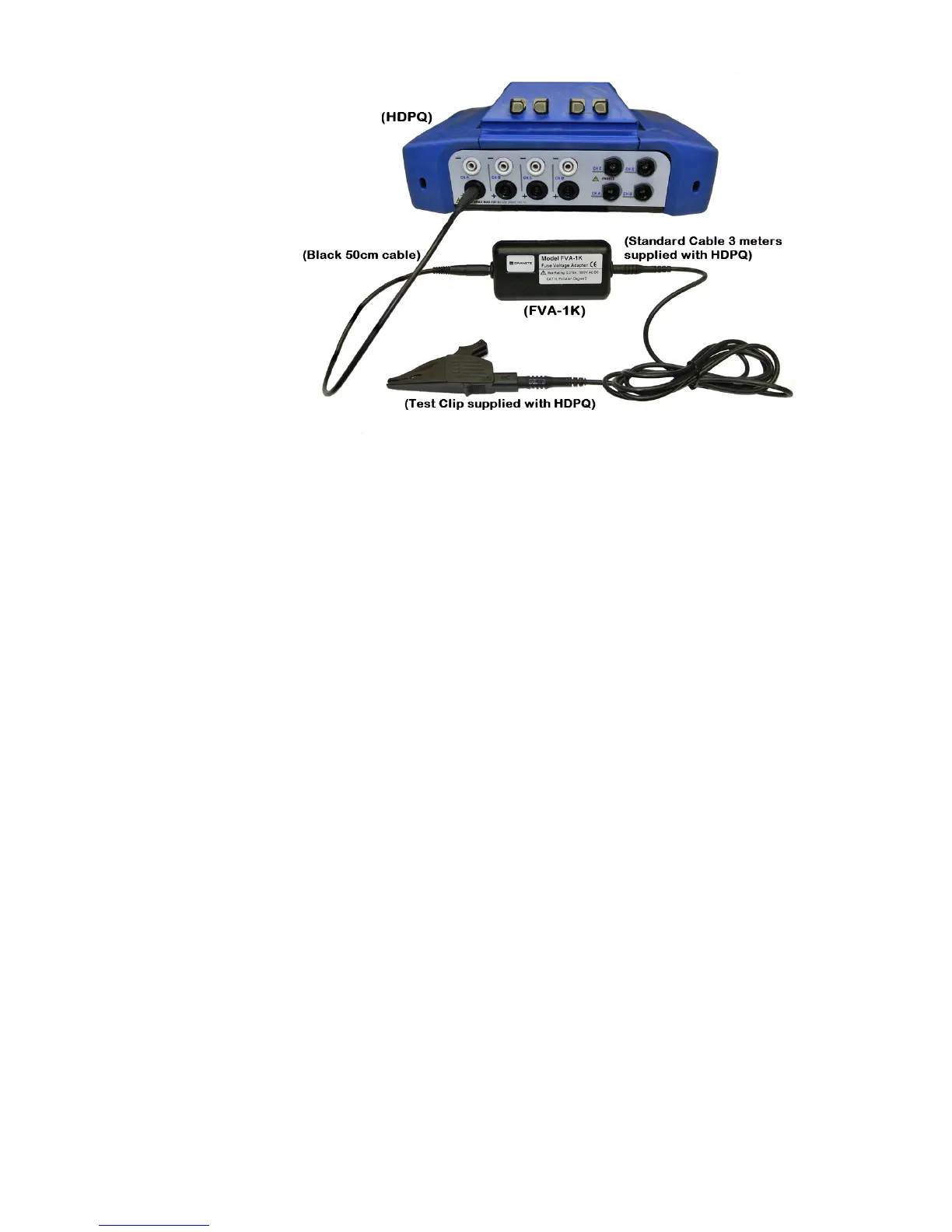

Measurement Cable
with Optional Fused
Voltage Adapter
