58

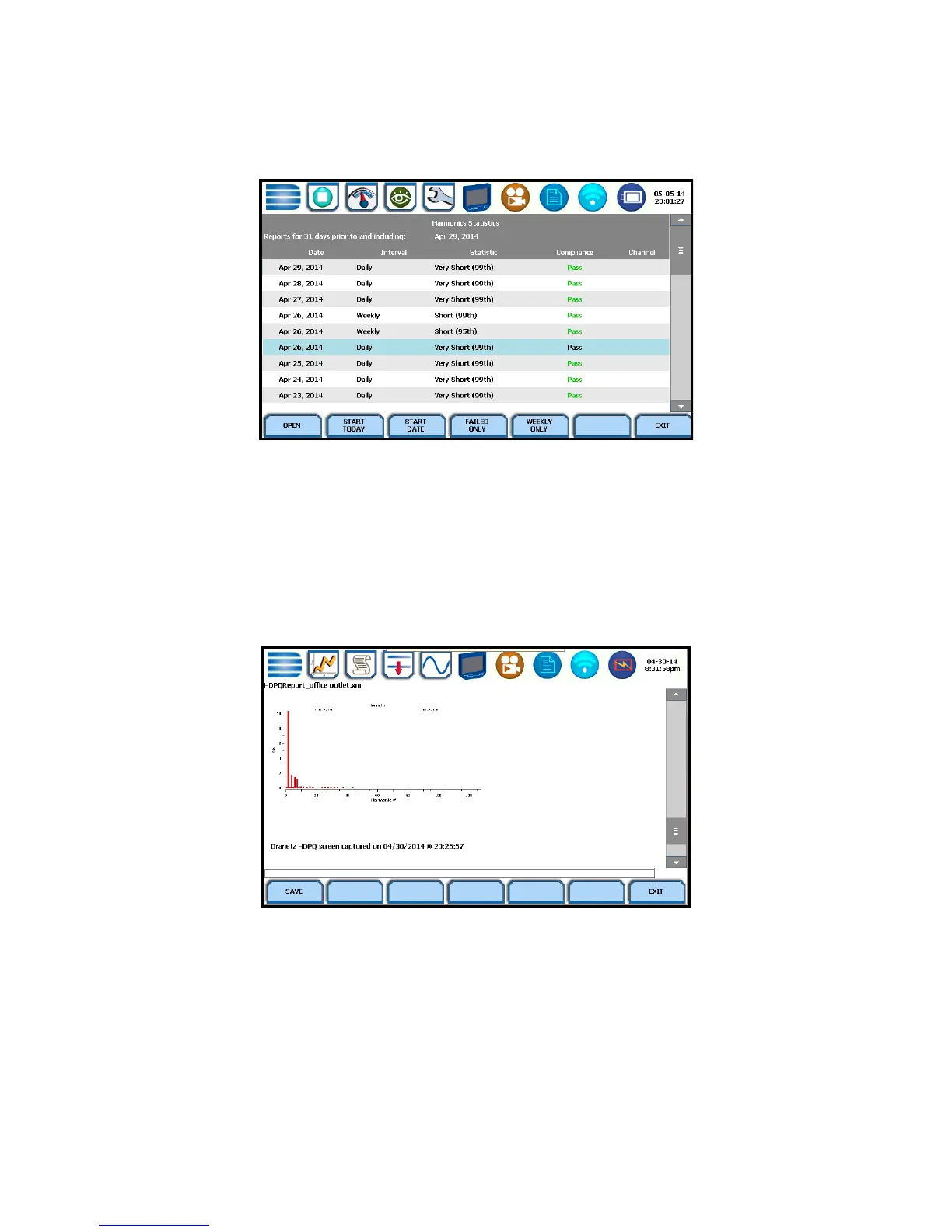

Harmonics Statistics Report
Harmonics Statistics Report allows you to set up a harmonic statistics
report, based on the 3-second data calculating the 95 and 99% values
per IEC 61000-4-7 and IEEE 519.
Use the function keys at the bottom of the screen – Open, Start Today,
Start Date, Failed Only, Weekly Only - to set up the report.
Mini-Report Viewer
The Mini-Report Viewer brings up the list of active or previously saved
mini-report(s) available. Select the report that you want to view or save to
an external USB flash drive.
Use the Open key to view the report to the full size of the LCD display,
with the taskbar on top remaining active and viewable. The viewer opens
the file in .rtf format, with read only function, and editing not enabled.
The Delete All key clears all active or previously saved mini-reports on
the list. This will remove the mini-report files from memory.
The Copy to USB key allows you to save the report file - with the text and
image, if any. Graphics are saved as an image in .bmp format, while
alphanumeric content is saved as a text (.txt) file.
