12

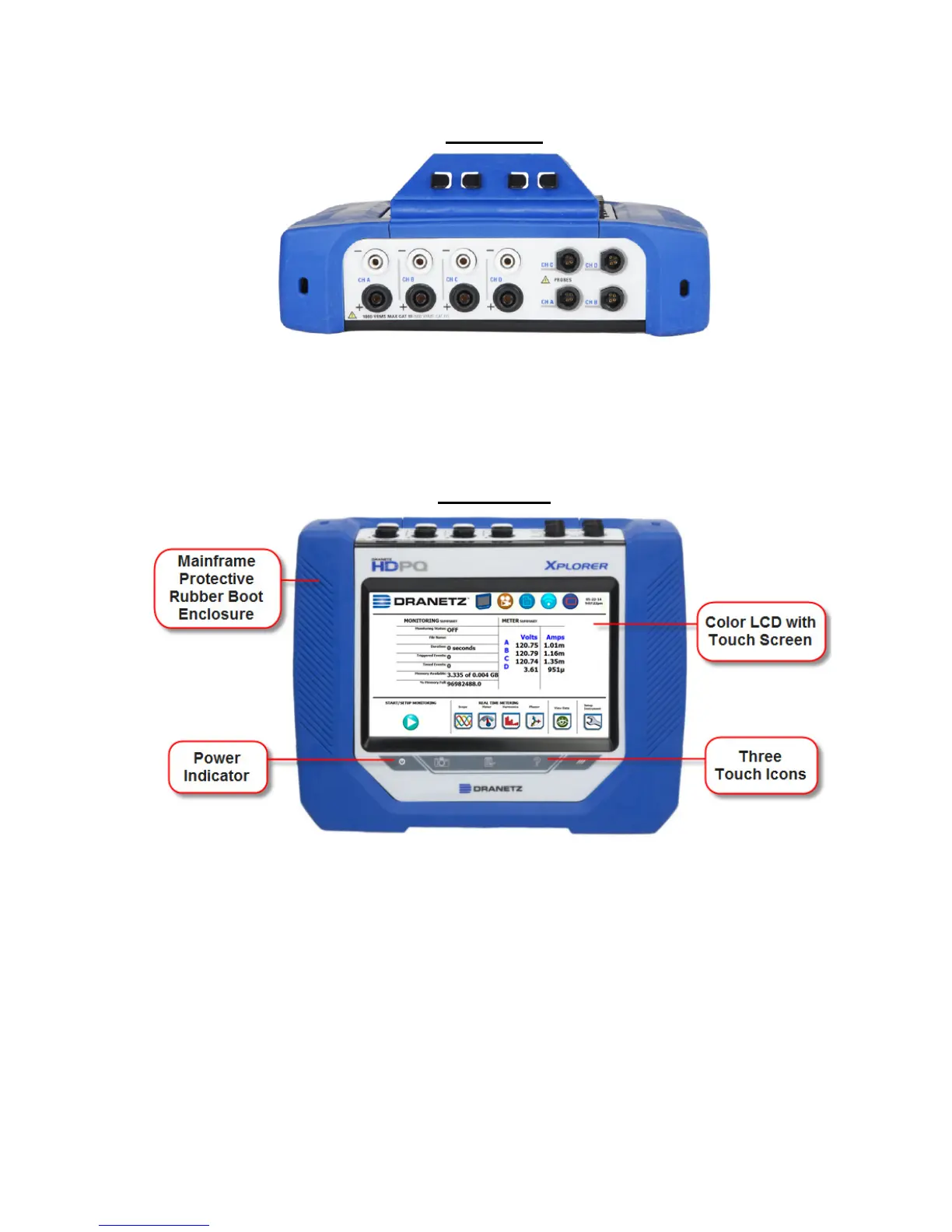

Controls, Indicators and Connectors
Top View
Voltage and Current Connections - There are four differential voltage
and four differential current channels, which can be wired to measure a
variety of circuit configurations. Use only Dranetz voltage leads and
current probes for proper operation. Do not exceed the marked
maximum ratings.
Front View
Color LCD with Touch Screen – the color LCD has an integral touch
screen that is used to select functions for setups, real time meters, and
viewing stored data. The color LCD touch screen is operable using the
finger and/or a stylus. The touch screen display permits menu selection
and alphanumeric data entry. Clean only with a soft cloth.
Power Indicator - LED will light steadily when the instrument is
operating normally.
Three Button Icons - used to perform various functions i.e. take a
Snapshot of the active screen, capture Mini-Reports and access Help
screens. These buttons cannot be activated with gloves on, as they
employ capacitive or touch technology.
